Allen & Heath | DT20 Dante Output Interface for DLive / Avantis / SQ Mixers

DT20 Dante input interface

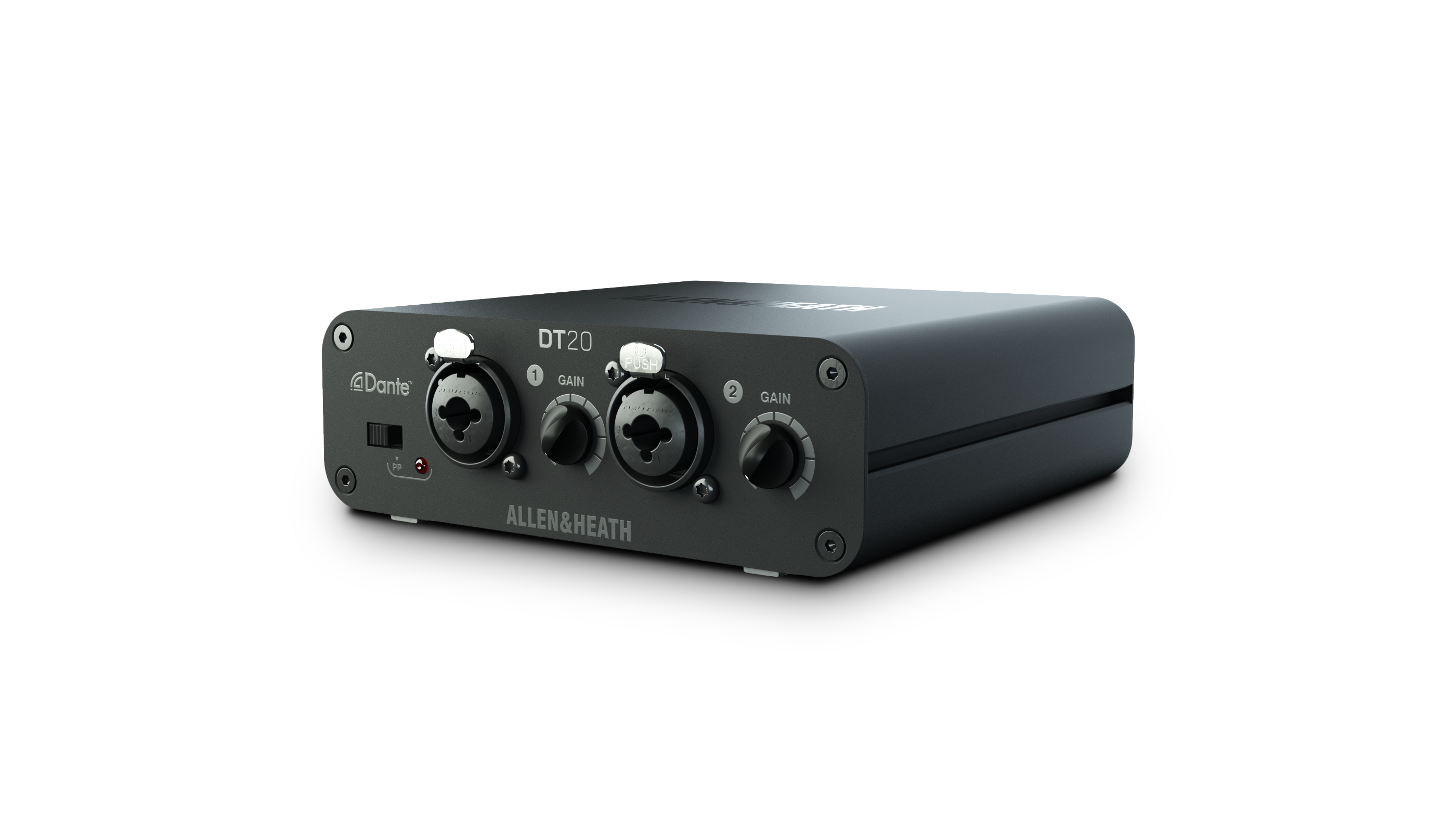

The compact and portable DT20 converts two analogue inputs, via combo XLR-Jack, to two channels of Dante audio, enabling hassle-free connection of analogue sources to a Dante network for install and live applications.

Dante Input Interface – 2 IN

DT20 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs wherever you need to get analogue audio into a Dante network.

Ideal for both fixed installation and AV hire / live applications, DT20 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems.

Thanks to its compact format, DT20 can be easily mounted under a table, podium etc. for local mic connection – or rack-mounted wherever required – on stage, or at FoH.

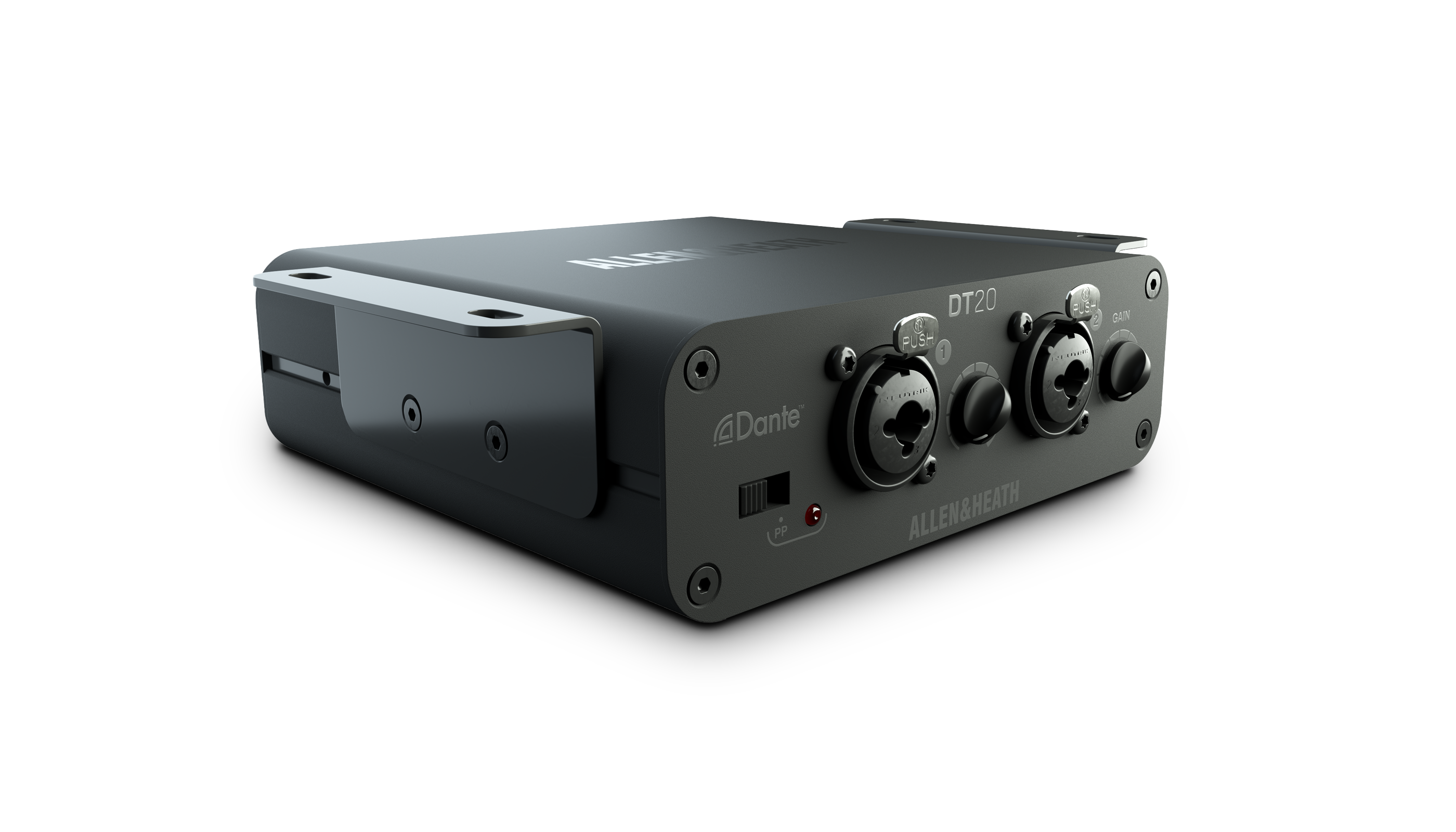

The unit can be PoE powered or powered via a DC 12V supply. Two versions are available: the standard DT20 with power supply and rubber feet, or the DT20-M which includes surface mounting ears (and no power supply).

Features

• Dante input interface, 48kHz/96kHz
• 2x combi mic/line inputs
• Local gain control
• 48V phantom power with LED indicator

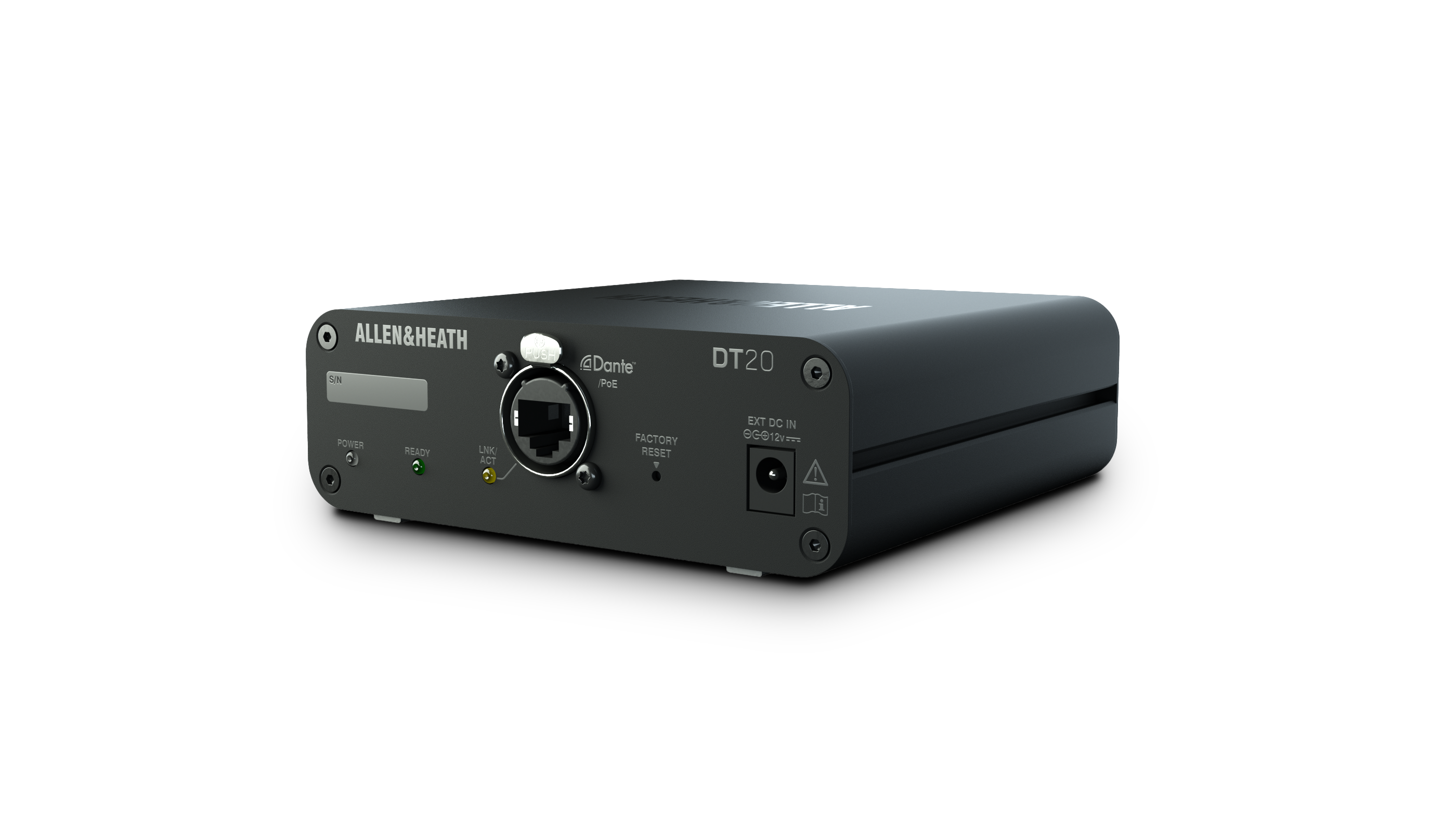

• PoE powered or DC 12V
• EtherCon connector
• Rugged aluminium box
• Optional ears for surface mounting (included in DT20-M version)

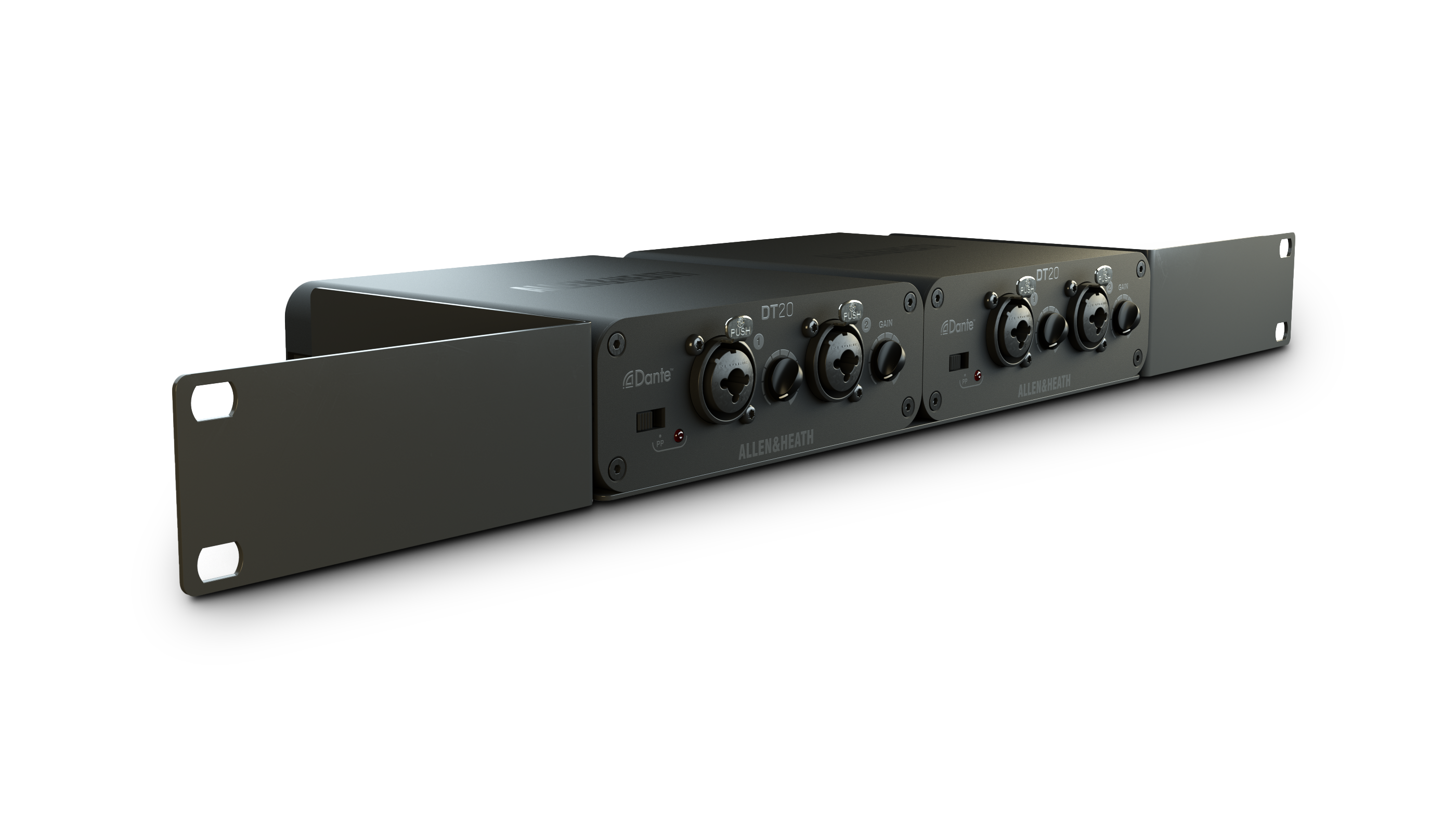

• Optional rack mounting kit DT-RK19
