Symphony I/O Mk II is a multi-channel audio interface featuring Apogee’s flagship AD/DA conversion, modular, configurable I/O (up to 32 inputs and outputs), intuitive touchscreen display and optional world-class microphone preamps. Designed to deliver professional sound quality for audio recording, mixing and mastering, Symphony I/O Mk II is the ultimate music production centerpiece for any modern studio. And now, with the Apogee Symphony I/O Mk II Dante option card and a simple ethernet cable, Symphony I/O Mk II can be easily connected and shared across post production, broadcast, live sound or recording studio networks, unleashing legendary sound quality on the world’s most popular audio-over-IP solution. The Symphony I/O Mk II Dante option card also includes Pro Tools connectivity for integration of Pro Tools | HD systems into a Dante network environment. No other Dante-enabled audio interface offers this level of quality, flexibility and modularity.

Highlights

Ultimate Sound Quality – Features Apogee’s Flagship AD/DA conversion and optional mic preamps I/O Flexibility – Up to 32 channels of analog inputs and outputs per unit with optional 8 mic preamp module

Pro Tools HD Peripheral Port – Up to 32 bidirectional channels up to 192kHz. Route Symphony I/O module inputs or Dante Rx to Pro Tools inputs by blocks of 8 channels. Pro Tools HD outputs are routed to Dante Tx and I/O module outputs

Interoperable networking technology – Works seamlessly with any other Dante-powered device

Up to 32 bidirectional channels at 96kHz – 16 bi-directional channels at 192kHz

Apogee Network Control software – Remote control of Symphony I/O settings, including mic pre (if installed), calibration and monitor controls – for macOS and Windows 10

The Symphony I/O Mk II Dante option card uses Audinate’s Brooklyn II module which features plug-and-play media networking for up to 32 bidirectional channels at 96kHz and 16 bidirectional channels up to 192k. The system can be configured with a number of custom options ranging from 8-32 analog I/O channels. Symphony I/O MK II Dante allows up to 32 channels with ProTools and redundant Dante connectivity to be fitted into a single two space rack device providing the smallest footprint available with this feature set.

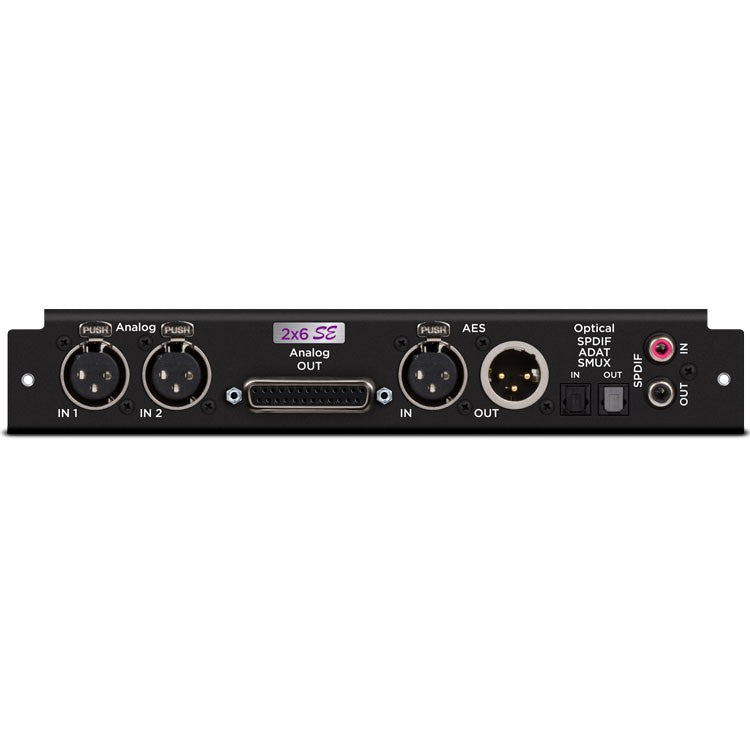

2x6 Analog I/O + 8x8 Optical + AES I/O

2×6 SE offers the highest quality AD/DA conversion of the Symphony series

Apogee Symphony I/O Mk II 2×6 Special Edition offers the highest quality AD/DA conversion of the Symphony series. Designed specifically for mastering engineers whose critical work demands ultimate sonic performance, 2×6 SE takes advantage of the latest advancements in digital and analog audio technology to offer inputs with 124 dB (A) of dynamic range, THD+N of -116dB and outputs with 131dB (A) dynamic range and an astonishingly low THD+N of -118dB. We dare you to compare these specifications to our competitors – 2×6 SE’s combined specs outperform just about any AD/DA converter available today.

Inputs

    • Analog IN: 2 balanced inputs on 2 female XLR connectors
    • AES IN: Stereo input on 1 female XLR connector
    • Optical IN: Supports ADAT, SMUX & S/PDIF
      • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
      • SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
      • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
    • S/PDIF Coax IN: 2 channels, up to 192 kHz on 1 RCA connector

A/D

  • THD+N of -116dB @23dBu (0.00016%) unweighted
  • Dynamic range: 124 dB (A) of dynamic range
  • Maximum input levels:
    • +4dB setting: +24dBu
    • -10dB setting: +6dBV
  • Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)
  • Input impedance: 10K

Outputs

  • Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector
  • AES OUT: Stereo output on 1 male XLR connector
  • Optical OUT: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
    • SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
    • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
  • S/PDIF Coax OUT: 2 channels, up to 192 kHz on 1 RCA connector

D/A

  • THD+N of -118dB @ 22dBu (0.00013%) unweighted
  • Dynamic range: 131dB (A) dynamic range
  • Max output levels – ∞ to +24dBu
  • Frequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)
  • Output impedance: 25 Ohm

Connection:

Ethernet + Pro Tools | HD

Performance:

44.1kHz – 192kHz

Computer:

Mac or PC
