Aston Microphones Spirit

Aston Microphones Spirit

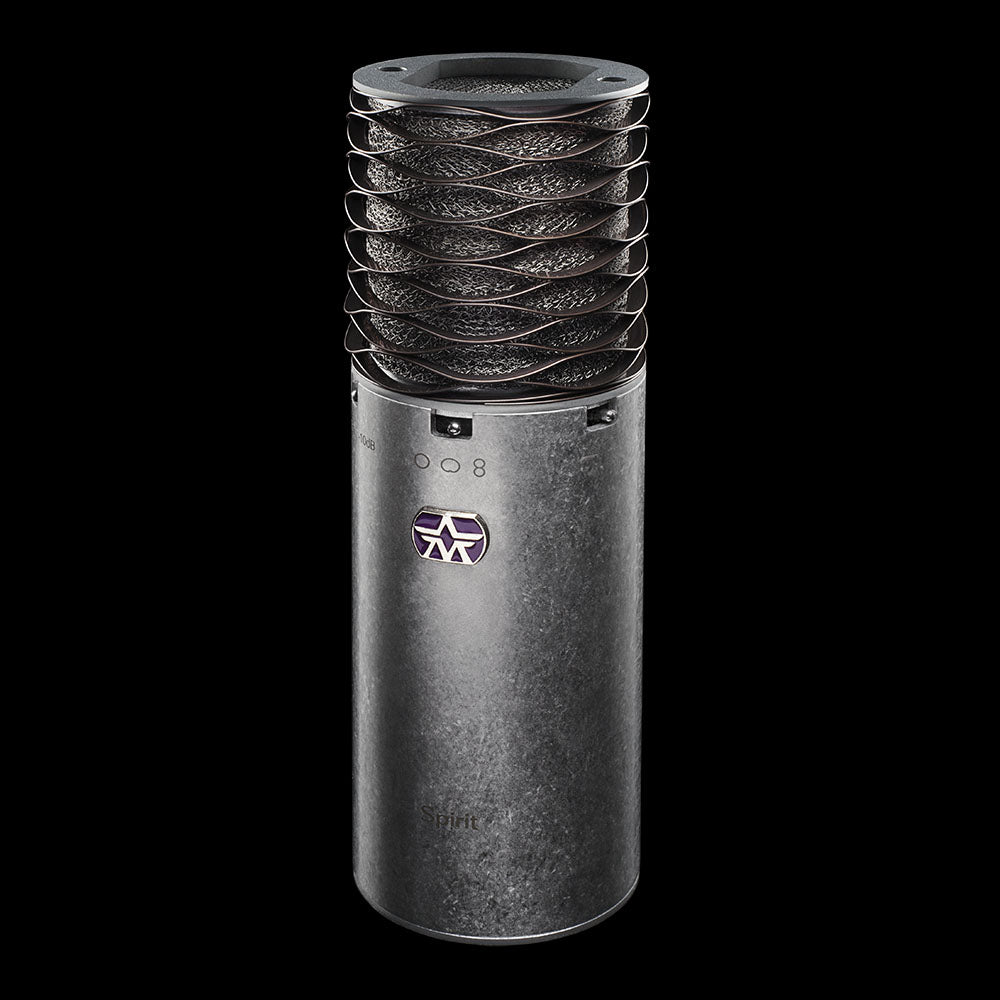

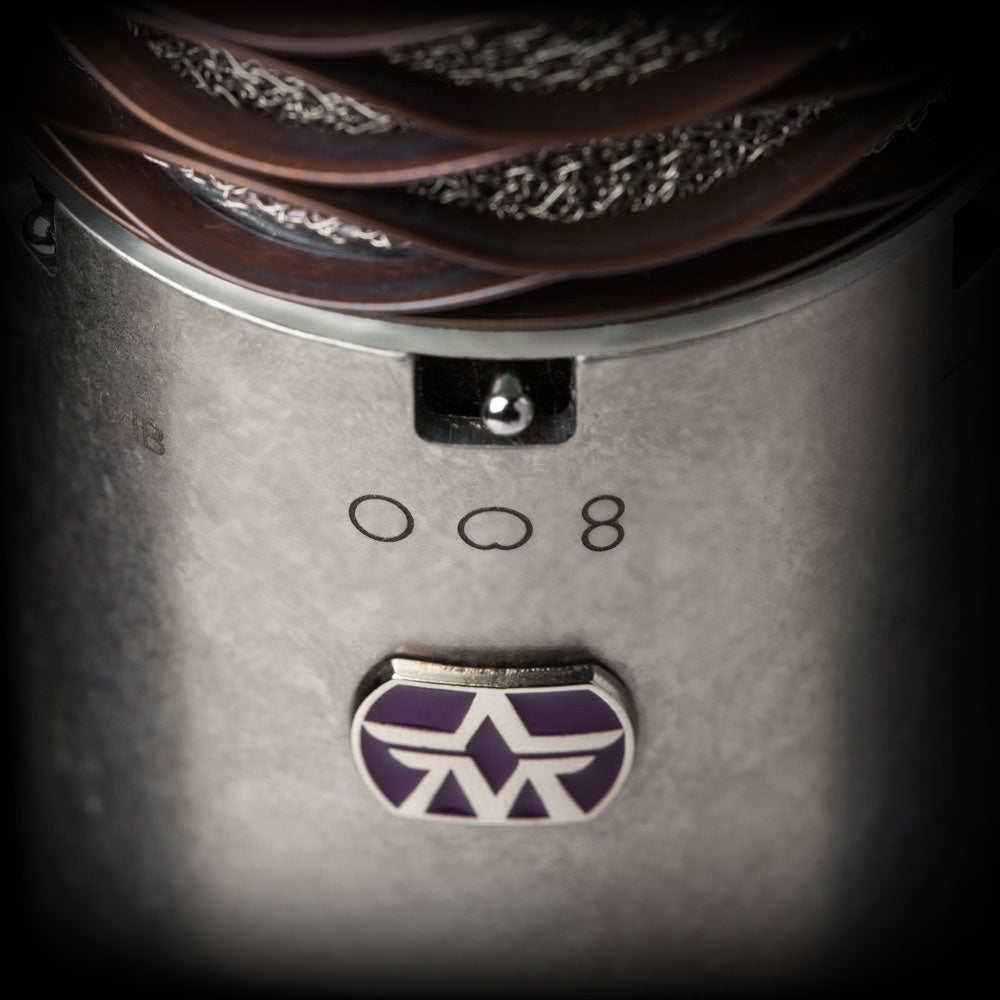

The Aston Spirit is a high-performance switchable pattern microphone utilising a 1” gold evaporated capsule. A switch on the mic body selects from Omni, Cardioid or Figure-of-Eight polar patterns. It is versatile enough to use with most instruments and excels on acoustic guitar and vocals. Its Aston 33 panel selected capsule is teamed with high-end transformer balanced circuitry using only the best components.

The Spirit is designed to deliver a beautifully open sound with sparkling harmonics. This highly accurate microphone gives a stunningly natural and transparent recording, capturing all the detail in the high range but without adding the harshness that some condenser microphones seem to.

Tech Specs

Transducer Type
Condenser

Acoustic Operating Principle
Pressure Gradient

Frequency Response
20Hz – 20kHz (+/-3dB)

Equivalent Noise Level
14dB A-Weighted

Sensitivity at 1kHz into 1kohm
23.7mV/Pa

Maximum SPL for THD 0.5%
138dB

Signal-to-Noise Ratio (rel. 94dB SPL)
80dB A-Weighted

Polar pattern
Omni/Cardioid/Figure-of-Eight

Pad Switches
-20dB/-10dB/0dB

Low-Cut Filter
80Hz

Product length
175 mm / 6.89 in

Product width
54 mm / 2.13 in

Product weight
625 g / 1.38 lb
