DPA d:sign™ 4098 Supercardioid Ceiling Mic, 16 cm, White

d:sign™

Supercardioid Ceiling and Tabletop Microphone

Speech intelligibility - low noise

• Outstanding audio quality
• Slim, elegant Scandinavian design
• Highly directional – very isolated
• High rejection of radio frequency interference
• Meets the needs of architects, AV consultants, system integrators and installing electricians

With very low noise and a high sensitivity, d:sign™ Ceiling & Tabletop Microphones offer the most clear, transparent, and natural sound available on the small footprint mic market. They ensure maximum speech intelligibility regardless of the acoustical environment. With a linear response, low distortion and an extremely large dynamic range, they sound great in any environment.

The Microphone Base is made specifically to work with the d:sign™ 4098 Supercardioid Podium Microphone. It has an elegant yet unobtrusive design with a white, non-reflective surface and integrated shock mount. The audio cables are an integral part of the Microphone Base unit.

The Microphone Base fits most electrical back boxes and secures ease of installation. Furthermore, the great off-axis response and the physics of sound level vs distance, makes it possible to cover a small to mid-size room with only one or a few microphones. Read more about microphones in installed systems.

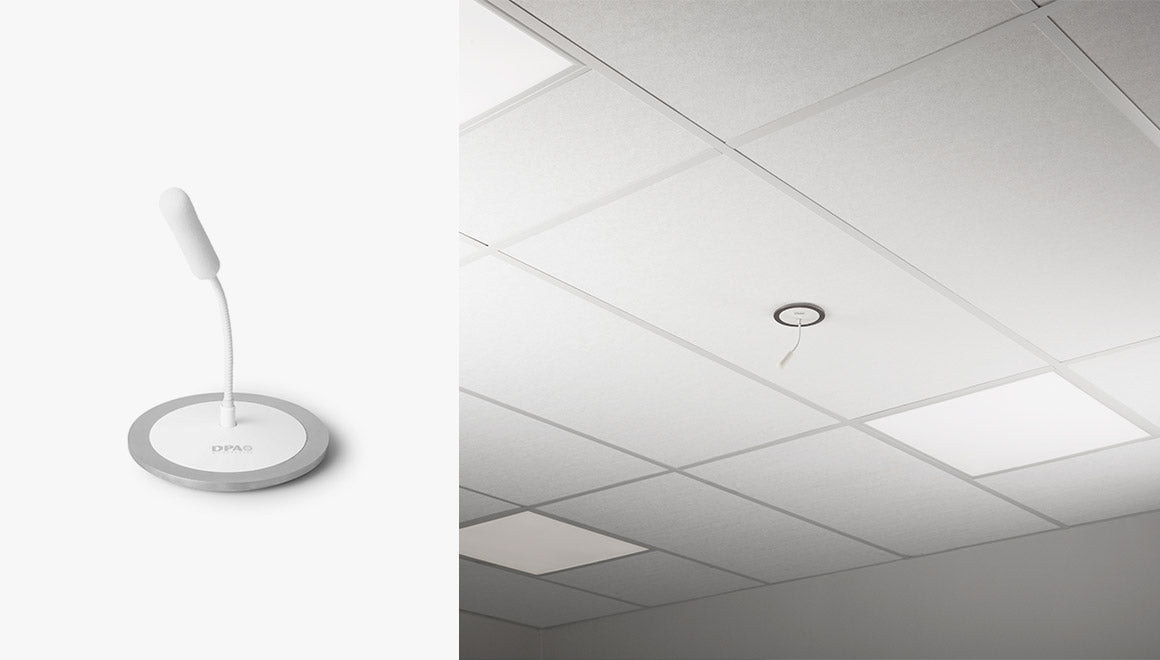

d:sign™ Supercardioid Ceiling Microphones

A complete, supercardioid ceiling microphone solution, which is ideal for mounting from the ceiling of conferences venues, meeting rooms, board rooms and other small to mid-sized spaces.

The standard ceiling solution is equipped with a 16 cm (6 in), white gooseneck and comes in three standard kits to meet your exact needs.

d:sign™ Ceiling Microphone, 16 cm (6 in), White with MicroDot (unbalanced)

d:sign™ Ceiling Microphone, 16 cm (6 in), White with Unterminated, P48 (balanced)

d:sign™ Ceiling Microphone, 16 cm (6 in), White with XLR (balanced)

Other gooseneck lengths can be ordered separately as well. We recommend ceiling solutions with goosenecks in 16 cm (6 in), 28 cm (11 in) and 43cm (17 in) versions.

Specifications

• Directional pattern Supercardioid
• Principle of operation Pressure gradient
• Cartridge type Pre-polarized condenser
• Frequency range 20 Hz - 20 kHz
• Frequency range, ± 2 dB, at 20 cm (7.9 in) MicroDot: 80 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz
• XLR-3M: 100 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz and permanent 2nd order low-cut filter at 80 Hz
• Sensitivity, nominal, ±3 dB at 1 kHz 16 mV/Pa; -36 dB re. 1 V/Pa
• Equivalent noise level, A-weighted Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
• Equivalent noise level, ITU-R BS.468-4 Typ. 35 dB (max. 38 dB)
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 71 dB(A)
• Total harmonic distortion (THD) < 1% up to 125 dB SPL peak
• Dynamic range Typ. 102 dB
• Max. SPL, peak before clipping 135 dB
• Output impedance From MicroDot: 30 - 40 Ω. From XLR connector or DAD6001 XLR Adapter: 100 Ω
• Minimum load impedance 2 kΩ
• Cable drive capability Up to 300 m (984 ft) with XLR connector or DAD6001 XLR Adapter
• Output balance principle Signal balanced with XLR connector og DAD6001 XLR Adapter
• Common mode rejection ratio (CMRR) > 60 dB from 50 Hz to 15 kHz with DAD6001 XLR Adapter
• Power supply (for full performance) MicroDot: Min. 5 V to max. 50 V through DPA adapter for wireless systems
• or 48 V phantom power ±4 V with DAD6001-BC XLR adapter
• XLR-3M: 48 V phantom power ±4 V
• Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001 XLR Adapter
• Connector MicroDot or XLR-3M
• Color Black or white
• Weight Microdot:
• 16 cm (6 in): 12 g (0.4 oz)
• 28 cm (11 in): 20 g (0.7 oz)
• 43 cm (17 in): 28 g (1.0 oz)
• 77 cm (30 in): 55 g (1.9 oz)
• 122 cm (48 in): 67 g (2.4 oz)
• XLR-3M:
• 16 cm (6 in): 75 g (2.6 oz)
• 28 cm (11 in): 80 g (2.8 oz)
• 43 cm (17 in): 88 g (3.1 oz)
• 77 cm (30 in): 115 g (4.1 oz)
• 122 cm (48 in): 127 g (4.5 oz)
• Microphone diameter 10 mm (0.4 in)
• Capsule diameter 5.4 mm (0.21 in)
• Microphone length Microdot: 16 cm (6 in), 28 cm (11 in), 43 cm (17 in), 77 cm (30 in), 122 cm (48 in)
• XLR-3M: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in).
• Polarity +V at MicroDot pin for positive sound pressure (and pin 2 on XLR connector or DAD6001 XLR adapter)
• Temperature range -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH) Up to 90%
