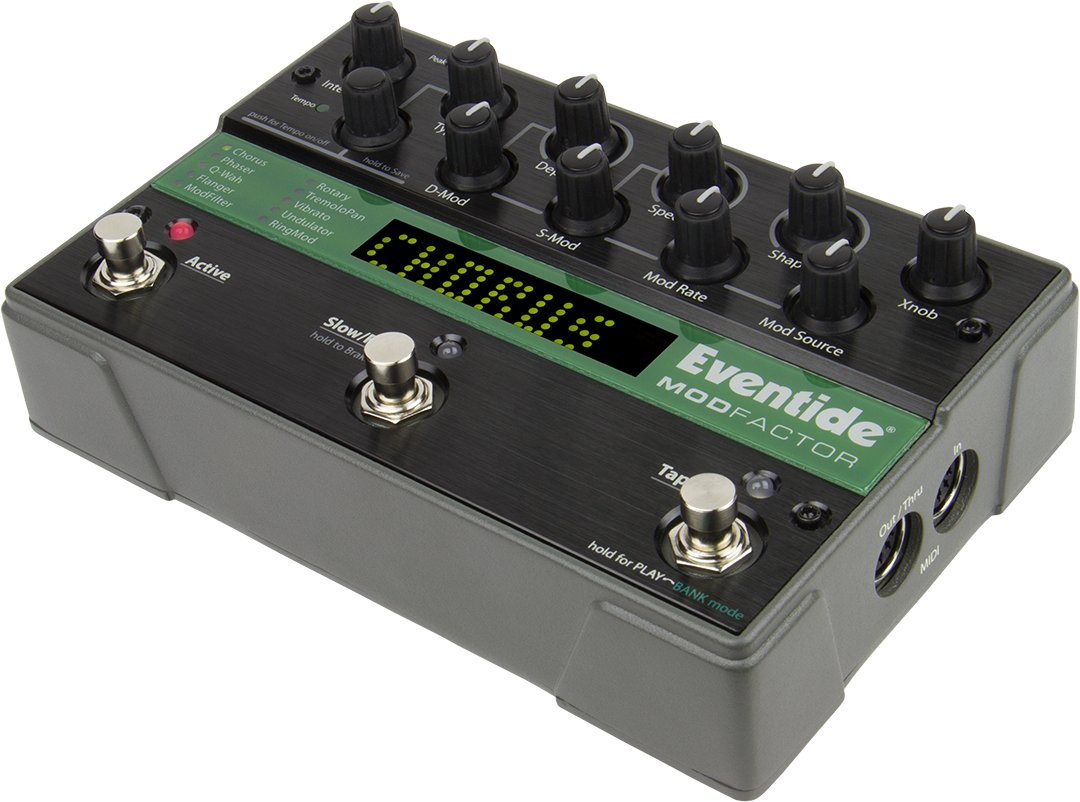

Eventide | ModFactor Modulation & Chorus Pedal

ModFactor

Modulation & Chorus

Modulate Your Modulator

All the standards — Chorus, Flanger, Phaser as well as Rotary, Tremolo, and Vibrato are there. Also included is the unique Undulator effect from the H8000 and a RingMod that lands somewhere between ring modulation and synthesis. The dedicated SLOW/FAST footswitch for ramping the LFO rate comes in handy. LFO rates can also sync to Tap Tempo and MIDI clock.

Features

Modulate your Modulator: Two LFOs create rich expressive modulation effects.

• 100 Presets
• Studio-Quality Sound
• Instant Program Change
• Real-time control with 10 knobs, MIDI or expression pedal
• Tap Tempo and MIDI Clock Sync/Generate
• True Analog Bypass
• Rugged cast metal construction
• Metal footswitches for instant Preset access
• Mono or Stereo operation
• Guitar or Line Level Inputs and Outputs

Specifications

Input 1 (mono)

¼ inch mono phone jack

Input 2

¼ inch mono phone jack

Output 1 (mono)

¼ inch mono phone jack

Output 2

¼ inch mono phone jack

Expression Pedal

¼ inch mono phone jack

Aux Switch

¼ inch mono phone jack

USB

Type B Socket. Use 2.0 cables only

MIDI In

Five pin DIN (Female)

MIDI Out/Thru

Five pin DIN (Female)

AC Adapter Jack

US Power Supply included

Input Impedance

500K ohms

Output Impedance

470 ohms

Recommended Load Impedance

10K ohms or greater

Power

9V DC 500mA, Center positive (+), 5.5mm/2.5mm jack

Dimensions

English: 4.8″ (H) x 7.5″ (W) x 2.12″ (D)
Metric: 122 (H) x 190 (W) x 54 (D) mm

Weight

2.15 lbs, 1kG

Eventide Device Manager

Unlocking the full potential of your Eventide pedal is easy with EDM. Connect the pedal via the USB port to your computer for direct access to all functionality of the pedal. EDM software allows users to control every parameter in a digital realm: Install software updates, create and manage presets, set up MIDI, and backup/restore the device. Effortlessly make changes by auditioning and experimenting with different sounds directly from the software.

Available for Blackhole Pedal, MicroPitch Delay, TriceraChorus Pedal, UltraTap Pedal, H9 Max, Rose, and Factor Series.
