Eventide | Rose Modulated Delay Pedal

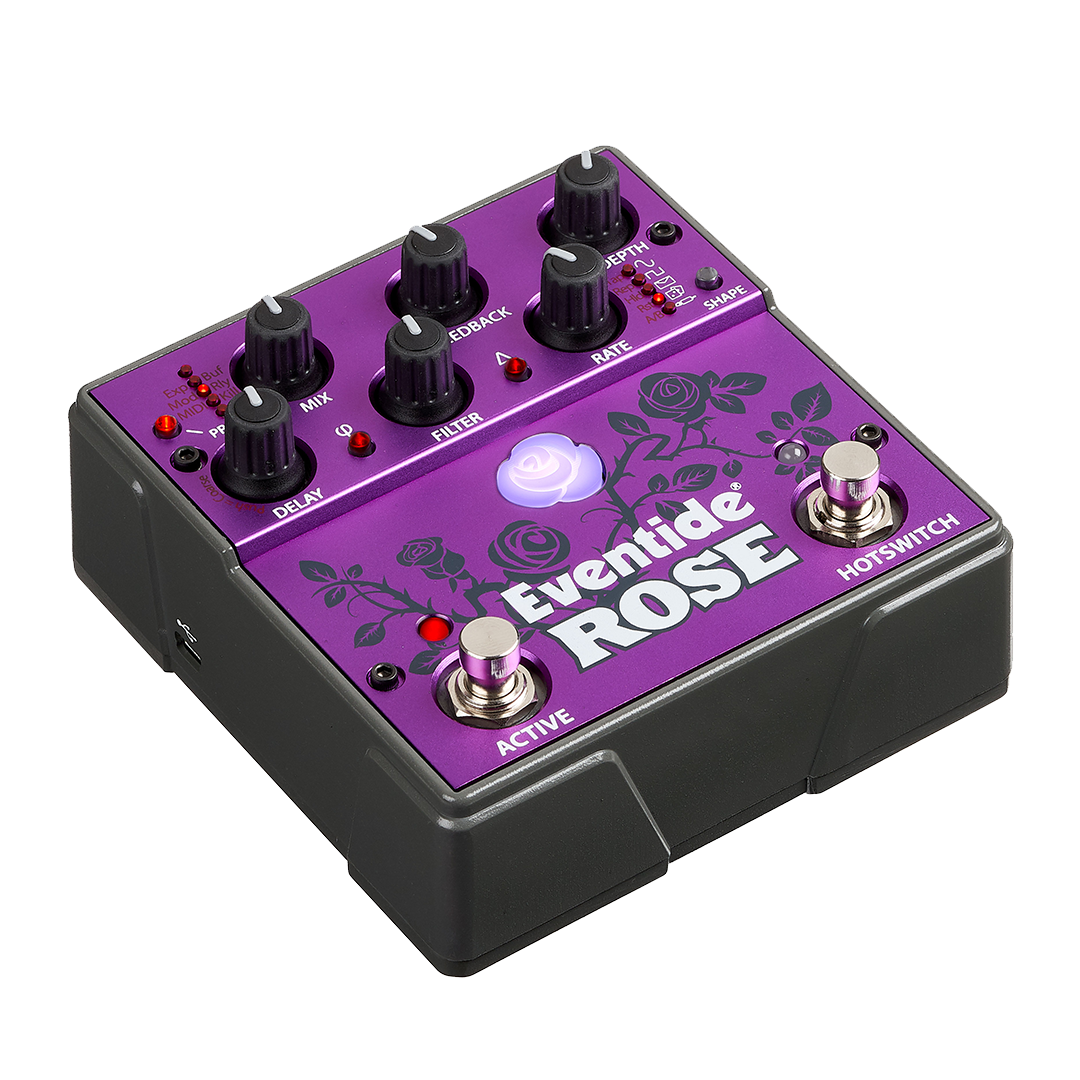

Rose

Bucket Brigade Reimagined

A Modulated Delay Like No Other

From reverse delays, slapback, chorus, and everything in between, Rose is capable of producing a wide range of sounds. The perfect hybrid of analog and digital, the pedal features five different modulation sources, delay multiplier, phase invert/reverse, 25 customizable presets, true analog dry path, MIDI, and AUX/Expression via TRS for ultimate versatility, on stage or in the studio.

Features

• Analog dry path with analog Mix, Filter, and Feedback
• Comes with 25 factory presets (5 banks with 5 presets each)
• Standard delay times from 10 sec to 10 μsec
• Modulation sweep from 1/2 to 2x the standard delay time, simultaneously modulating pitch across a full octave +/-
• Selectable modulation source: Sine / Square / Random / Envelope / External (CV)
• Tap Division selection (quarter, eighth, dotted eighth, triplet)
• MIDI Tap Tempo & Clock Receive
• Reverse delay function for backwards delays
• Invert function flips the phase of the delayed signal
• Delay Multiply (2X, 3X, 4X, 5X) for delays up to 50 sec
• Assignable Hotswitch: Tap Tempo / Infinite Repeat / A/B switching / LFO Hold / LFO Reset
• Input Level Select Switch: Line / Instrument
• TRS/TS Input for expression pedal, auxiliary Switch and MIDI
• Selectable Bypass: Relay / Buffered / Input Kill
• USB for use with Eventide Device Manager(manage presets, settings, MIDI and more)
• Software V3 offers MIDI Tap Tempo & Clock Receive, Kill-Dry mode, and “Envelope Off” mode

Explore 25 Customizable Presets

Rose comes with 25 factory presets, divided among 5 banks with 5 presets each. The sound is exquisite and the range of effects wide. Users can customize or create their own with the Device Manager software.

Specifications

Input

¼ inch mono phone jack

Output

¼ inch mono phone jack

Expression Pedal / Aux Switch / MIDI

¼ inch mono phone jack

Mini USB

Use 2.0 cables only

Input Impedance

600k Ω

Output Impedance

470k Ω

Recommended Load Impedance

10k Ω or greater

Power

9V DC @ 200mA / Center Negative (-), 5.5mm/2.1mm jack (BOSS standard)

Dimensions Weight

5.5″ W x 8″ D x 2.5″ H / 139.7 mm x 203.2 mm x 63.5 mm

2.5 lb / 1.1 kg

Eventide Device Manager

Unlocking the full potential of your Eventide pedal is easy with EDM. Connect the pedal via the USB port to your computer for direct access to all functionality of the pedal. EDM software allows users to control every parameter in a digital realm: Install software updates, create and manage presets, set up MIDI, and backup/restore the device. Effortlessly make changes by auditioning and experimenting with different sounds directly from the software.

Available for Blackhole Pedal, MicroPitch Delay, TriceraChorus Pedal, UltraTap Pedal, H9 Max, Rose, and Factor Series.
