Price
$81.18
Taxes and shipping calculated at checkout

Stock Notification

Get notified when this product is available again

Frequently Bought Together

Have a question?

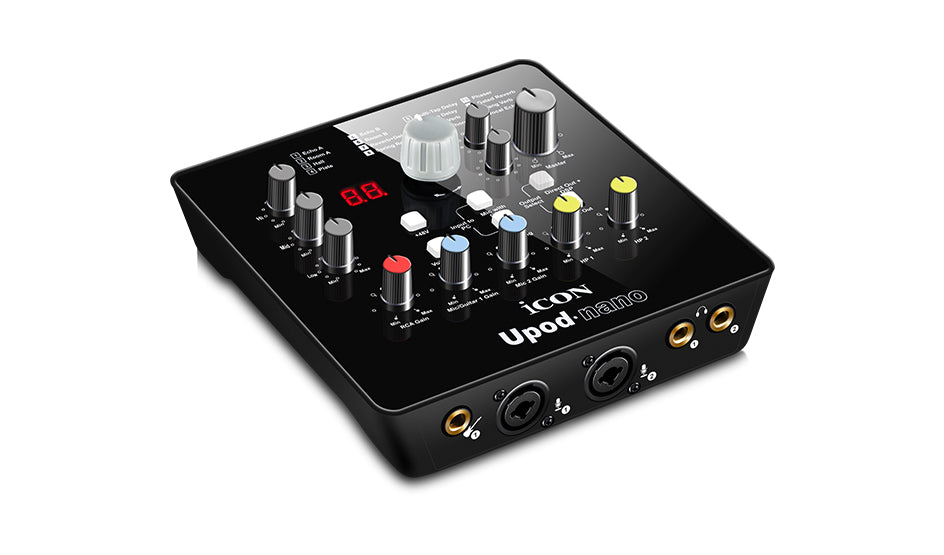

Upod Nano

  • 16-Bit 48KHz 2 mic-In/1 guitar-In, 2-Out USB Recording Interface
  • 2×2 analog I/O full duplex recording and playback
  • ICON innovative unique mic preamp with individual gain control.
  • +48V phantom power equipped.
  • Built-in ICON 16-DSP effect with control knob on the top panel.
  • 2 DSP parameter adjustment knobs on the top panel.

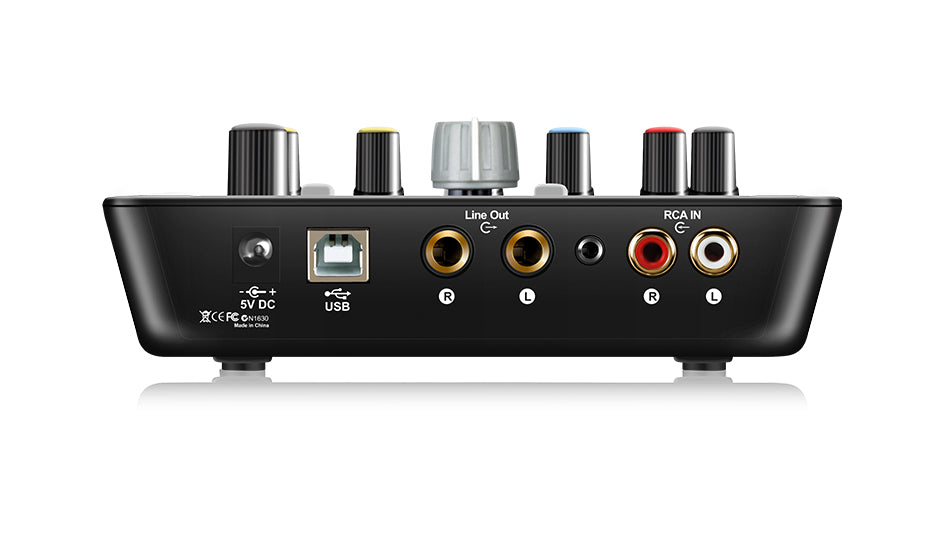

  • 2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector.
  • Built-in stereo RCA input with individual gain control
  • Allow to use as a stand-alone device with RCA input & DSP processing.
  • Attenuator function button equipped for music fade out automatically when mic signal present.
  • Buttons equipped for controlling mic signal (dry/wet) recording to PC.
  • Buttons equipped for controlling monitoring signal (dry/wet).
  • Master volume control on the top panel
  • 2 headphone outputs on 1/4” TRS jacks with individual volume control
  • USB2.0 compatible and USB bus-powered
  • Plug and play and no driver installation is needed.
  • Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit), Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit)
  • Full duplex, simultaneous record/playback

Tech Specs:

Mic Input
Frequency Response 22Hz to 22kHz (+/-0.2dB)
Dynamic Range 90dB, A-weighted
Signal-to-Noise Ratio -90dB, A-weighted
THD+N <0.0061% (-86dB)
Crosstalk -85dB@1kHz
Input Impedance Mic in:1.8K Ohms, typical
Total Gain Range +39dB
Inst Input
Frequency Response 22Hz to 20kHz (+/-0.2dB)
Dynamic Range 90dB, A-weighted
Signal-to-Noise Ratio -90dB, A-weighted
THD+N <0.0061% (-86dB)
Crosstalk -75dB @ 1kHz
Input Impedance Inst in:500K Ohms, typical
Total Gain Range +38dB
Line Inputs (RCA IN, Unbalanced)
Frequency Response 22Hz to 20kHz (+/-0.2dB)
Dynamic Range 90dB, A-weighted
Signal-to-Noise Ratio -90dB, A-weighted
THD+N <0.003% (-86dB)
Crosstalk -90dB@1kHz
Input Impedance 10K Ohms, typical
Adjustable Gain +8dB
Line Outputs 1/2 (Stereo, Unbalanced)
Frequency Response 22Hz to 20kHz (+/-0.2dB)
Dynamic Range 90dB, A-weighted
Signal-to-Noise Ratio -90dB, A-weighted
THD+N <0.003% (-86 dB)
Crosstalk -90dB@1kHz
Nominal Output Level Unbalanced: +2dBV, typical
Headphone Outputs: (at Maximum Volume; Into 100 Ohm load)
Frequency Response 22Hz to 20kHz (+/-0.2dB)
Power into Ohms 20 mW into 100 Ohms
THD+N <0.06% (-66dB)
Signal-to-Noise Ratio -90dB, A-weighted
Max Output Level into 100 Ohms +2.0dBV, typical
Load Impedance 32 to 600 Ohms
Weight 0.520 KG（1.15lb）
Dimensions 160mm(L)x160mm(W)x50mm(H)
Dimensions 6.3"(L)x6.3"(W)x1.97"(H)
