VLZ4 Series Mixers

PERFECTION
OF COMPACT ANALOG MIXER DESIGN

Mackie relentlessly pursues the perfection of the compact mixer. VLZ4 ups the level of sonic quality at every level, featuring Mackie's flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and, yes, the best sounding compact mixer ever created.

THE ORIGINAL

No-nonsense

compact mixer series

Now featuring Mackie's flagship Onyx mic preamps, the comprehensive Mackie VLZ4 line delivers the proven feature set, high-headroom/low-noise design and "Built-Like-A-Tank" construction that created an industry more than 25 years ago.

From every input to every output, VLZ4 is optimized to deliver professional-quality results each and every time.

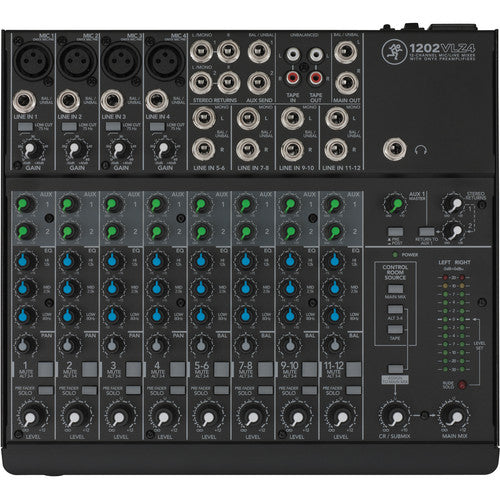

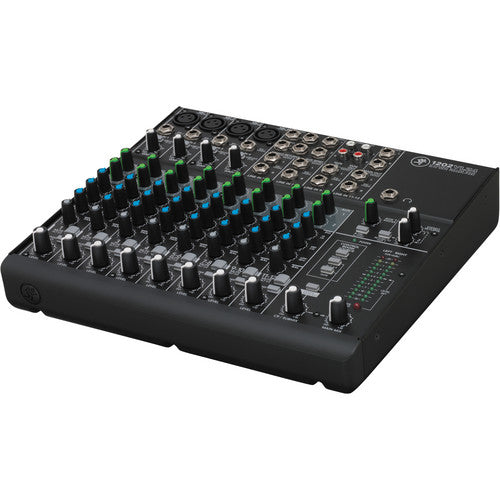

1202VLZ4T

he 12-channel 1202VLZ4 delivers the outstanding quality of our flagship Onyx preamps in a compact mixer design with the high-headroom/low-noise performance your professional application demands.

From every input to every output, you can count on the industry-proven performance you expect from a VLZ mixer.

Plus, it is truly “Built-Like-A-Tank” with a ridiculously rugged solid-steel chasis plus high-contrast controls for ultimate tactile control.

And with features like a dedicated control room section, the 1202VLZ4 offers a true step up in flexibility and performance that’s ideal for your professional application.

FEATURES:

■ 12-channel mixer featuring our signature high-headroom, low-noise design

■ 4 boutique-quality Onyx mic preamps • Ultra-wide 60 dB gain range • 128.5 dB dynamic range • +22 dBu line input handling • Extended frequency response • Distortion under 0.0007% [20 Hz – 50 kHz]

■ Improved RF rejection, perfect for broadcast applications

■ Phantom power for condenser mics

■ 12 high-headroom line inputs

■3-band EQ (80 Hz, 2.5 kHz, 12 kHz)

■18 dB/oct 75 Hz low-cut filter on mic input channels

■ Aux send, level, pan and PFL solo on each channel

■ Stereo return for connecting FX processor or other stereo source

■ALT 3/4 stereo bus for added routing flexibility

■Control room / phones source matrix

■High-resolution 12-segment stereo meters

■ Sealed rotary controls resist dust and grime

■“Built-Like-A-Tank” rugged steel chassis with powder-coat finish

■High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback

■Rack-mountable design using an optional rack ear kit

■ Multi-voltage power supply for worldwide use

Tech Specs

• Type: Analog
• Channels: 12
• Inputs - Mic Preamps: 4 x XLR (CH 1-4)
• Phantom Power: 4
• Inputs - Line: 4 x 1/4" (CH 1-4), 8 x 1/4 (CH 5-12 Stereo), 2 x RCA (Tape)

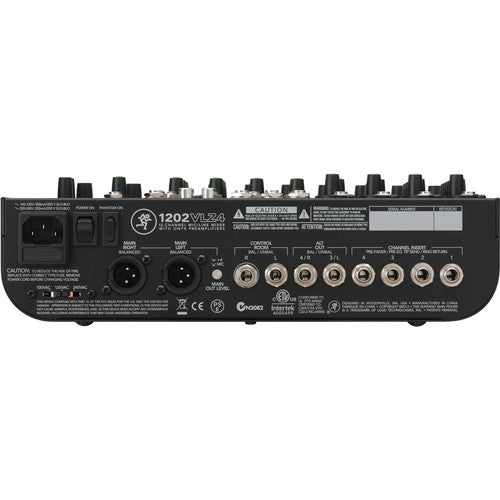

• Outputs - Main: 2 x XLR, 2 x 1/4"
• Outputs - Other: 2 x RCA (Tape), 2 x 1/4" (Control Room), 1 x 1/4" (Alt)
• Aux Sends: 1 x Pre/Post, 1 x Post
• Send/Return I/O: 2 x 1/4" (Send), 4 x 1/4" (Return)
• Busses/Groups: Alt 3-4
• Channel Inserts: Yes (CH 1-4)
• Headphones: 1 x 1/4"
• EQ Bands: 3-band
• Rackmountable: Yes
• Height: 3"
• Width: 11.9"
• Depth: 10.7"
• Weight: 6.5 lbs.
