The NEw SHape

of sound

Featuring Mackie’s TruSource™ vertically-aligned, common-magnet driver and TruSource DSP for unmatched fidelity and packed with cutting-edge technology to deliver a staggering 2000 watts of power in a groundbreaking design with an integrated digital mixer plus all the channel effects and system processing you’ve ever wanted.

DLM12

The Mackie DLM8 and DLM12 each deliver 2000 watts into the most compact, professional portable loudspeaker design ever. Featuring TruSource™ technology, the DLM loudspeakers are equipped with Mackie’s TruSource driver that incorporates the high-output 8" [DLM8] and 12" [DLM12] woofer and 1.75" compression driver into an incredibly compact common-magnet design. Powerful TruSource DSP delivers seamless clarity, consistent dispersion and unmatched fidelity.

These versatile loudspeakers feature the Mackie DL2 integrated digital mixer, providing a dual-channel mixing solution for a wide array of possible connections with incredible channel features like 3-band EQ and 16 great-sounding effects. Plus, system processing like a multi-band feedback destroyer, six speaker modes and Smart Protect technology provide the tools needed for truly professional applications.

With configuration options that include pole / wall mounting and flying, the sleek DLM loudspeakers are a powerful solution for high-end installs. The ultra-compact form factor includes a rugged PC-ABS cabinet, powder-coated grille and integrated kickstand for personal monitor use.

FEATURES:

■ 2000W power via ultra-efficient Class-D amplification

■ TruSource™ technology

• Mackie designed, vertically-aligned, common-magnet TruSource driver

• 8" LF woofer / 1.75" HF driver [DLM8]

• 12" LF woofer / 1.75" HF driver [DLM12]

• Incredibly compact, lightweight design

• Powerful TruSource DSP delivers seamless clarity, consistent dispersion and unmatched fidelity

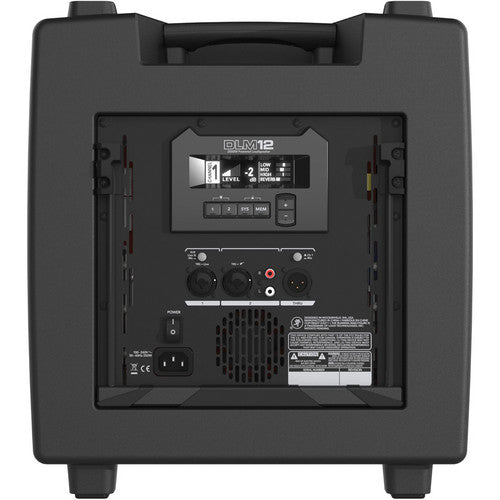

■ DL2 Integrated Digital Mixer

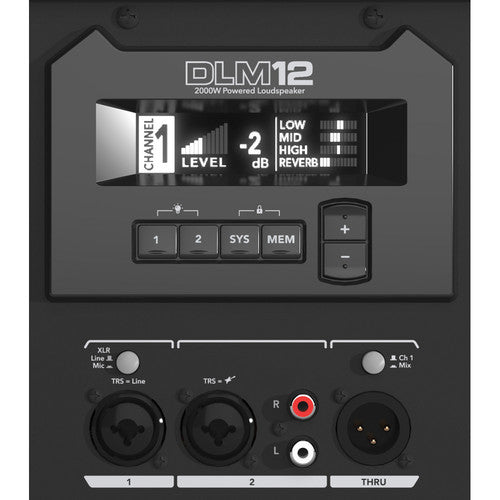

• Powerful, one-touch digital mixer with bright OLED screen

• Two highly-versatile input channels with FX

• Independent channel level, 3-band EQ and effects control

• 16 great-sounding effects include reverb, chorus and delay

• XLR / TRS combo and dual RCA connectors

• Handles mic, line, stereo and instrument signals

• Unmatched system control for professional applications

• Multi-band feedback destroyer

• Six speaker modes deliver the perfect voicing for your application

• Alignment delay up to 300ms for delay stack, balcony, etc.

• Three memory locations for instant venue setting recall

• Smart Protect DSP dynamically protects amp / driver

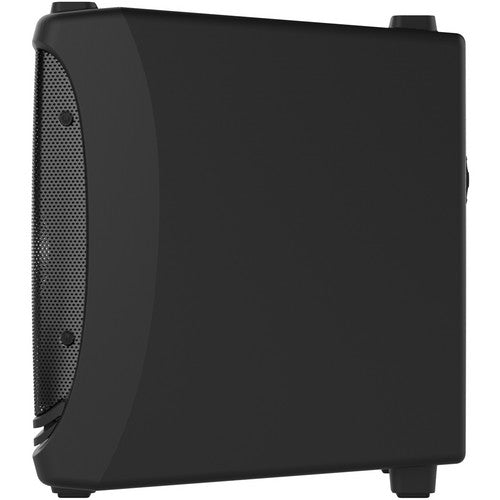

■ Innovative ultra-compact design

• 1/3 smaller than a traditional 2-way design

• Fit an entire DLM system in nearly any car

• Stack them up for storage

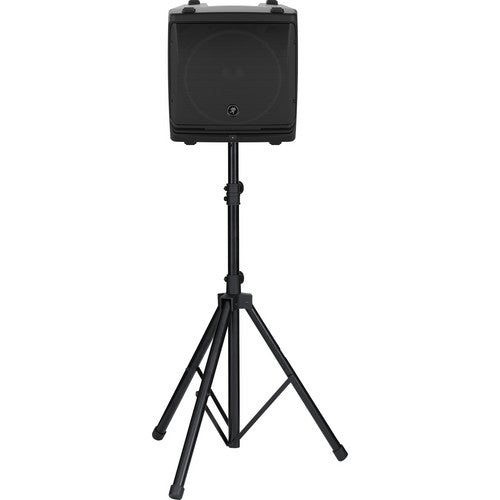

• Pole-mountable on tripod or atop DLM12S using SPM300 speaker pole

• Flyable via standard M10 rigging hardware

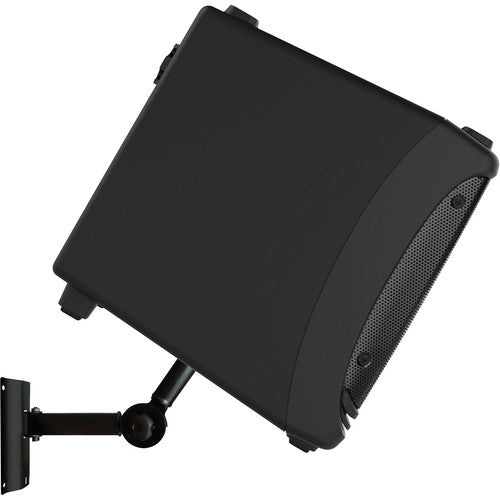

• Wall-mount them using SWM300 articulated arm for stealthy, powerful install system

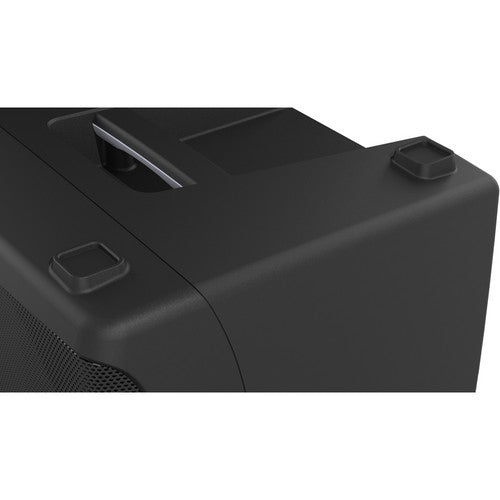

• Roadworthy PC-ABS cabinet with pro black finish and ergonomic top carry handle

• Rugged, powder-coated 20 gauge steel grille

• Integrated kickstand delivers the perfect angle for personal monitor use

• Ridiculously lightweight

• 22 lb / 10 kg [DLM8]

• 31 lb / 14.1 kg [DLM
