MDB Series Direct Boxes
Ready
For Anything
From acoustic guitars to laptops, always sound your best with MDB Series Direct Boxes. Available in four different models, the MDB Series will give you the peace of mind that your sound will faithfully get to your audience the way that you hear it on stage.
Premium
Without the price tag
Direct boxes are an essential tool for any stage or studio. They make it easy to get clean, low-noise audio to a mixer no matter what instrument you are using. Available in four versatile models, our ultra-affordable DI's offer the Mackie sound quality that you expect with Built-Like-A-Tank™ construction for maximum reliability. From acoustic guitars to laptops, be ready for anything with MDB Series direct boxes.
versatility
The Perfect Match
With four models to choose from, you can get the perfect match for your instruments. Acoustic guitars and keyboards are right at home with the MDB-1P and MDB-2P.
High output instruments will appreciate the extra headroom in the MDB-1A.
rugged
Built-Like-A-Tank™
From the inside out, MDB Series direct boxes are built to last. Thick steel chassis, impact resistant corners, and long-wearing jacks will keep these in your bag for years to come.
Quality
Premium Analog Circuitry
MDB Series direct boxes offer excellent noise performance and transparency. Whether you are in the studio or performing on stage, your instruments will always sound as good as they do at the source.
connect
Get the best sound from your laptop
The MDB-USB is the ultimate way to get pristine digital audio from your laptop directly to a mixer or front-of-house in a venue.

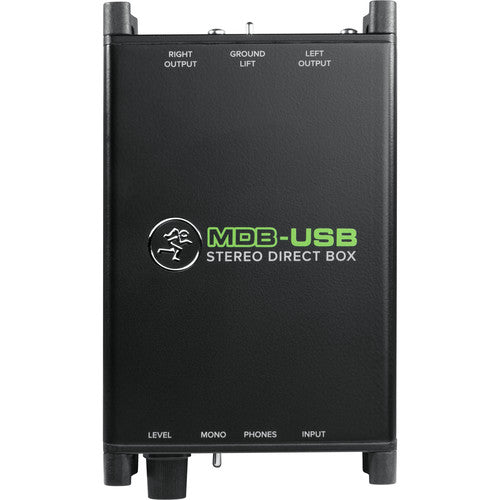

Mackie MDB-USB Overview
The Mackie MDB-USB is a USB-powered stereo DAC direct box designed to connect stereo a signal from USB to microphone preamps for DJs, producers, musicians, and audio engineers in recording sessions, clubs, houses of worship, and live stage applications. It converts a stereo digital audio feed at up to 24-bit/96 kHz resolution via a USB 2.0 Type-B input to low-impedance, mic-level analog outputs via two balanced XLR 3-pin jacks. A 3.5mm headphone output is provided for easy monitoring.
Optimize your gain stage using the level knob, which adjusts the output volume at the XLR and 3.5mm jacks. The mono on/off switch enables operation of the MDB-USB in stereo or mono. Its ground-lift switch inhibits hum caused by ground loops. A sturdy steel chassis enables confident use in the studio or on the road.
The MDB-USB features a download for ProTools | First and The Musician's Collection plug-in package including 23 high-quality plugins with BBD Delay, Level Lite, 304E EQ, and 304C Compressor
Feature Highlights
Connect the USB output from a stereo mixer, audio interface, or computer to microphone preamps
Converts stereo digital signal from a USB connection to low-impedance, balanced XLR mic-level analog outputs
USB 2.0 Type-B female input
Two XLR 3-pin balanced outputs
3.5mm stereo headphone output
Supports up to 24-bit / 96 kHz resolution
Mono switch allows easy sum-to-mono functionality
Ground-lift switch minimizes hum
Level knob controls overall volume to the XLR and 3.5mm output jacks
Powered via USB connection
Mackie MDB-USB Specs
| Type |
DAC |
| Input Connections |
1 x USB 2.0 Type-B female |
| Output Connectors |
2 x XLR 3-pin balanced
1 x 1/8" (3.5 mm) stereo mini-jack |
| Input Impedance |
330 kOhms balanced |
| Output Impedance |
XLR: 600 Ohms balanced
3.5 mm: 150 Ohms unbalanced |
| Controls |
1 x mono switch
1 x ground-lift switch
1 x level knob |
| Supported Resolution |
Up to 24-bit/96 kHz |
| Frequency Response |
20 Hz to 20 kHz (±0.5 dB) |
| Dynamic Range |
88 dB |
| Total Harmonic Distortion |
0.01% |
| Power Requirement |
USB, 90 mA |
| System Requirements |
Mac OS
Windows 7, 8, or 10 |
| Supports |
WDM, MME, Core Audio, DirectSound, and WAV |
| Construction Material |
Heavy-gauge steel chassis |
| Dimensions (H x W x D) |
1.5 x 3.4 x 5.8" / 38 x 86 x 147 mm |
| Weight |
1 lb / 0.5 kg |
Packaging Info
| Package Weight |
1.5 lb |
| Box Dimensions (LxWxH) |
7 x 5.8 x 3" |
