PreSonus AIR15s

AIR15s: Powerful, clear, accurate low end.

Designed to complement any full-range PA loudspeaker and a perfect companion for the PreSonus® AIR10, AIR12, and AIR15, the AIR15s subwoofer delivers a powerful, clear, and accurate low-end punch. With its 15-inch low-frequency transducer, driven by 1,200 watts (dynamic) of Class D power, it provides plenty of detailed bottom end—all the way down to 35 Hz. Yet it is portable and well suited for mobile applications, as well as installed systems.
Extensive controls enable customized performance.

Since each venue has unique acoustics and each application makes different demands on a sound system, we’ve equipped AIR-series subwoofers with easy-to-use controls and signal-processing presets. Set your subwoofers for normal front-of-house use or get an even bigger low-end with the Mo’ Bass preset. Set them to perform in an array. Reverse polarity, use the lowpass filter to set a crossover frequency, adjust the master output level of the power amplifier, even turn the grille LED off for install applications or set it to illuminate only when the protection limiter is engaged—all at the touch of a button.
Equally at home in mobile and installed systems.

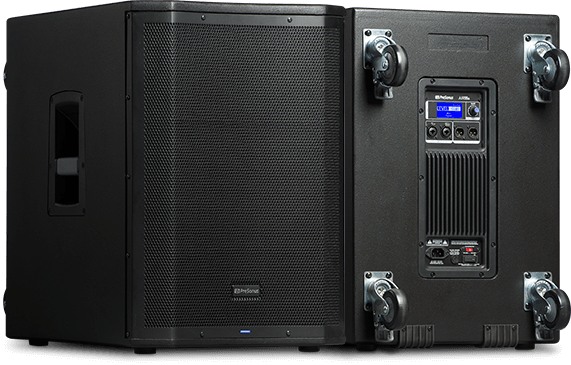

Although it has a rugged, tour-grade birch enclosure, the PreSonus AIR15s is much more compact and lightweight than you’d expect from a subwoofer that can deliver this much power. With integrated provisions for the included castor kit, ground-stacking provisions, and ergonomic handles on both sides, it’s easy to transport for mobile applications, while offering the features and performance needed for demanding installs. The AIR15s sports two combo XLR and ¼” TRS line-level inputs with level control, and throughputs are provided to connect full-range systems or multiple subwoofers in larger systems. You can even defeat the front power-indicator LED for low-visibility installs.
Plays well with others.

Although we recommend AIR-series full-range loudspeakers, AIR15s subwoofers can be used with virtually any full-range loudspeaker. Whatever full-range speaker you choose, aligning the subwoofer to its full-range companion will yield tighter bass response. AIR15s subwoofers make it easy, with a variable alignment delay that properly aligns your three-way system, whether the full-range loudspeaker is placed atop the subwoofer, using the sub pole, or is placed a few feet away. AIR-series subwoofers also are equipped with a variable lowpass filter that allows you to dial in the best crossover point for your system. Optimized settings are provided for the AIR10, AIR12, and AIR15 full-range loudspeakers.
Easily create subwoofer arrays.

Most subwoofers are essentially omnidirectional, radiating sound around the entire cabinet, which can cause feedback onstage and make monitoring more difficult. Creating a subwoofer array helps keep excess energy off of the stage and in the audience where it is needed. AIR-series subwoofers provide the tools you need to create these arrays with ease.
Now Hear This.

With flexible connectivity; a rugged, tour-grade enclosure; and plenty of Class D power, the AIR15s delivers the versatility and punch needed for permanent installs. Yet it’s relatively lightweight and portable, making it an excellent choice for mobile use. Although designed to complement AIR-series full-range loudspeakers, the AIR15s is also an excellent companion for third-party loudspeakers. Most important, it sounds great, delivering outstanding low-end clarity and natural music reproduction. Hear AIR-series loudspeakers for yourself at your favorite PreSonus dealer.

Features

Main Components

    •    1,200W (dynamic) Class D power amp

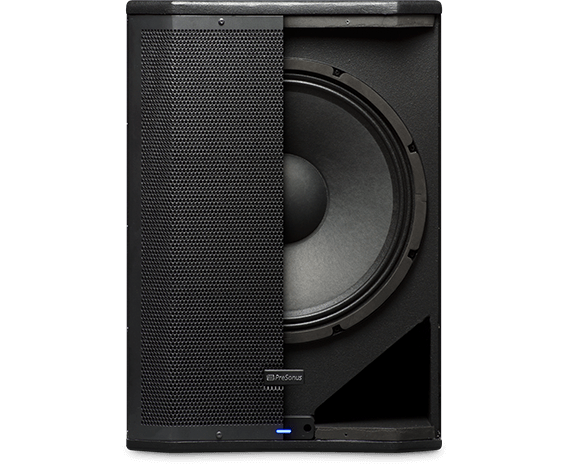

    •    15-inch woofer with a 3-inch voice coil
    •    Frequency Response: 35 to 160 Hz
    •    Max SPL: 126 dB
    •    2 combo XLR-¼” line inputs and two XLR direct outputs

Controls

    •    Easy-to-use DSP performance presets:
    •    Normal—typical FOH use
    •    Mo’ Bass—extended low-end performance
    •    Locate—adjusts performance for arrayed and non-arrayed applications
    •    Normal – non-arrayed applications
    •    Cardioid—create a ground-stacked cardioid subwoofer array (using two of the same model subwoofer)
    •    Endfire – create an endfire cardioid subwoofer array (using two of the same model subwoofer)
    •    Fully variable lowpass filter (sets the upper frequency limit/crossover point) LP filter presets for use with AIR15, AIR12, and AIR10
    •    LP filter presets for use with AIR15, AIR12, and AIR10
    •    Alignment delay—adds delay time relative to full-range speaker
    •    Polarity—invert the polarity of the summed input signal

Convenience Features

    •    2 comfortable ergonomic side handles
    •    Ground stack provisions
    •    Castor provisions (castor kit included)
    •    Defeatable front-panel LED
    •    Rugged, texture-painted, birch enclosure
    •    Tour-grade, 17 gauge steel grille
    •    Technical Specifications

Acoustic Performance

    •    Configuration Active vented design
    •    Frequency Range 35 Hz to 160 Hz
    •    Maximum Output 126 dB SPL

Transducer

    •    LF Driver 15” (3” voice coil)

Amplifier

    •    Amplifier Type Class D
    •    Total System Power 1,200W dynamic (600W continuous)

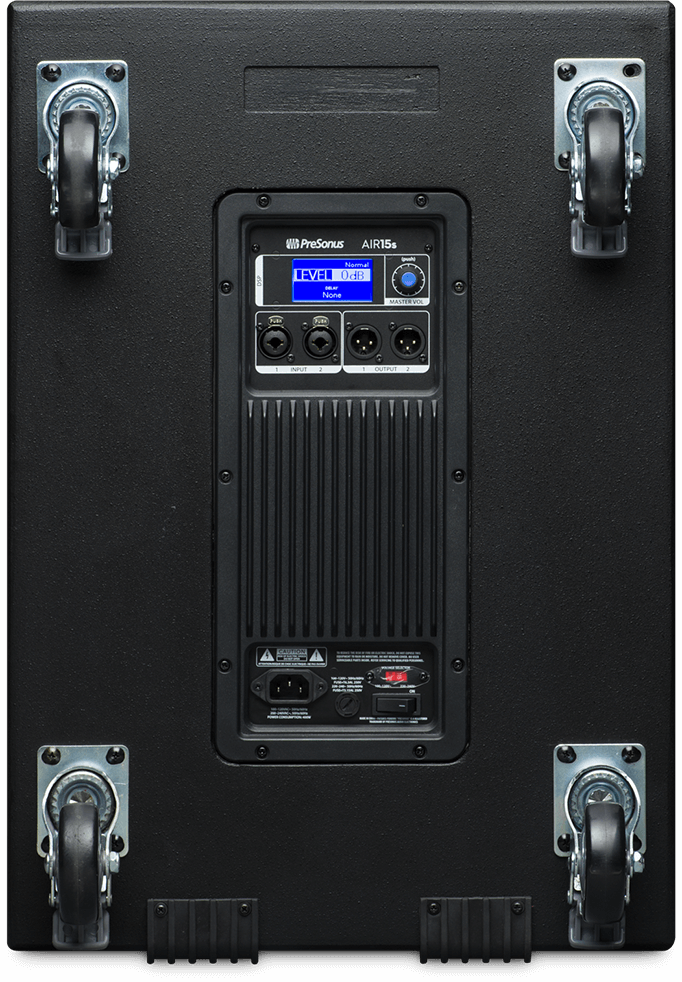

Connections and Controls

    •    Inputs 2 x XLR/TRS line combo
    •    Outputs 2 x XLR Link Out

DSP

    •    DSP Features LCD screen with EQ and multiple presets

Enclosure

    •    Cabinet 15 mm plywood
    •    Grille 1.5 mm steel
    •    Handles 2 side
    •    Mounting Groundstack provisions
    •    Dimensions (H x W x D) 27.6" x 20.5 x 27.9" (700 mm x 520 mm x 710 mm)
    •    Weight 70.5 lbs (32 kg)

Power

    •    Power Input 115V / 230V ~50/60 switchable
    •    Maximum Current 3.5A (230V-50 Hz), 7A (120V)
