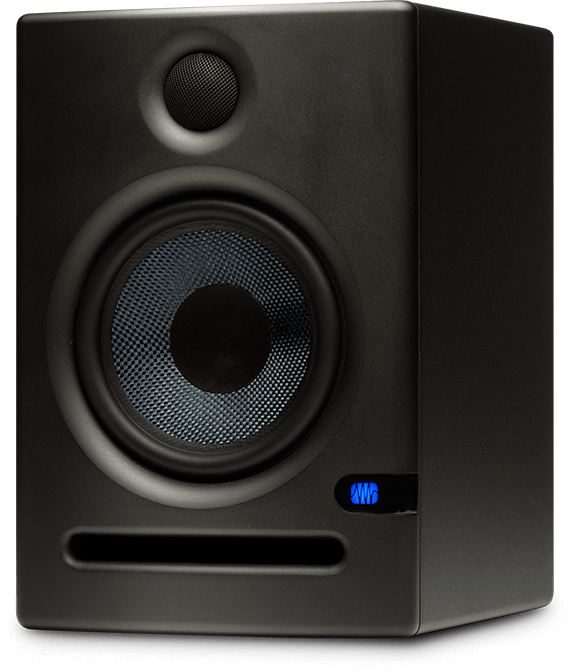

PreSonus Eris E5

Sound you can trust.

When you’re serious about creating music, you need studio monitors that will speak nothing but the truth. Eris®-series monitors deliver a smooth and accurate frequency response, powerful Class AB amplification with loads of headroom, and a suite of acoustic tuning controls to mitigate room anomalies. Whether you’re recording your first album or your latest hit, Eris monitors will ensure your vision is heard.
Kevlar woofers deliver a cleaner overall sound.

Every Eris-series studio monitor utilizes a custom-woven Kevlar® low-frequency driver. The weave and nature of the Eris E5’s five-inch Kevlar woofer helps break up reflected energy, so fewer delayed reflections reach the listener’s ear. This provides a more constant dispersion pattern throughout the frequency range, resulting in less time-smeared audio and cleaner overall sound.
Monitors you can customize.

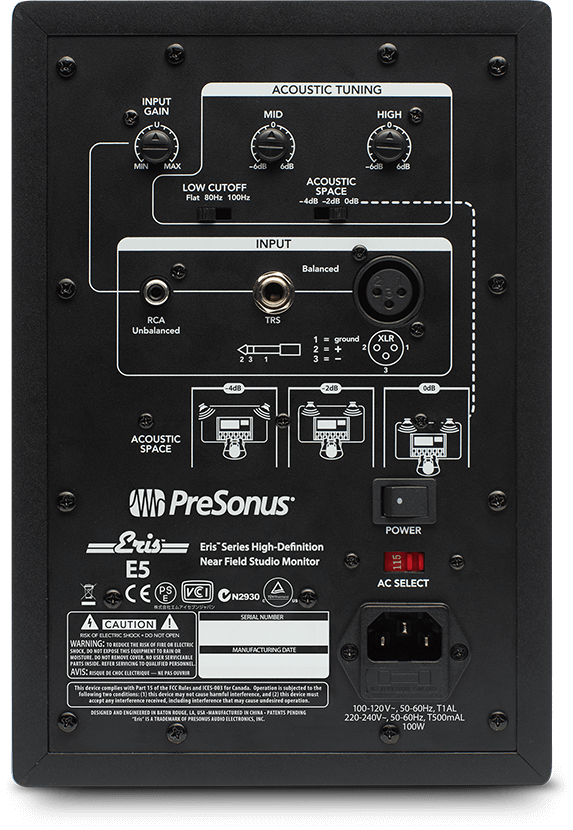

Today’s music producers deal with a wide variety of musical genres and often work in challenging mixing environments. That’s why Eris-series studio monitors offer extensive acoustic tuning controls. The three-position Acoustic Space switch helps to compensate for the boundary bass boost that can occur when a monitor is placed in a corner or near a wall. High and Mid controls help to further mitigate room anomalies. A Low Cutoff filter makes it easy to integrate a Temblor® subwoofer into your monitor setup.
Connect to virtually any line-level source.

With three different types of audio inputs, it’s easy to feed audio to your Eris monitors from an audio interface, mixer, monitor controller, or almost any other line-level source. Eris E5 monitors provide balanced XLR, balanced ¼” TRS, and unbalanced RCA line-level inputs. With this selection, you’ll have no problem hooking your Eris speakers up to virtually any line-level source.
Smooth high end.

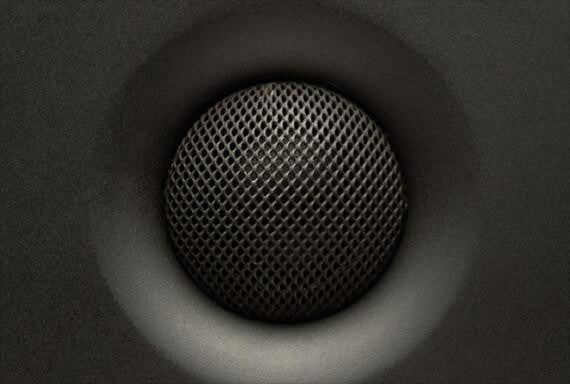

Each Eris monitor is equipped with a silk dome tweeter designed to radiate sound with a wide dispersion pattern, creating a larger sweet spot. The result is a smooth and refined sound that accurately reproduces transients and high frequencies.Features
Components and construction

5.25-inch Kevlar® low-frequency transducer
1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
Front-firing acoustic port for superior bass-frequency reproduction
Optimized, resonance-suppressing internal bracing
102 dB maximum continuous SPL

User controls

HF Driver Adjust (±6 dB, continuously variable)
Midrange Driver Adjust (±6 dB, continuously variable)
Acoustic Space settings (flat, -2, -4 dB) for accurate mixing contour
Highpass filter (Off, 80 Hz, 100 Hz)

Power and safety

70 watt, Class AB biamplification
RF interference, output current limiting, over-temperature, transient, and subsonic protection
Amplifier “soft start” feature eliminates popping on power-up
Internal power supply with IEC connector
Power switch with on/off LED

Inputs and outputs

Balanced XLR/¼-inch
Unbalanced RCA inputs

Technical Specifications
Inputs

1- Balanced XLR
1- Balanced ¼” TRS
1- Unbalanced RCA
Performance

Frequency Response 53 Hz - 22 kHz
Crossover Frequency 3 kHz
LF Amplifier Power 45W
HF Amplifier Power 35W
Peak SPL (@ 1 meter) 102 dB
LF Driver 5.25” Kevlar®
HF Driver 1” silk dome
Input Impedance 10 kΩ
User Controls

Volume Range A-type taper
MF Control -6, 0, +6 dB
HF Control -6, 0, +6 dB
Low Cut Flat, 80 Hz, 100 Hz
Acoustic Space Flat, -2 dB, -4 dB
Protection

RF interference
Output-current limiting
Over-temperature
Turn-on/off transient
Subsonic filter
External mains fuse
Power

100-120V ~50/60 Hz or 220-240V ~50/60 Hz
Cabinet

Vinyl-laminated, medium-density fiberboard
Physical

Width 7” (178 mm)
Depth 7.68” (195 mm)
Height 10.24” (260 mm)
Weight 10.2 lbs (4.63 kg)
