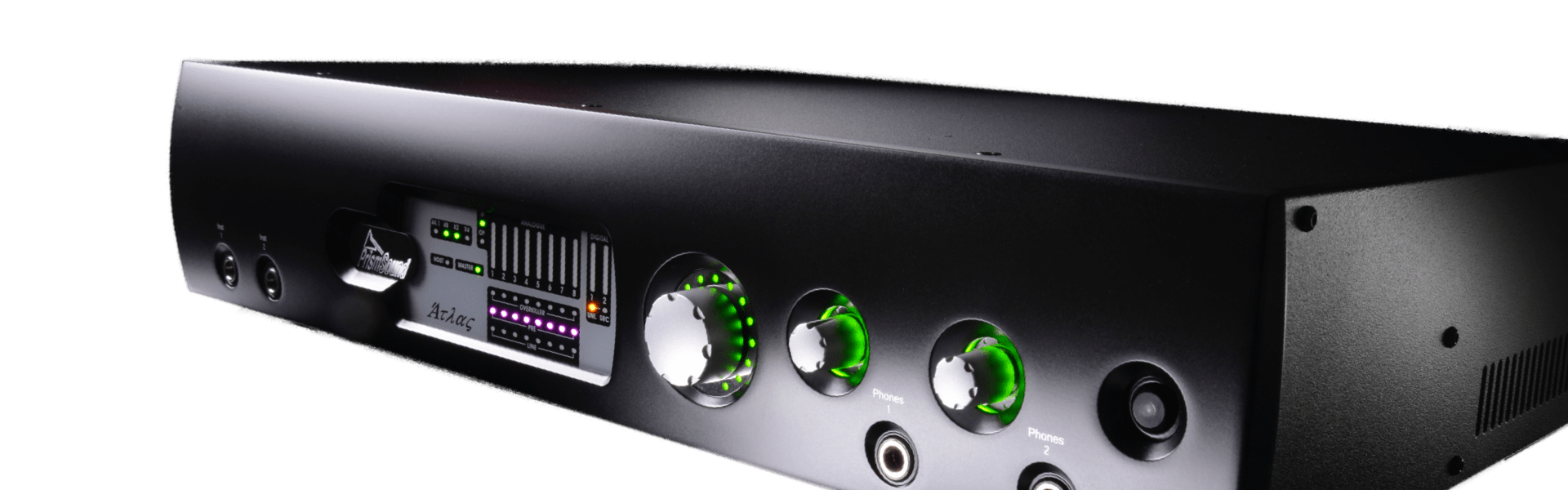

Atlas

Reference Grade Expandable Production Interface


Atlas and Titan are world class multi-track interfaces offering flexible expansion and unsurpassable sonic clarity. Using the latest generation of Prism Sounds trusted conversion, Atlas provides more preamps than Titan making it suitable for a wider range of recording scenarios.

MDIO

Multi-channel I/O Expansion


Atlas & Titan support Prism Sound’s MDIO expansion cards, which provide alternative “host” connections. The “host” is usually a computer and the Atlas or Titan interface provides a means of connection between the host and the external analogue and digital audio I/O ports.

The MDIO expansion slot provides an alternative host connection. It does not necessarily disable the USB port, but in the case of the Pro Tools interface MDIO-PTHDX, the USB port is switched off when the Pro Tools interface is to be used.

Software


Atlas’ front panel gives continuous visual indication of the unit’s main settings and levels, but in-depth control is managed from the Atlas Controller applet. This runs on the DAW computer, and can be popped up whenever adjustments are needed.
The upper area of the applet shows a panel of ‘Global’ settings for the entire group of connected interfaces, and a panel of ‘Unit’ settings which is assignable to each connected unit in turn, using the enclosed drop-list. These settings are concerned with general parameters such as sync source and sample rate selection, metering and buffering modes. An ‘Identify’ button causes all the LEDs on the selected box to light, to assist with identification in multi-unit systems. To the right, there are large buttons for loading and saving setups, and for on-line help.

Dimensions

2U 19inch rack mountable
(rubber feet and rack ears supplied)

Table top (inc feet): W: 440mm D: 290mm H: 95mm

Rack-mount (inc ears):
W: 483mm D: 290mm H: 88mm

Power

90-250VAC, 50/60Hz internal power supply

IEC 6A connector

35W 0.5A(T) 20mm ceramic fuse

Inputs

8 x combo connectors with XLR sockets for mic input and 6.3mm TRS jack sockets for line input (balanced or unbalanced)

1 x RCA

1 x TOSLINK for S/PDIF or ADAT Optical input

Outputs

8 x 6.3mm TRS jack sockets (balanced or unbalanced)

1 x RCA

1 x TOSLINK for S/PDIF or ADAT Optical output
