28HP Eurorack Delay Effects Module

Interstellar Space Machine.

Create expansive soundscapes and evolving, otherworldly tones. Add layers upon layers of harmonic and rhythmic complexity within an enveloping stereo field. Infuse your rack with vintage warmth and retrofuturistic soul.

Tape Delay, Looper, And More.

Packed with powerful features while maintaining intuitive playability, Magneto is a stereo multi-head tape delay that also functions as a looper, phrase sampler, vintage spring reverb unit, phase-aligned clock multiplier, chaotic oscillator, zero latency sub-oscillator and more, with extensive CV I/O.

Transform Your Modular.

Turn simple monophonic signals into complex orchestrations. Create new oscillator tones using self-oscillation. Add rich stereo dimension to your sound, and enjoy the inherent warmth and sweet, subtle distortion characteristics of magnetic tape. Magneto transforms even the smallest rack into a fully expressive, immersive instrument.

Vintage Vibe.

To capture the full experience and complexity of a vintage tape echo machine, every last tape system attribute was relentlessly studied and faithfully recreated. From the sought-after natural saturation and soft clipping of magnetic tape when driven hard, to hands-on real-time controls for tape age, tape crinkle, and mechanical wow and flutter, Magneto delivers a rich multi-head delay experience that adds life and vibe to your sound.

Play It Like An Instrument.

Every function, control, gain stage, and signal path component in Magneto works together to respond musically and smoothly, even during the wildest live modular improvisations. All this is combined with a luxurious spring reverb to take the sound of your modular setup to a new level, and your sonic explorations into far-out territories.

Warm Up Your Rack

Not only does Magneto deliver the warm, luscious delay signals that tape delays are known for, it is also capable of a high degree of saturation. Turn up the Record Level knob to send a hot signal to the record head for any amount of tape saturation you desire. Turn up the Tape Age control for warmer repeats. Add some truly beautiful Spring Reverb. Magneto adds organic heart and soul to the sound of your modular.

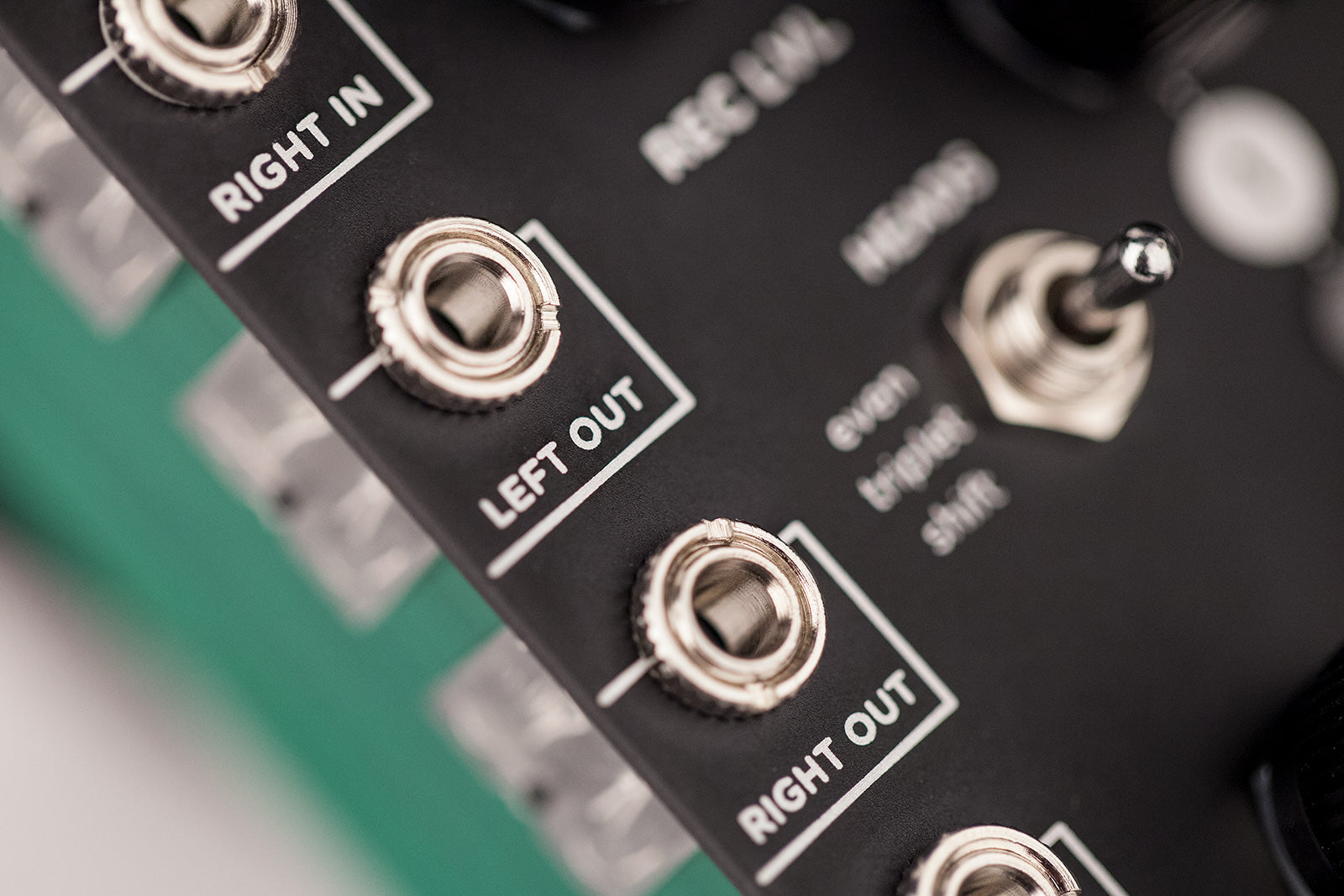

Completely Analog Dry Path.



In a typical digital effect the dry signal gets converted to digital, causing conversion noise and latency. Signals are often attenuated before combining digital dry and wet, with makeup gain amplifying the conversion noise. To avoid this terrifying scenario, we’ve equipped Magneto with a completely analog dry path. Why go to all this trouble? Because the improvements in dynamic range and reduction in noise are so dramatic.

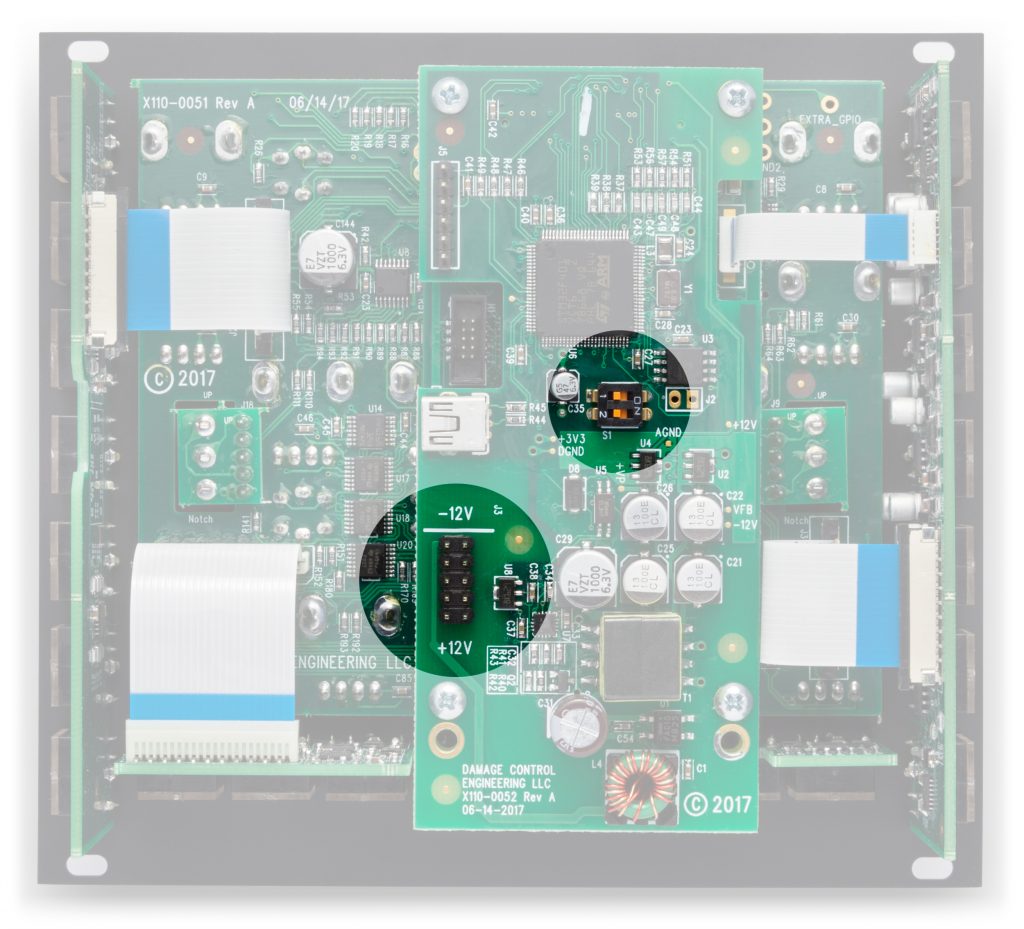

Insanely Powerful DSP.

We’ve outfitted Magneto with the incredibly powerful Analog Devices SHARC ADSP-21369 processor, which provides a 366 MHz core instruction rate, and an incredible 2.4 Gigaflops of peak performance. Thanks to this high-powered technology platform within Magneto, we had the freedom to craft our processor-intense tape echo algorithms without compromise.



Specs

Sound Design.

• Tape-voiced delay machine with four playback heads and one record head
• Processor-intense dTape algorithm delivers meticulously nuanced recreations of vintage tape echo systems
• Three operational modes: Echo, Sound On Sound Looper, Phrase Sampler
• Varispeed algorithm with dynamic machine mechanics, 8:1 speed range
• Input record level for clean reproduction to warm, fat saturation
• Self-oscillating for tone generation
• Independent Spring Reverb



       Control.

• Dedicated control over tape mechanics, machine health, and tone: Low Cut, Tape Age, Crinkle, Wow & Flutter
• Transport controls (buttons and CV inputs) for real-time performance options
• Individual Playback Head Level controls
• Individual head Feedback assignment independent of playback level
• Three stereo head panning options, including user-defined custom panning
• Phase aligned clock out (CLK OUT) CVs synched with clock in (CLK IN) CV
