Premium Rackmount MADI-to-SoundGrid Interface
features

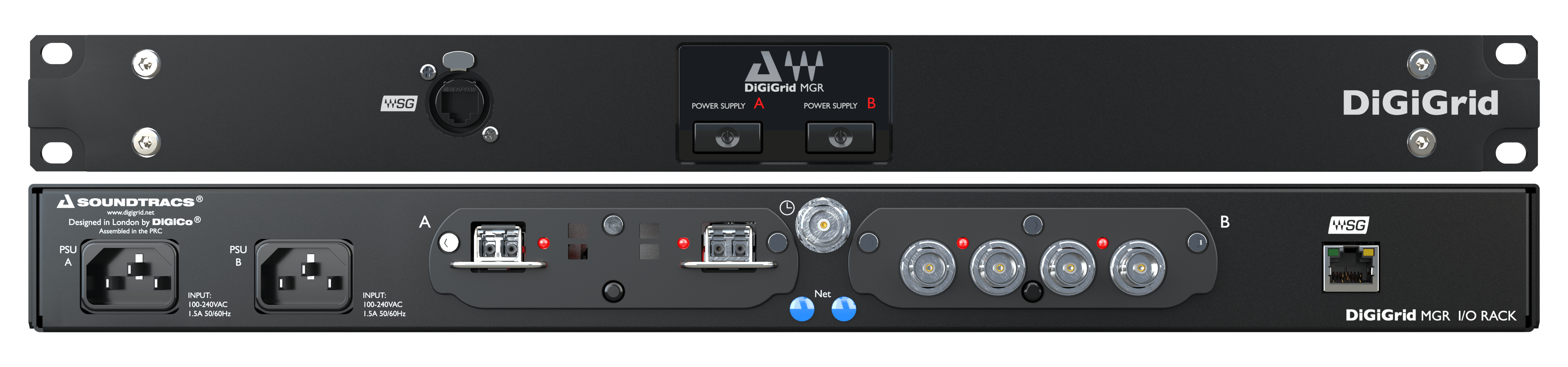

Housed in a 1U chassis, with redundant power supplies and a built-in network switch, DiGiGrid MGR is the premium solution for high-channel-count MADI recordings—up to 128 channels at 96 kHz. The MGR ships as a Quad BNC MADI interface, or install an optional optical MADI card.

The built-in network switch provides front- and rear-mounted SoundGrid ports, to allow redundant recordings with no additional hardware. Or, use the extra port to connect more SoundGrid devices.

  • Optional optical MADI card available
  • Quad BNC MADI-to-SoundGrid audio interface
  • Record to multiple computers simultaneously
  • Plug any MADI-enabled device into SoundGrid
  • Dual redundant power supplies for mission-critical applications
  • Record, process (with server), play back up to 128 channels at 96 kHz
  • Compatible with the SoundGrid Studio ASIO/Core Audio drivers
  • Built-in SoundGrid network switch with dual SoundGrid ports
  • Optional SoundGrid DSP server adds real-time plugin processing
  • Compatible with eMotion LV1, SuperRack, and SoundGrid Studio

Support

General

  • 1U rackmount
  • Quad MADI interface
  • Fitted with dual MGB MADI I/O Modules as standard
  • Optional MGO module for Optical MADI support
  • Supported sample rates: 44.1, 48, 88.2, 96 kHz
  • 224/256 channel I/O @ 48kHz
  • 112/128 channel I/O @ 96kHz
  • Support for 64ch and 56ch modes
  • Support for double wire (48k frame) and single wire (96k frame) @ 96kHz
  • Clock Synchronization via (in fallback order): Word Clock input, MADI (port A), SoundGrid (SoE), Internal
  • 2 SoundGrid ports (RJ45)
  • Dual AC input with redundant operation
