Price
$1,799
Taxes and shipping calculated at checkout

Stock Notification

Get notified when this product is available again

Frequently Bought Together

Have a question?
One-C is a compact, lightweight and durable DSP unit, custom-designed and optimized to relieve your computer of plugin processing. Run hundreds of Waves plugins in real time, live or in the studio — using only half the width of a standard rack.

Whether you're mixing a live show or tracking overdubs in the studio, real-time plugin processing is a must. The One-C server gives you exactly that and does it at lightning-fast speeds: latency as low as 0.8 ms at 44.1, 48, 88.2 and 96 kHz.

The latest generation of Waves’s SoundGrid servers boasts a new sleek industrial design built for elegance and durability. One-C now features LED indicators for easy network and temperature monitoring, plus sturdy RAM positioning that secures your mixing experience wherever you are.

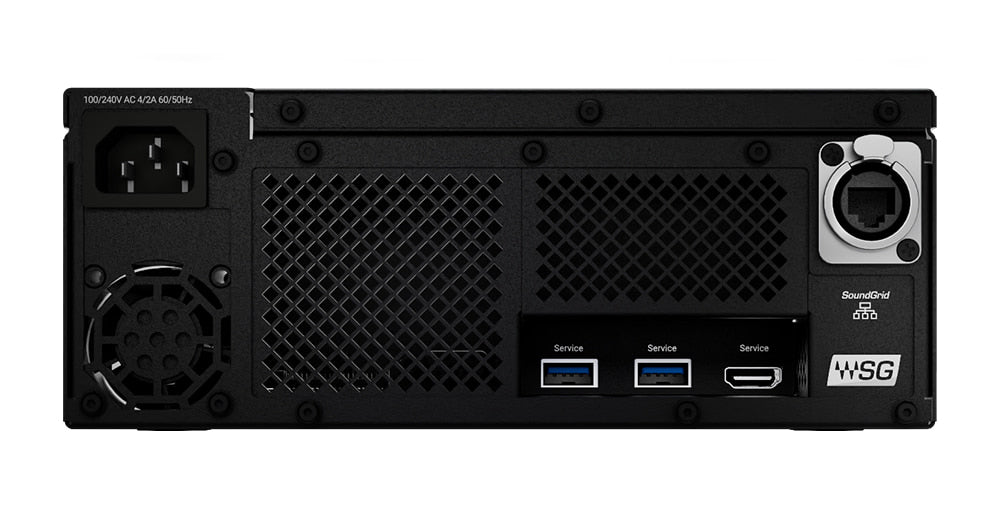

One-C is fitted into a rugged all-metal 2U casing which is only half the width of a standard 19-inch rack. You can rack-mount a single server using rack ears, or mount two servers side-by-side using a rack shelf.

Small enough so you can easily take it with you to any production or session, the One-C server allows you to mix plugin-rich sessions anywhere you go.
  • Adds more processing power to your system
  • Ultra-low latency: as low as 0.8 milliseconds at 44.1, 48, 88.2 and 96 kHz
  • Quiet fan design: fan speed auto-adjusts based on CPU temperature
  • NEW: Powerful Intel® 10th Generation i3-10300
  • NEW: Sleek new industrial design
  • NEW: Enhanced with sturdy RAM positioning for added reliability
  • NEW: LED indicators for easy network & temperature monitoring
  • Rugged Neutrik etherCon connector
  • 8 GB RAM
  • Use with any SoundGrid interface (including DiGiGrid I/Os)
  • Use with non-SoundGrid I/Os (ASIO/Core Audio) via SoundGrid Connect:
  • Free 1-year warranty; Extended warranties available



Actual product may differ from images due to design changes/enhancements.



  • Tech Specs

SuperRack & MultiRack Benchmarks

Benchmarks listed as per devices sold prior to Feb 2022. Final benchmarks for new generation devices TBD.

The table below indicates the number of plugin racks and plugins that can be inserted into SuperRack or MultiRack and loaded to the One-C SoundGrid Server before the system reaches DSP overload (85%) or fails to play audio fluently (clicks, dropouts, corruption).




(all

stereo

Racks)

 Plugins

Sample

Rate

SGS

buffe

size

 Results

CPU

Peak

CPU

Average

 Instances
16 Racks API 2500 48 kHz 40 26 24 128 (max)
96 kHz 80 48 47 128 (max)
C6 48 kHz 40 85 72 123
CLA2A 48 kHz 40 57 50 128 (max)
DBX160 48 kHz 40 83 81 49

Ren

Channel

 48 kHz 40 46 38 128 (max)
SSL E-Channel 48 kHz 40 21 18 128 (max)
H-Reverb 48 kHz 40 79 51 9
H-Delay 48 kHz 40 40 33 128 (max)
Ren-Verb 48 kHz 40 85 68 123
F6 48 kHz 40 47 42 128 (max)
J37 48 kHz 40 82 78 52
32 Racks API 2500 48 kHz 40 52 49 256 (max)
96 kHz 80 84 82 204
C6 48 kHz 40 83 76 126
CLA2A 48 kHz 40 85 77 197
DBX160 48 kHz 40 85 83 45

Ren

Channel

 48 kHz 40 80 70 256 (max)
SSL E-Channel 48 kHz 40 40 34 256 (max)
H-Reverb 48 kHz 40 77 35 8
H-Delay 48 kHz 40 67 58 256 (max)
Ren-Verb 48 kHz 40 85 67 122
F6 48 kHz 40 85 76 238
J37 48 kHz 40 85 74 44
64 Racks API 2500 48 kHz 40 85 80 380
96 kHz 80 84 81 202
C6 48 kHz 40 80 73 126
CLA2A 48 kHz 40 84 84 221
DBX160 48 kHz 40 85 84 46

Ren

Channel

 48 kHz 40 85 76 279
SSL E-Channel 48 kHz 40 73 66 512 (max)
H-Reverb 48 kHz 40 80 37 6
H-Delay 48 kHz 40 85 75 333
Ren-Verb 48 kHz 40 85 67 121
F6 48 kHz 40 80 79 251

The maximum number of plugins that can be tested given system limitations is 512 (64 MultiRacks) for either mono or stereo. Plugin benchmark results may vary slightly from one system setup to another. While most plugins perform most efficiently at 44.1 kHz, a few perform as or even more efficiently at 96 kHz thanks to their upsampling or to algorithms that do not depend on sample rates.

* Plugin’s peak DSP usage level is much higher than its average level. Make sure to monitor peak levels on the DSP meter.

** Plugin introduces high latency.

StudioRack Benchmarks

Benchmarks listed as per devices sold prior to Feb 2022. Final benchmarks for new generation devices TBD.

The table below indicates the number of plugins that can be inserted into StudioRacks and loaded to the One-C SoundGrid Server before the system fails to play audio fluently (clicks, dropouts, corruption).
One-C SoundGrid Server v3
(StudioRack v9.7.99.52)
Plugin 44.1kHz 96kHz
API 2500 (mono) 470 230
API 550 (mono) 512 436
API 560 (mono) 98 85
AudioTrack (mono) 512 512
C6 Multiband Compressor (mono) 120 58
CLA-2A Compressor / Limiter (mono) 264 118
CLA-3A Compressor / Limiter (mono) 304 125
CLA-76 Compressor / Limiter (mono) 512 229
CLA MixHub (mono) 47 49
CLA MixHub Lite (mono) 56 62
dbx® 160 Compressor / Limiter (mono) 50 54
DeEsser (mono) 512 512
Dorrough (stereo) (stereo) 256 256
H-Comp Hybrid Compressor (mono) 512 253
H-Delay Hybrid Delay (mono) 374 151
H-EQ Hybrid Equalizer (mono) 130 126
H-Reverb Hybrid Reverb (stereo)* 12 8
IR1 Convolution Reverb (stereo)* 54 17
IR-Live Convolution Reverb (stereo)* 73 34
InPhase (mono)** 512 480
J37 Tape (mono) 58 62
Kramer HLS Channel (mono) 126 79
Kramer Master Tape (mono) 63 30
L2 Ultramaximizer (mono) 492 252
LoAir (mono) 424 246
MaxxVolume (mono) 512 316
NLS Non-Linear Summer (mono) 208 95
PuigChild Compressor (mono) 240 117
PuigTec EQP1A (mono) 212 112
REDD 17 (mono) 90 38
Renaissance Bass (mono) 350 173
Renaissance Channel (mono) 384 228
Renaissance Compressor (mono) 512 512
Renaissance Equalizer (REQ6) (mono) 512 512
Renaissance Reverb (stereo) 148 64
Renaissance Vox (mono) 512 512
Scheps 73 (mono) 136 146
SSL E-Channel (mono) 512 284
SSL G-Channel (mono) 512 280
SSL G-Equalizer (mono) 512 512
SSL G-Master Buss Comp (mono) 512 292
TG 12345 (mono) 38 40
TransX Multi (mono) 336 174
TransX Wide (mono) 512 512
Vitamin Sonic Enhancer (mono) 116 60

The maximum number of plugins that can be tested given system limitations is 512 (mono) or 256 (stereo) (64 or 32 StudioRacks, respectively). Plugin benchmark results may vary slightly from one system setup to another. While most plugins perform most efficiently at 44.1 kHz, a few perform as or even more efficiently at 96 kHz thanks to their upsampling or to algorithms that do not depend on sample rates.

* Plugin’s peak DSP usage level is much higher than its average level. Make sure to monitor peak levels on the DSP meter in the eMotion ST mixer.

** Plugin introduces high latency.

eMotion LV1 Benchmarks

Benchmarks listed as per devices sold prior to Feb 2022. Final benchmarks for new generation devices TBD.

The tables below show the server’s CPU peaks (in percentages) when used with the eMotion LV1 mixer (v9.10.0.6), given different server latency settings and different LV1 channel counts.
eMo plugins (eMo D5, F2, Q4) inserted on all input, aux & bus channels
Sample Rate – 48 kHz
One-C SoundGrid Server Latency 40 samples 80 samples 160 samples
One-C SoundGrid Server CPU peak 64 channels Latency mode 54% 45% 41%
DSP mode 52% 43% 40%
One-C SoundGrid Server CPU peak 32 channels Latency mode 36% 29% 25%
DSP mode 33% 27% 24%
One-C SoundGrid Server CPU peak 16 channels Latency mode 18% 14% 12%
DSP mode 16% 13% 11%
eMotion LV1 without eMo plugins
Sample Rate – 48 kHz
SoundGrid Server Latency 40 samples 80 samples 160 samples
One-C SoundGrid Server CPU peak 64 channels Latency mode / DSP mode 21% 11% 6%
One-C SoundGrid Server CPU peak 32 channels Latency mode / DSP mode 12% 6% 3%
One-C SoundGrid Server CPU peak 16 channels Latency mode / DSP mode 6% 3% 2%

CPU: Intel® i3-10300

RAM: 8 GB

Motherboard: Gigabyte GA-IMB410N

LAN Card: Intel® I211

Dimensions

Length: 22 cm / 8.7 in
Height: 8.6 cm / 3.4 in
Depth: 28.4 cm / 11.2 in
Device Weight: 3.4 kg / 7.5 lb
Package Weight: 5 kg / 10.9 lb

Power Consumption:

110/220V 65 W

Operating Environment temperature range:

50° to 95°F / 10° to 35°C

Max Environment temperature:

104°F / 40°C
