Adam Audio Sub7

Adam Audio ADAM Sub7

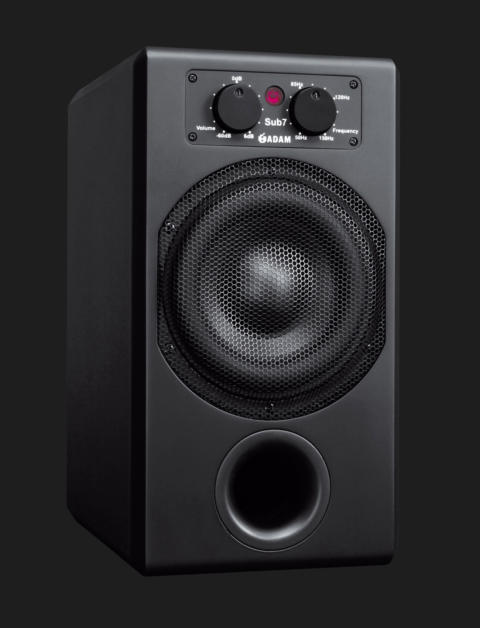

The Sub7 has been designed to complement smaller monitors such as the AX-Series. Its small footprint allows for easy placement, even in small environments. The included remote control facilitates volume changes or crossover frequency adjustments from your favorite listening position.

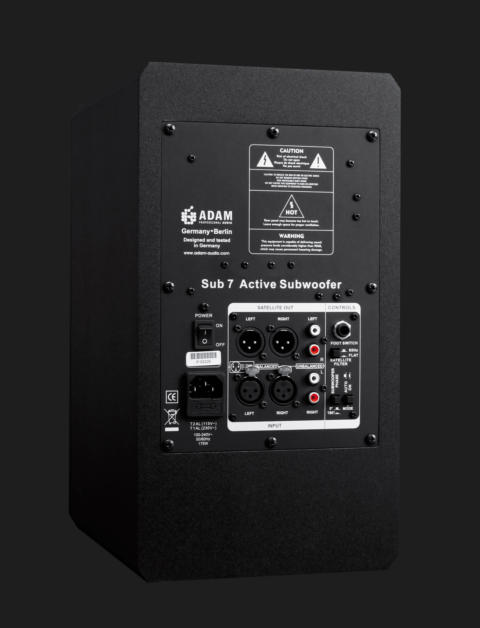

The Sub7 is equipped with both balanced (XLR) and unbalanced (RCA) input and output connectors, allowing the Sub7 to be used in home or studio environments. Numerous control options allow for many and varied adjustments to room acoustics or the satellites used.

The low cutoff frequency of 32Hz (-3dB) enables this subwoofer to reproduce even the lowest frequencies with accuracy and realism.

7“ Subwoofer (paper)
Amp. Power RMS / Music: 140 W / 210 W
Frequency Response: 32 Hz - 150 Hz
Max. peak SPL at 1 m: ≥107 dB
Remote Control

Features & Benefits

• Linear bass reproduction down to 32 Hz
• Ideal addition to smaller nearfield monitors
• Maximum Peak sound pressure in 1 m ≥ 107 dB
• Powerful, compression-free sound reproduction even at very high sound levels
• High efficiency PWM amplifier
• Low-distortion amplification at both low and high volume levels
• Special 7" woofer with paper diaphragm
• Unrestricted bass reproduction for low-fatigue operation
• Easy manual or automatic (de-)activation (via optional foot switch)
• If desired, monitoring is possible without the low frequencies
• Upper cut-off frequency is selectable between 50 to 150 Hz
• Allows optimal adaptation of the total system on the bass performance of the satellites
• Connectable high-pass filter for the satellite outputs, which blocks signals below 85 Hz
• Dolby®- Fair reproduction of film sound
• Discharging the satellites from the low frequencies
• Remote control (contained in the delivery contents)
• Comfortable control in any situation
• Analog XLR and RCA inputs
• Optimized for balanced and unbalanced line signals
• Small footprint
• Flexible positioning in room for optimal sound results
• 2 years warranty with optional extension to 3 years with the registration of the product
• Full repair service if required for 5 years

Technical Data

• Subwoofer
• Number    1
• Basket Ø    7" (178 mm)
• Voice Coil Ø    1.5" (38 mm)
• Cone Material    Paper
• Built-in Amplifiers
• Subwoofer    1
• Type    PWM
• Amp. Power RMS / Music    140 W / 210 W
• Control Panel
• EQ 80 Hz    -60 to +6 dB
• Input Connectors
• Analog    XLR / RCA
• General Data
• Frequency Response    32 Hz - 150 Hz
• THD > 60 Hz    ≤1 %
• Max. peak SPL at 1 m    ≥107 dB
• Crossover Frequencies    50 - 150 Hz
• Input Impedance    10 kOhm
• Panel    Front
• Weight    17.6 lb (8 kg)
• Height x Width x Depth    14.5" (370 mm) x 8" (200 mm) x 11" (280 mm)
• Warranty    5 years (2 years warranty plus 3 years optional with product registration) (2 years warranty plus 3 years optional with product registration)
• Delivery Contents    Remote control, batteries (2 x AAA), power cord, manual
