Flock Audio | Patch XT 192-point Digitally Controlled Analog Patchbay

Patch XT 192-point Digitally Controlled Analog Patchbay

Features:

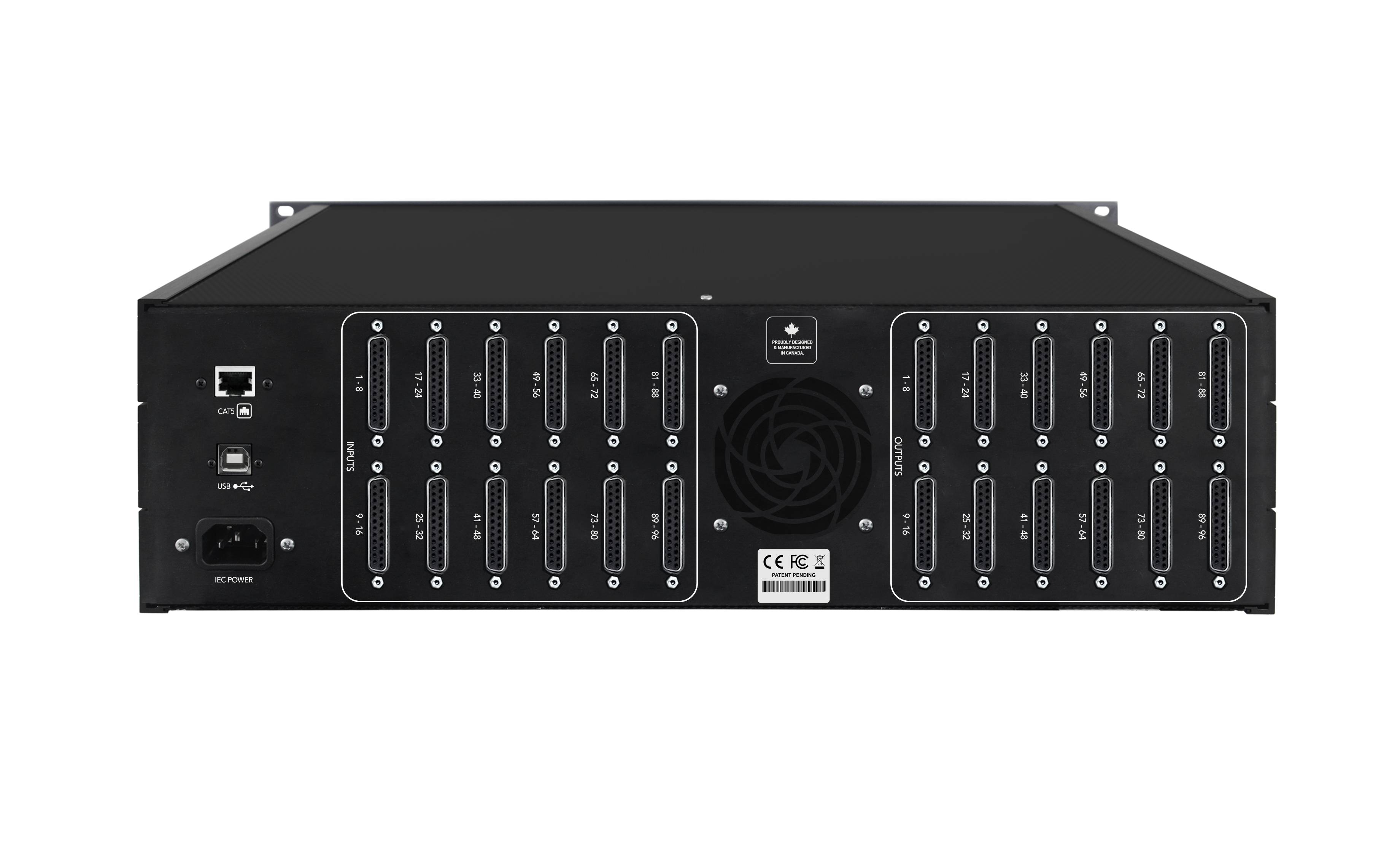

• 192 Point Connections (96 Inputs / 96 Outputs)
• DB-25/D-SUB Tascam Standard Pinout Format Connectors
• 32 Assignable Independent Channels of 48V Phantom Power

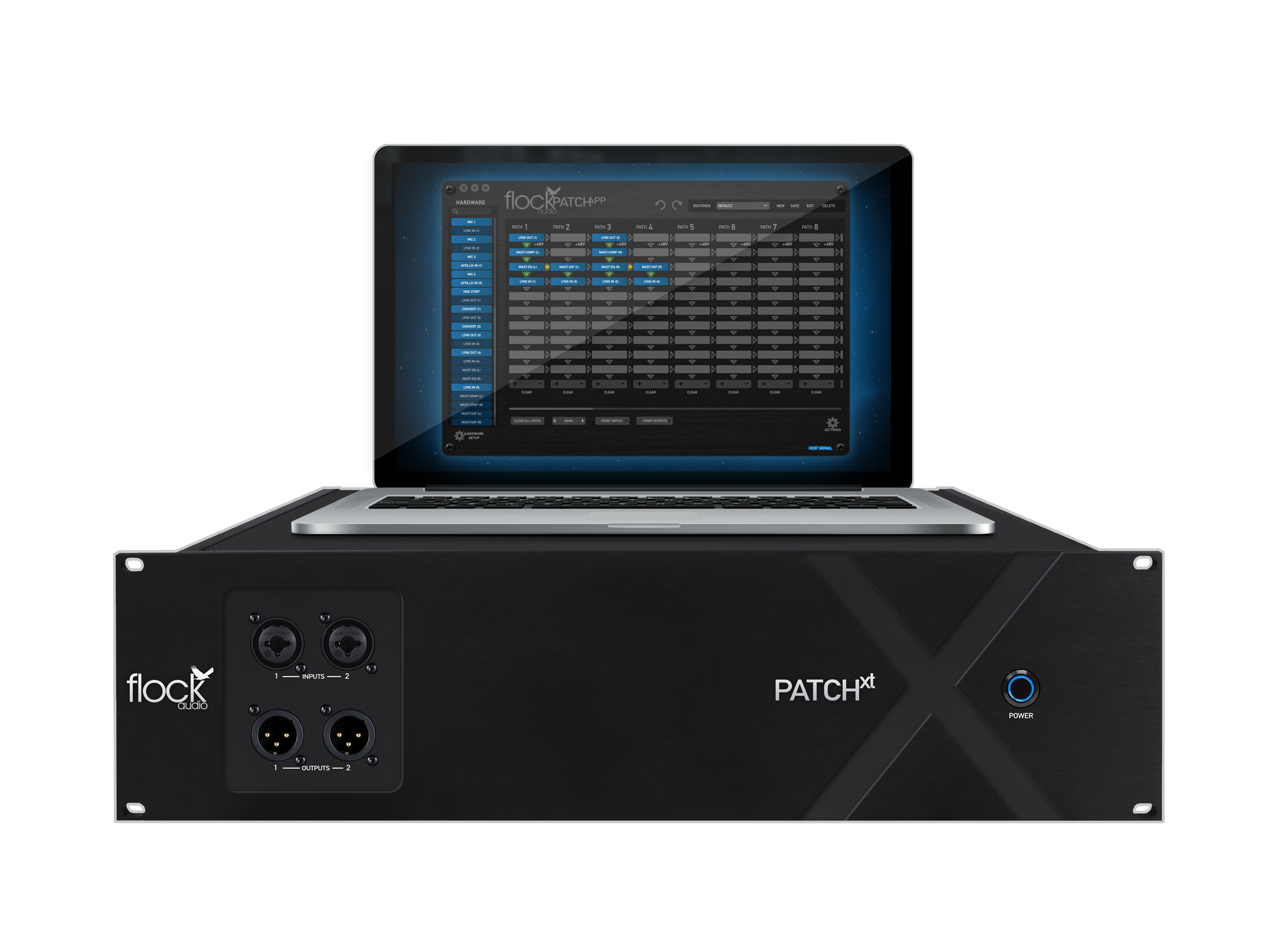

• Front Panel - 2 Combo TRS/XLR Input & 2 XLR Output
• PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon)
• Create, Store & Recall Routings in Seconds
• Create Complex Multing Combinations w/ No Impedance Issues
• No AD/DA Conversion, 100% Transparent Analog Signal Path
• Remote Sleep/Wake Mode Control of PXT Hardware
• Patented Flock Audio Matrix Technology
• Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
• Internal Power Supply w/ IEC Cable Included
• 6 Ft. - USB 2.0 (USB-A to USB-B) Threaded Securement - Cable Included
• CAT5 Network (Optional Control) Capability (Cable Not Included)
• Unit Dimensions: 3U - 5.25”(H) x 19” (L) x 13” (D) - 35 lbs
• Optional Rear mount Cable Hanger Accessory (Product Code: XTH)
