IsoAcoustics V120 MOUNTING OPTIONS: IsoAcoustics V120 Ceiling and Wall Isolation Mount
Price
$159.99
Taxes and shipping calculated at checkout
IsoAcoustics V120 MOUNTING OPTIONS: IsoAcoustics V120 Ceiling and Wall Isolation Mount

Stock Notification

Get notified when this product is available again

Frequently Bought Together

Have a question?


V120

Ceiling and wall isolation mount for studio monitors


adaptor 3-2 transparent





INTRODUCTION

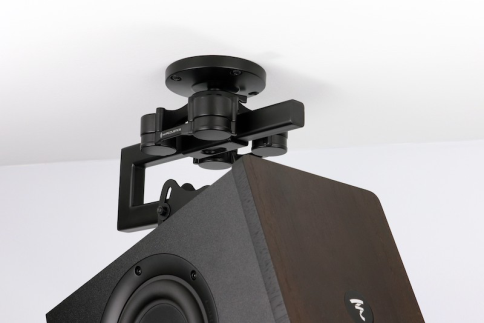

V120 Mount: the versatile solution for studio monitor isolation



Featuring IsoAcoustics award winning isolation technology, the V120 Mount decouples studio monitors from wall and ceiling structures, mitigating structure borne vibrations from exciting the supporting surfaces. The result is more natural and transparent sound with greater clarity and openness.

The V120 isolation mount is adaptable to wall mount and ceiling structures and is designed to be compatible with many studio monitors weighing up to 40lbs (18.1kg).




KEY FEATURES


ISPx0AsB

Install on wall, ceiling, truss or unistrut


The V120 Mount can be easily installed for wall and ceiling applications using IsoAcoustics mounts or by adapting to third-party mounts and assemblies, like truss and unistrut channels.
Ceil Mount Arrows 3

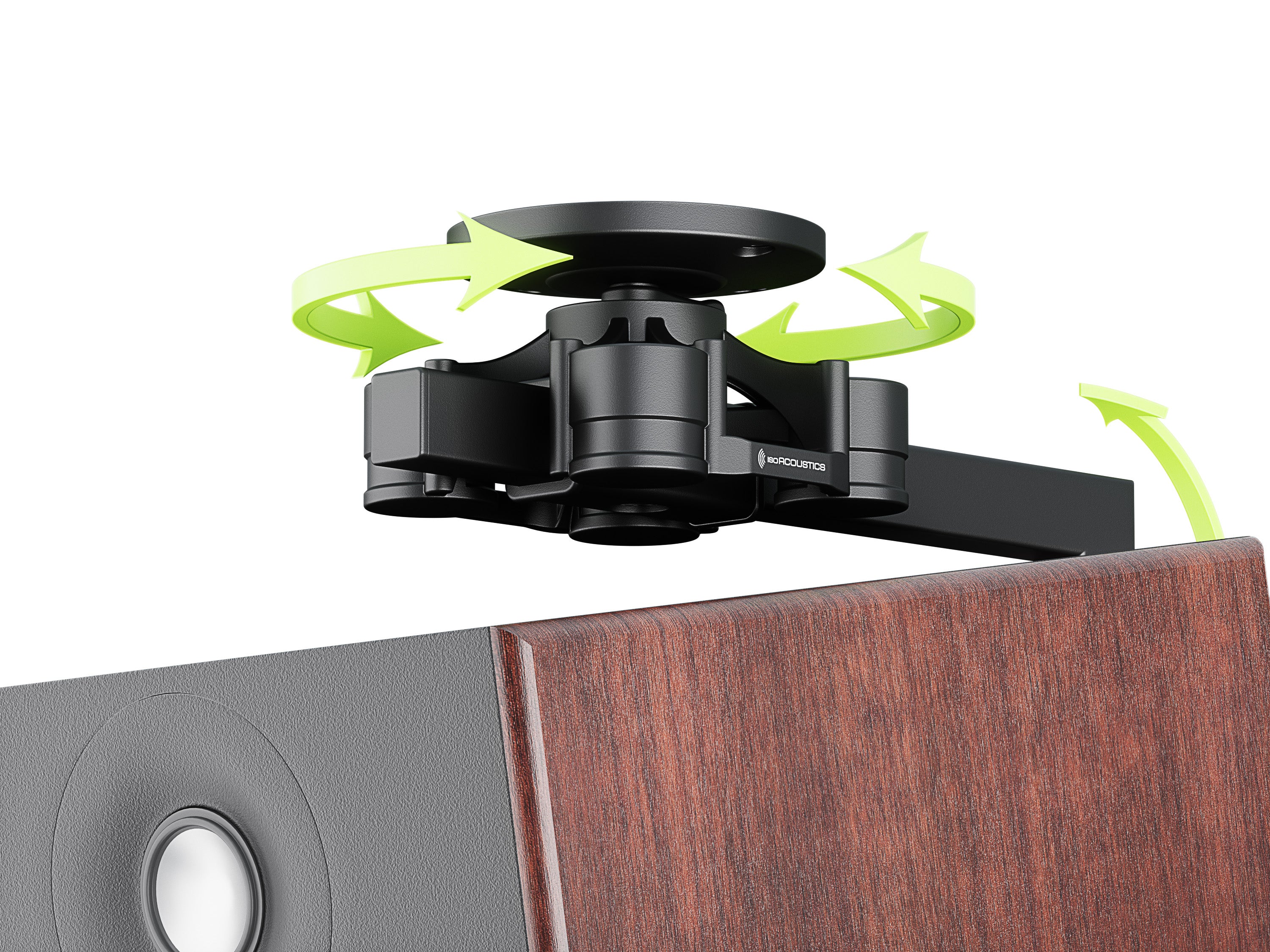

360° of rotation, up to 90° tilt


The V120 Mount provides 360 degrees of horizontal rotation and vertical tilt adjustment so that studio monitors can be oriented to be facing forwards or downwards, and can be tilted to allow easy adjustment for focusing monitors.
V120 isolation cutaway transparent-2

Studio monitor isolation


The IsoAcoustics V120 mitigates the transfer of vibration into the supporting structure and cavities, reducing the excitation of the supporting structure, the transfer of energy through the structure and the conduction of vibrations back into the speaker.


INSTALLATION

How to install and configure your V120 Mount setup

The V120 comes with a 4” ceiling plate that can be directly fastened to the ceiling or other flat surfaces. Alternatively, the ceiling plate can be removed, allowing the V120 mount to be attached to other support structures including wall brackets, unistrut channel and truss systems, using IsoAcoustics mounting adapters (sold separately).



Studio monitors are attached to the V120 bottom flange, or alternatively, the Bottom Flange can be removed, and the Sliding Bracket (sold separately) can be inserted that provides the tilt adjustable connection for studio monitors. The Sliding Bracket provides easy adjustment to keep the studio monitors weight balance below the isolators for optimum performance. Adapters and brackets will be available for the common studio monitors weighing 40lbs or less.


Our on-line calculator will provide an easy reference to determine components are required to configure a Make/Model studio monitor for a wall or ceiling installation using IsoAcoustics or other third-party mounts.






SPECIFICATIONS


Dimensions (W x H x D)
4.6” x 4.6” x 3.5”(117 x 117 x 90mm)

Weight Capacity 40 lbs (18.1 kg)

Quantity 1 Mount (Single)

Material Aluminum

Colour Black

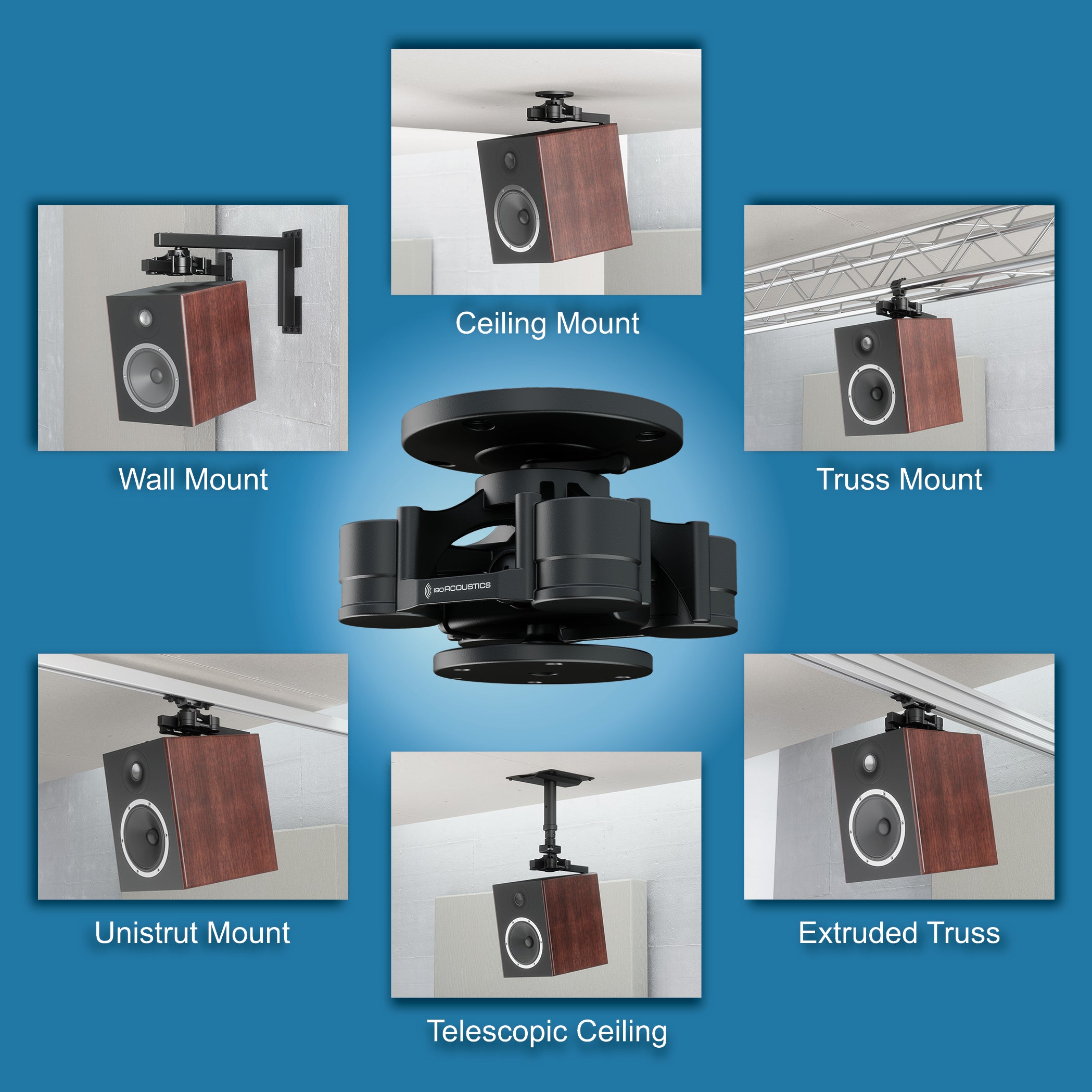

MOUNTING OPTIONS


Ceiling Generic 1 transparent

Ceiling mount


  • V120 isolation technology
  • Mount directly to the ceiling
  • Use IsoAcoustics speaker brackets to tilt and rotate your speakers to the angle required
Telescope Generic 3 transparent

Telescopic Ceiling Mount


  • V120 isolation technology
  • Use the V120 Keyhole Adapter to mount your speakers to a telescopic ceiling mount
  • Use IsoAcoustics speaker brackets to tilt and rotate your speakers to the angle required
Ceil Mount Ushape 8 transparent

U-Bracket Mount​​


  • V120 isolation technology
  • Connect a speaker U-Bracket to the V120 using the U-Bracket Adapter
  • 360° rotation and tilt adjustment
L-Br-Env-4

IsoAcoustics Wall Mount


  • V120 isolation technology
  • Mount your speakers to the wall using the IsoAcoustics Wall Mount
  • Use IsoAcoustics speaker brackets to tilt and rotate your speakers to the angle required
UniStrut Generic 1 transparent-2-2

Unistrut Mount


  • V120 isolation technology
  • Attach the V120 to unistrut using M10 unistrut channel nuts
  • Use IsoAcoustics speaker brackets to tilt and rotate your speakers to the angle required
Strut Generic 1

Truss Mount


  • V120 isolation technology
  • Attach the V120 to truss systems using the IsoAcoustics Truss Clamp
  • Use IsoAcoustics speaker brackets to tilt and rotate your speakers to the angle required
ExtrStrut Generic 2

Extruded Truss Mount


  • V120 isolation technology
  • Attach the V120 to extruded truss using slide-in M10 T-nuts
  • Use IsoAcoustics speaker brackets to tilt and rotate your speakers to the angle required



BRACKETS & ADAPTERS



Mount the V120 to the wall, ceiling or truss

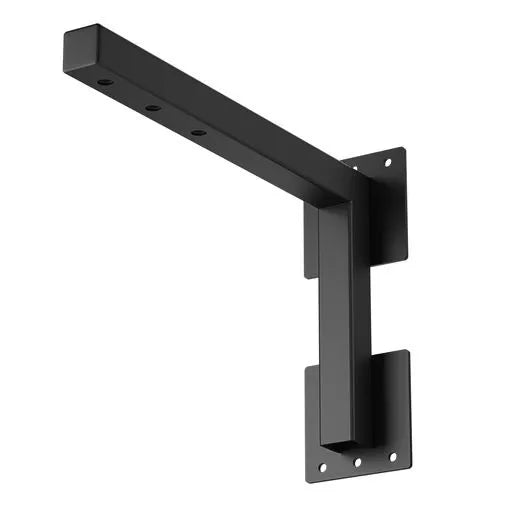

V120 Wall Bracket

Mounts to the wall and features three connection points for attaching the V120 isolation mount.

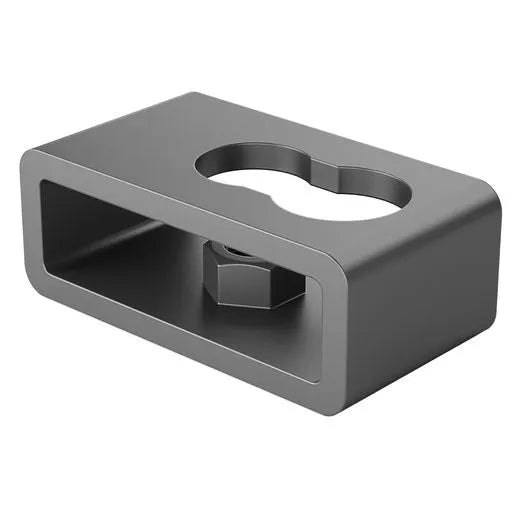

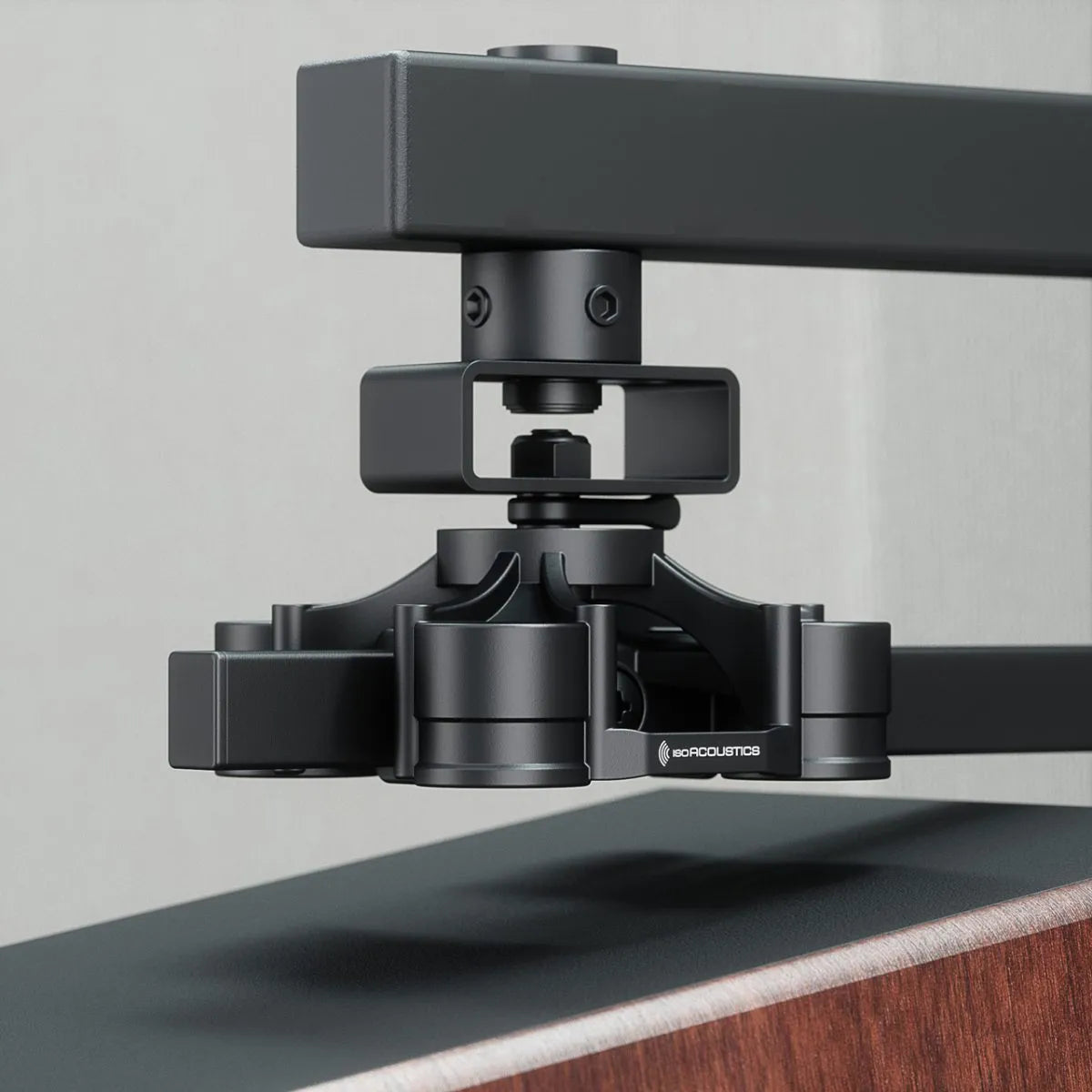

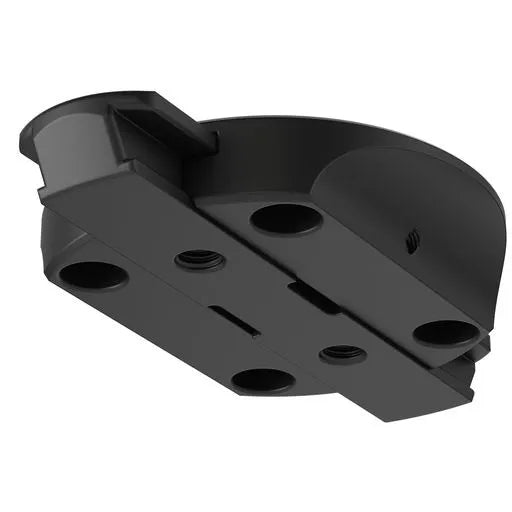

V120 Keyhole Adapter

Adapts the V120 isolation mount to third-party mounting hardware

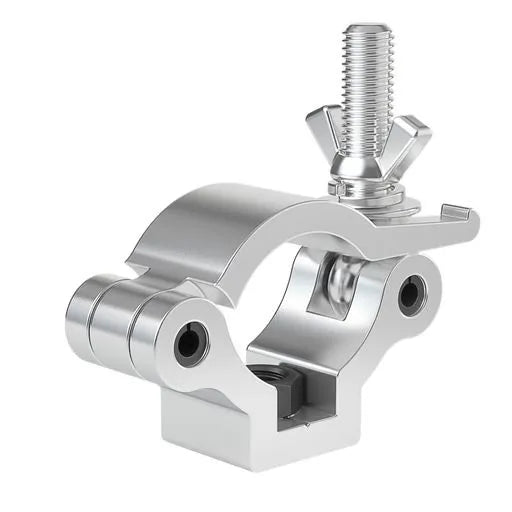

V120 Truss Clamp 1.5″

Attach the V120 isolation mount on 1.5” (38mm) truss.


V120 Truss Clamp 2″

Attach the V120 isolation mount on 2” (50mm) truss.


Mount your speakers to the V120

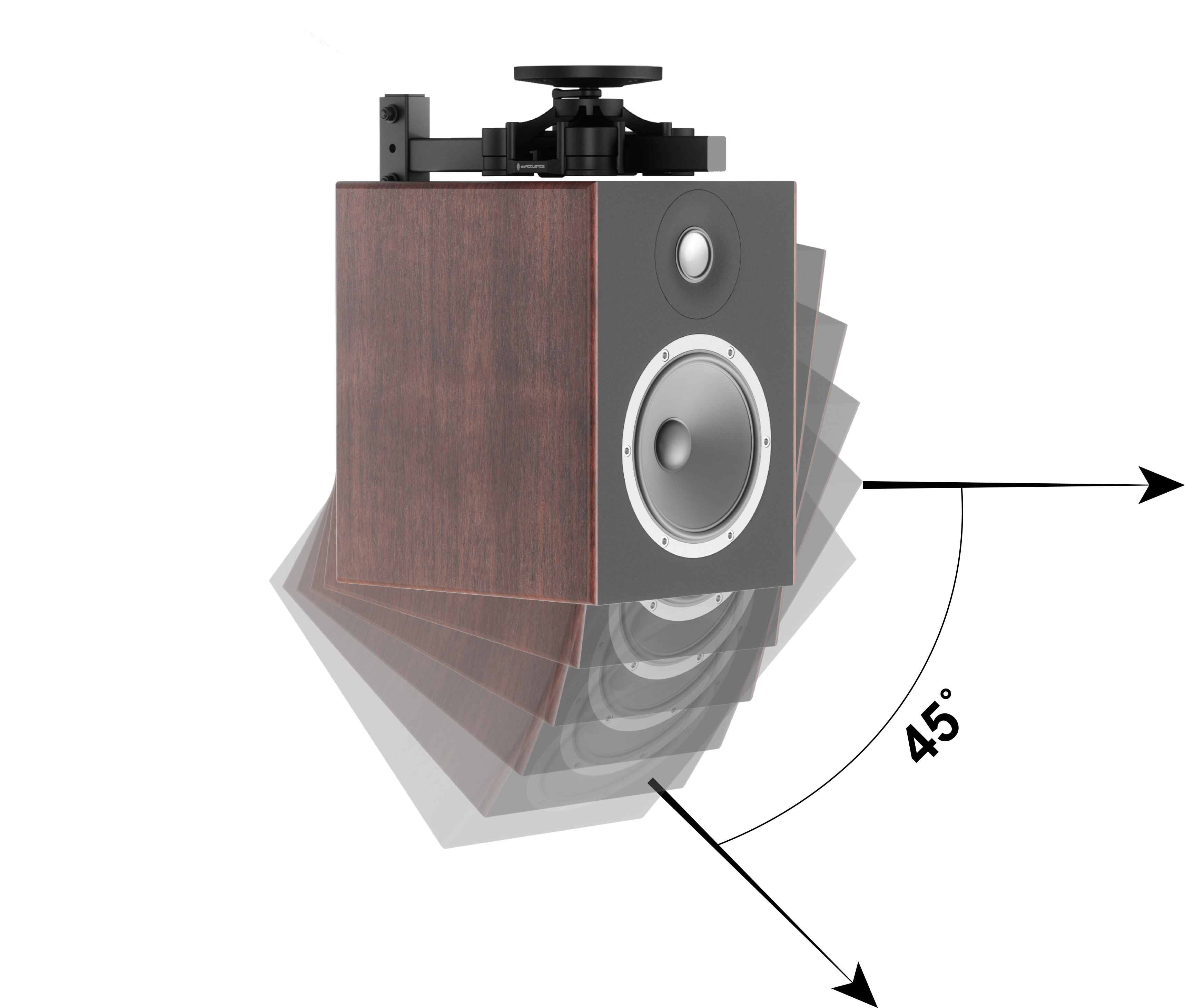

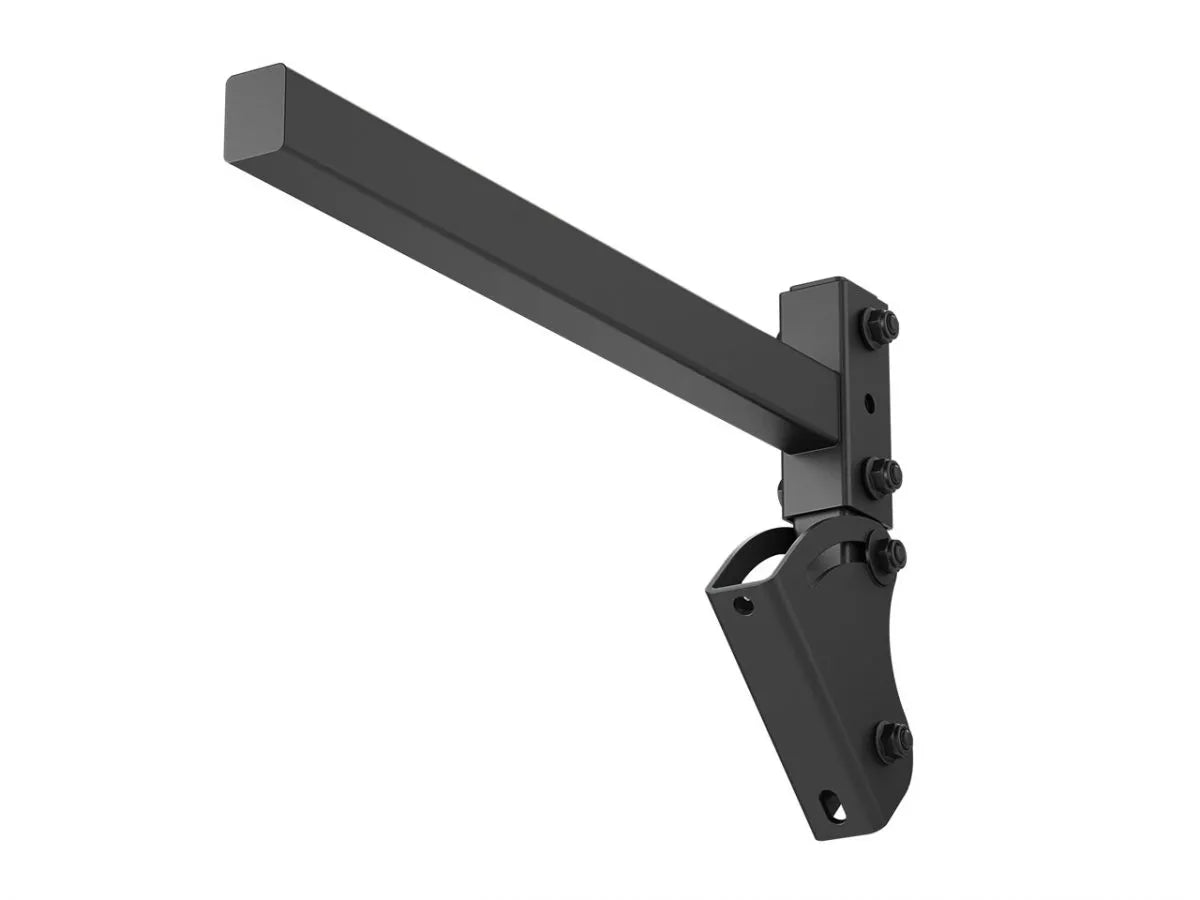

V120 L-Bracket

Mounts speakers to the V120 isolation mount. Positions speakers facing forwards and can be tilted down by 45 degrees. Adjustable height.

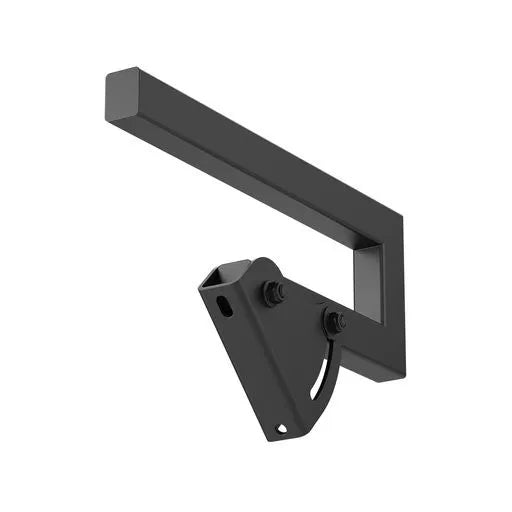

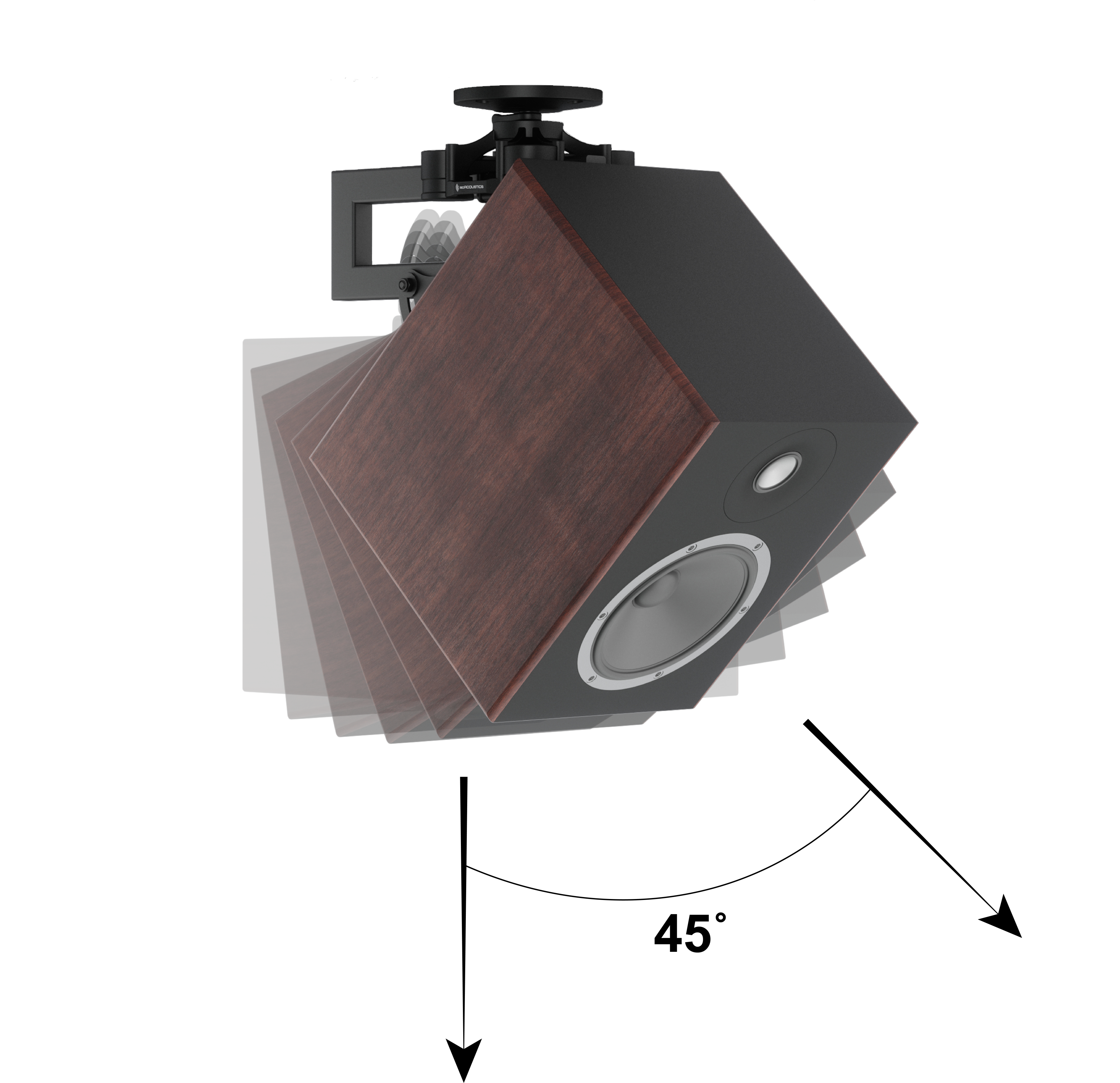

V120 C-Bracket

Mounts speakers to the V120 isolation mount. Positions speakers facing downwards and can be tilted upwards by 45 degrees.

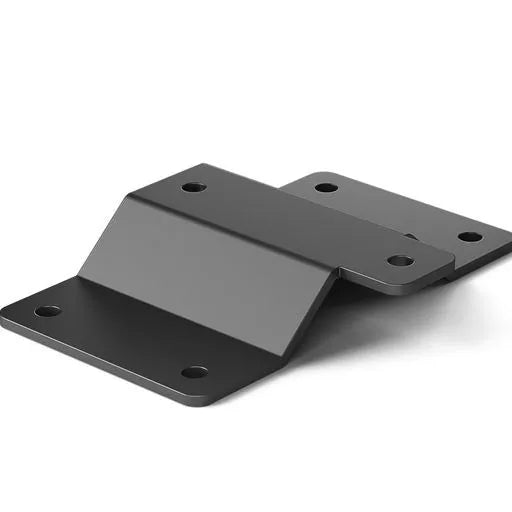

V120 U-Bracket Adapter

Bolts to the bottom of the V120 Mount and connects to speakers mounted on U brackets.


Speaker mounting hole adapters

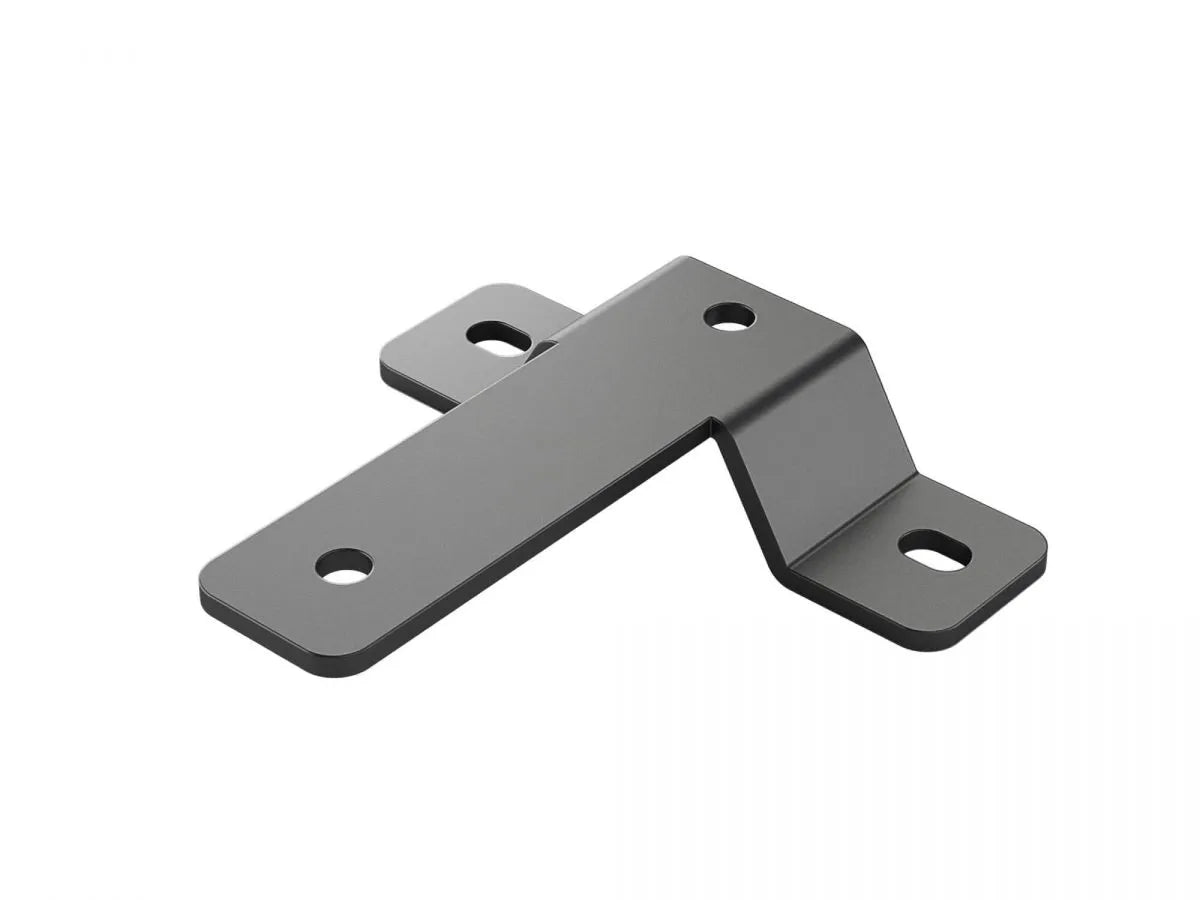

V120 T-Adapter

Attaches your speaker to the V120 L-Bracket or C-Bracket with horizontal mounting holes between 2 ¾” to 3” (70-76.2mm) apart.


V120 107×50 Adapter

Attaches your speaker to the V120 L-Bracket or C-Bracket with four mounting holes that are positioned 4 ¼”W x 2”H (107.9 x 50.8mm).

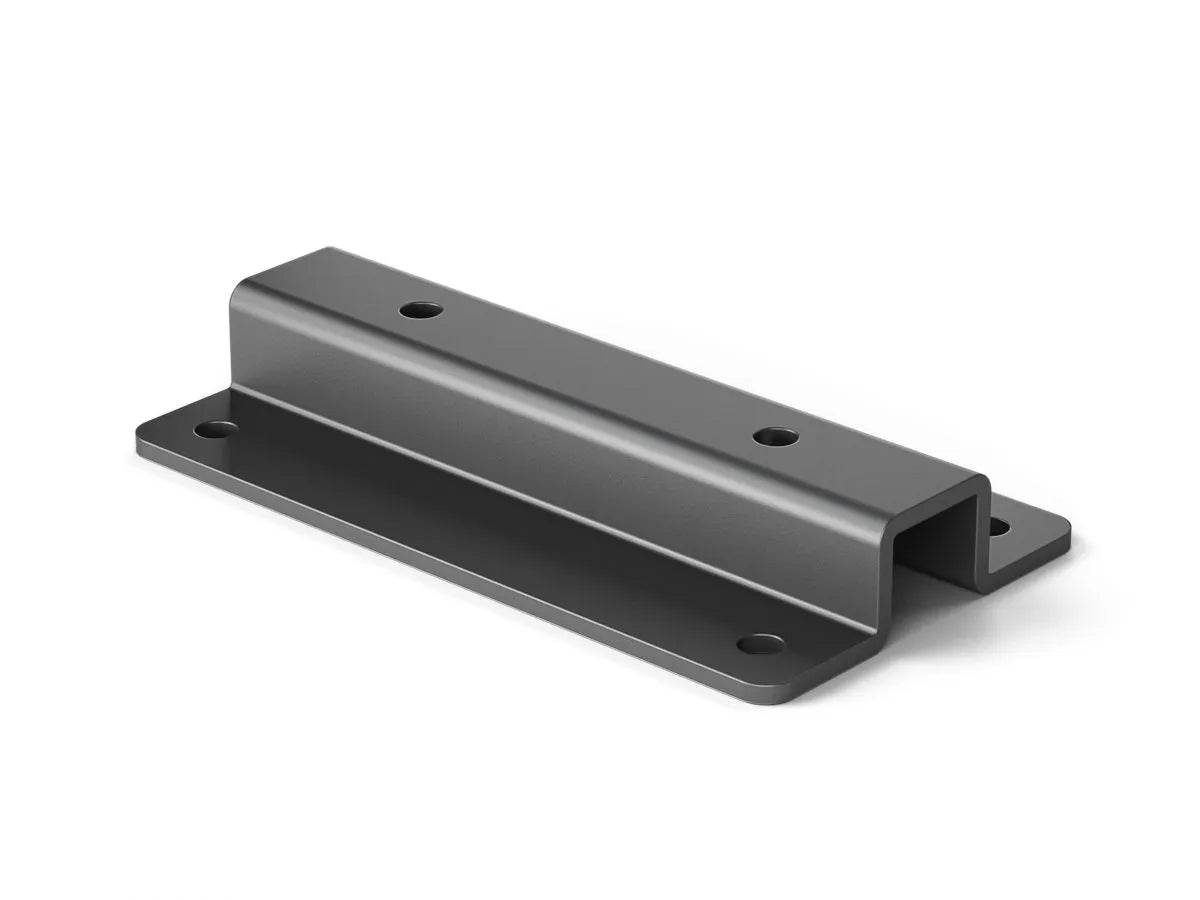

V120 50×107 Adapter

Attaches your speaker to the V120 L-Bracket or C-Bracket with four mounting holes that are positioned 2” W x 4 ¼” H (50.8 x 107.9mm).
