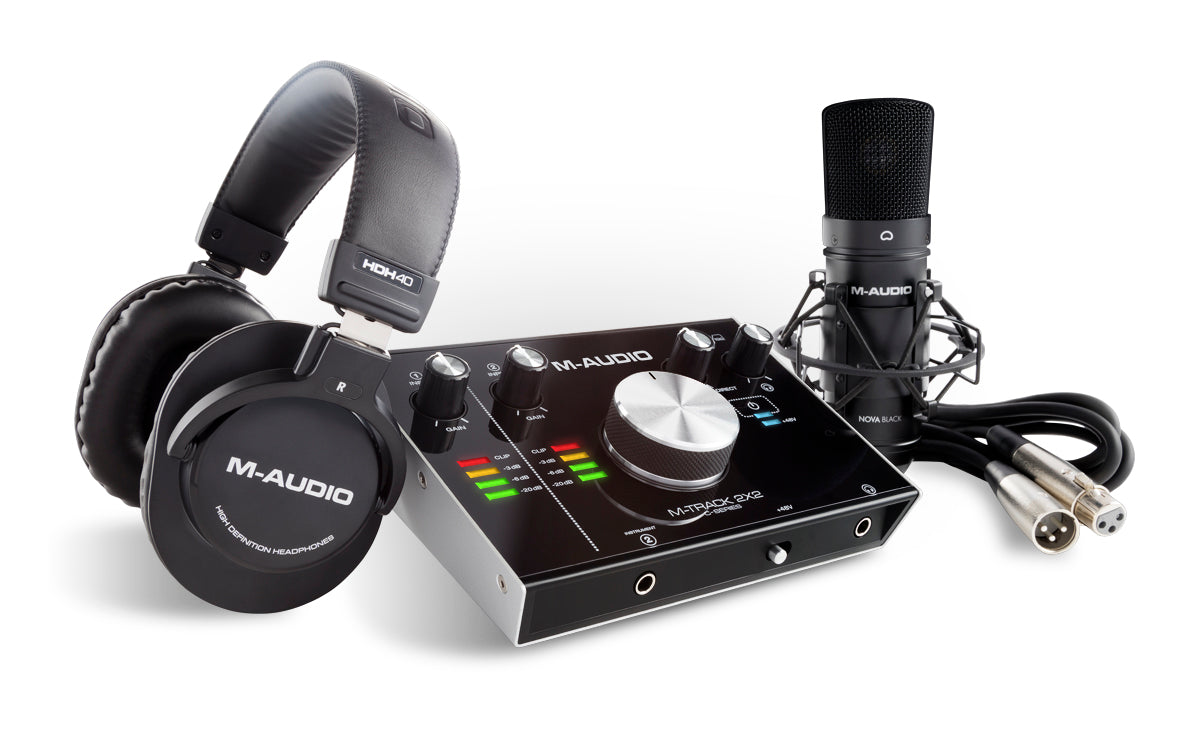

M-Audio M-Track 2X2 Vocal Studio Pro

More Than Just an Interface

This is the creative center of your recording setup: simple-to-use, style-infused M-Track 2X2 C-Series audio interface is the perfect tool to record and produce natural-sounding 24-bit/192kHz studio-quality recordings. Combining one XLR+¼” balanced combo input and an all-new dedicated ¼” instrument input, the M-Track C-Series 2X2 enables you to record two channels simultaneously. The versatility of a combo input accommodates any source audio with a microphone or line-level output while a tailor-made gain and impedance stage on the conveniently located instrument input guarantees a clean, accurate guitar or bass DI signal.

Fusing an elegant pro-grade metal chassis, USB & USC-C connection cables, all-new transparent low-noise Crystal pre-amps and pristine A/D converters that deliver the highest audio performance in their class, the M-Track 2X2 provides all the tools you need to capture that initial idea and transform it into a finished masterpiece with ease. Take your music to the next level and start recording now!
Professional Recording—Done!

Studio-grade recording demands the right tools for the job. M-Audio’s Nova Black large-diaphragm condenser microphone is perfect for podcasting applications or capturing high-quality audio from vocalists, instruments, percussion and more

At the heart of the Nova Black microphone is an 18mm pure aluminum condenser capsule with a directional cardioid polar pattern. This delivers wide range frequency response (20–20kHz), high sensitivity (-38dB, 0dB = 1V/Pa @ 1kHz)) and accurate transient response, resulting in a microphone that captures even the most subtle nuances with ease, with minimal interference from unwanted ambient noise.

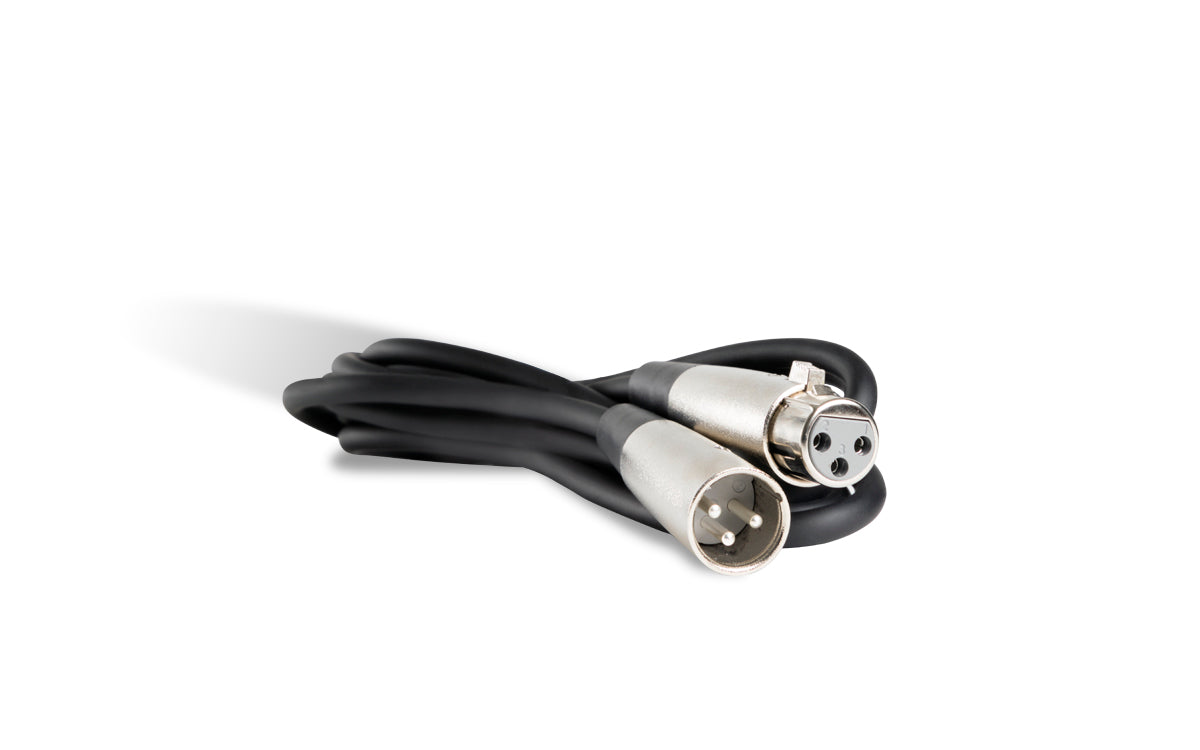

With the Nova Black condenser microphone, complicated setups are a thing of the past. Thanks to an included windscreen, a purpose-designed shock-mount for mounting to a traditional mic stand and an XLR cable, everything you need to get connected and start recording is included.
Hear Every Detail

Professional recording demands uncompromised accuracy when it comes to monitoring. M-Audio’s HDH40 headphones combine premium transducer elements with a durable, rugged design to deliver superb sound reproduction and the outstanding acoustic isolation required in professional recording and monitoring environments. Long sessions are no problem! The plush padding reduces fatigue during extended use, and the over-the-ear design ensures that the HDH40 stays secured while you’re wearing them. With the HDH40, you can concentrate on what’s important—your production!.

FEATURES

Technical Specs

Mic Input 1 (balanced XLR)
Frequency Response     20 Hz – 20 kHz (+0.1 dB)
Dynamic Range     104 dB (A-weighted)
Signal-to-Noise Ratio     104 dB (+1.0 dBu, A-weighted)
THD+N     0.003%
Preamp EIN     -128 dBu (max gain, 150 Ω source, A-weighted)
Max Input Level     +1.5 dBu
Gain Range     55 dB

Line Input 1 (balanced 1/4" [6.35 mm] TRS)
Frequency Response     20 Hz – 20 kHz (+0.05 dB)
Signal-to-Noise Ratio     101 dB (1 kHz, +4 dBu, A-weighted)
THD+N     0.003%
Max Input Level     16 dBu
Gain Range     55 dB

Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)
Frequency Response     20 Hz – 20 kHz (+0.05 dB)
Dynamic Range     100 dB (A-weighted)
Signal-to-Noise Ratio     102 dB (+ 4 dBu, A-weighted)
THD+N     0.004%
Max Input Level     6 dBu
Input Impedance     1 MΩ
Gain Range     24 dB

Main Outputs, L and R (balanced, differential 1/4" [6.35 mm] TRS)
Frequency Response     20 Hz – 20 kHz (+0.06 dB)
Dynamic Range / Signal-to-Noise Ratio     102 dB (A-weighted)
THD+N     0.005%
Max Output Level     +7 dBu (1 kHz, -1 dBFS)
Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS)
THD+N     0.005%
Output Impedance     10 Ω
General
Power     USB-bus-powered
Dimensions (width x depth x height)     6.0” x 2.8” x 7.8” (15.2 cm x 7.1cm x 19.8 cm)
NOVA Black Microphone
Type     Back Electret condenser microphone
Element     18 mm pure aluminum diaphragm capsule
Polar Pattern     Cardioid
Frequency Response     20 Hz – 20 kHz
Sensitivity     -38 dB (0 dB = 1 V/Pa @ 1 kHz)
Rated Impedance     200Ω
Phantom Power Required     +48 V
S/N Ratio     77 dB
Current Consumption     3 mA
HDH40 Headphones
Acoustic Design     Dynamic, Closed
Driver     40 mm, neodymium
Frequency Response     15 Hz – 22 kHz
Sensitivity     95 dB ±3 dB
Rated Impedance     32Ω
Earpad     Leatherette
Cable Length     9.8 ft. / 3 m
