Gibbon 10 – active subwoofer for the Gibbon series
Monkey Banana Gibbon 10 is an active subwoofer for applications in home studios and professional recording studios. It is perfectly matched to the Gibbon series and offers significant downward extension to the low-end frequency range. The Gibbon 10 is also the ideal deep bass support for DJ-monitoring. As the crossover frequency is adjustable, the subwoofer can be combined perfectly with all Gibbon models. The subwoofer can be used in professional studios and also in large living rooms.
The application fields for the Gibbon 10 are extremely broad. The subwoofer comes with a 10” woofer and hefty 300 watts of amplification power. The crossover is flexibly adjustable between 50 and 130 Hz.
| Woofer: | 10-inch black Glass-Composite Cone |
| Frequency response: | 20Hz - 200Hz |
| Crossover frequency: | 40Hz - 120Hz adjustable |
| Amplifier Power: | 300W |
| S/N Ratio (A weighted): | >95dB |
| THD + N @ Rated Power: | 0.08% |

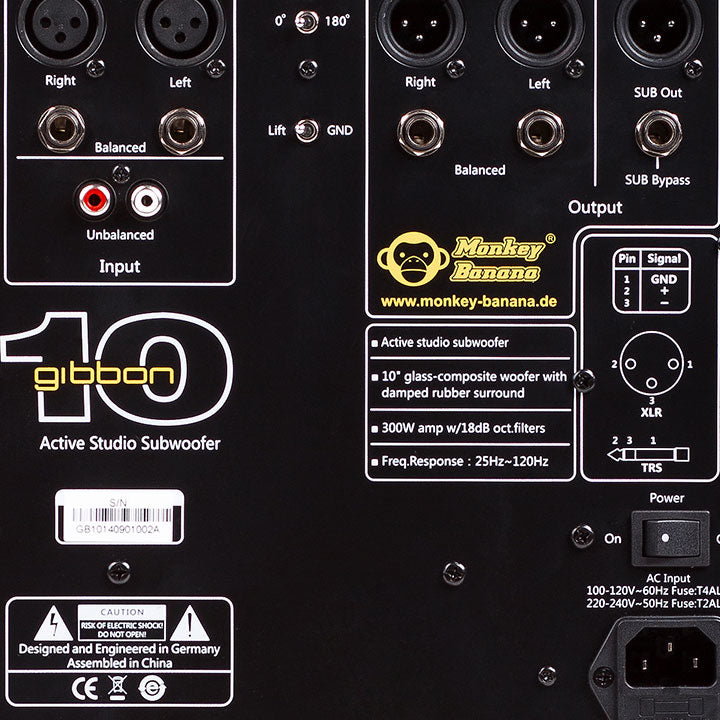

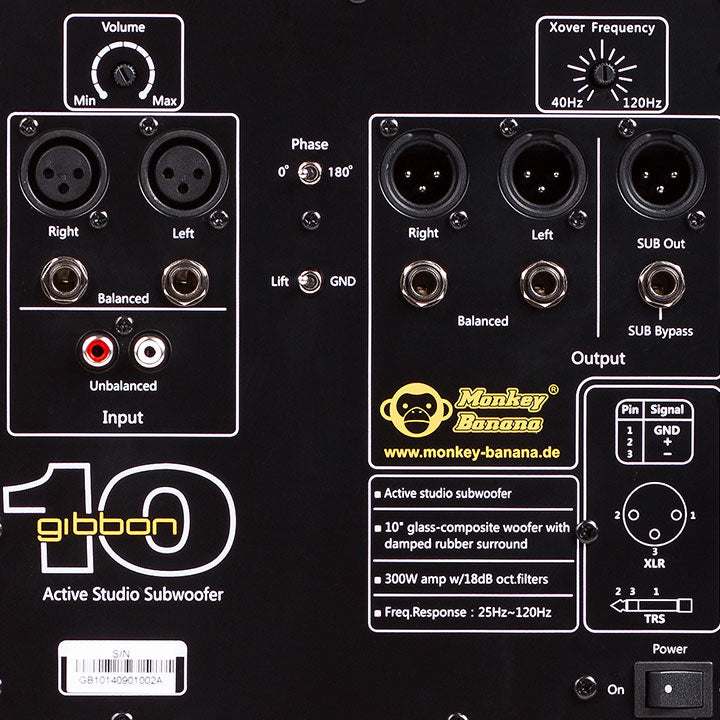

| Inputs: | 2x XLR, 2x TRS, 2x RCA Connectors |
| Outputs: | 2x XLR, 2x TRS, 1x XLR balanced (Sub out) Connectors |
| Input Impedance: | 20 kOhm balanced, 10 kOhm unbalanced |
| Phase reverse: | 0 / 180° - switch |
| Ground Lift switch: | On / Off |
| Bypass Footswitch: | On / Off |
| Available colors: | Red, Black |
| Net weight: | 17.6kg / 38.7lb |
| Net Dimensions: | L385 x W340 x H390 mm L15.16 x W13.39 x H15.35 in |
