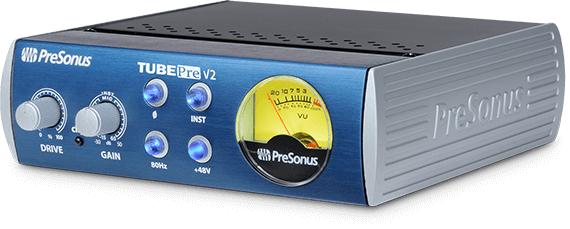

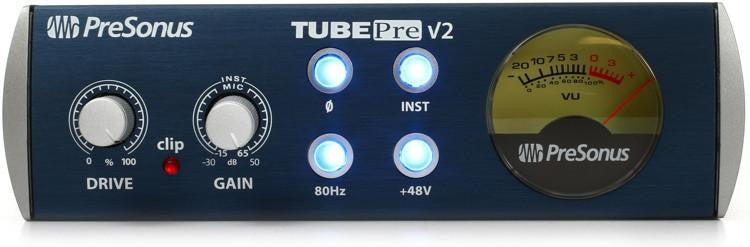

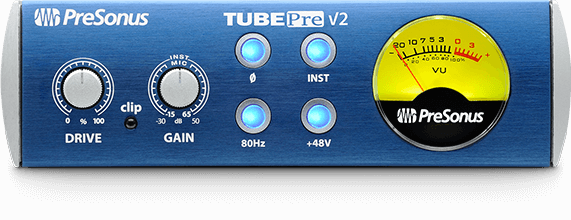

PreSonus TubePre V2

A versatile preamp with impressive dynamic range and detail.

Compact and affordable, the ever-popular TubePre V2 professional tube preamplifier employs our popular XMAX Class A solid-state preamp, followed in the signal path by a 12AX7 vacuum-tube stage. A dual-servo (no capacitors) gain stage lets you boost the signal to smoking hot levels without significantly increasing noise. Discrete components and high-voltage operation offer dynamic range and detail not found in other single-channel tube preamps in its class. Built tough enough for serious gigging, the TubePre V2 is a great choice for guitars and microphones alike.
From gentle warmth to total fuzz with the twist of a knob.

XMAX microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound garnering them rave reviews from users and the media alike. The 12AX7 vacuum tube that follows the XMAX in the TubePre V2 was hand-selected and carefully tested for electrical conformity and freedom from microphonics. Twist the Drive saturation control to add the “color” that only a hand-selected 12AX7 can deliver — from gentle warmth to total fuzz.​
A versatile tool that’s built to travel.

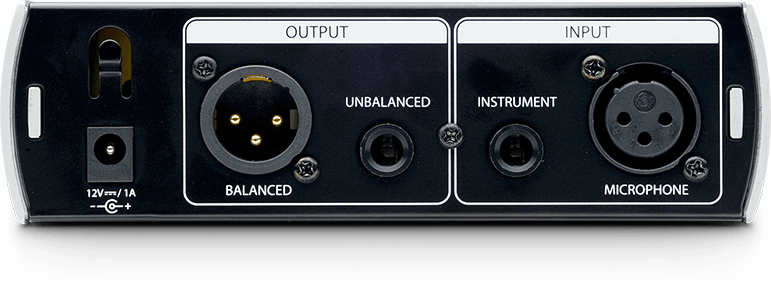

Housed in a rugged case that is built to travel, the TubePre V2 rear panel sports separate unbalanced, ¼” instrument and balanced, XLR mic inputs and unbalanced ¼” and balanced XLR line outputs. Use it as a straight-up tube preamp or a dynamite direct box (DI) for guitars and basses. We’ve provided all of the extras you need, including a highpass filter, phantom power, polarity reverse, and a backlit VU meter. Yet with all its features, it’s small enough to carry almost anywhere—or simply screw-mount it to a standard rack tray.
Great sound, live or in the studio.

Live or in the studio, the TubePre V2 is a great-sounding tool you’ll use on a variety of sources. Add just the right amount of tube distortion to guitars, basses, and mic signals. Go lightly for gentle warmth or go all-out for solid crunch—it’s up to you. So give your ears a treat and test the TubePreV2 at your favorite PreSonus® dealer. Then check out the price— and prepare to be amazed. Because with PreSonus, big sound does not have to cost big money.
Features

XMAX Class A preamp input stage
12AX7 dual-servo vacuum tube output stage
Input Gain control
48V phantom power
80 Hz high-pass filter
-20 dB pad
Instrument input select
Polarity-reverse switch
Backlit VU meter
Clip LED

Input/Output

1 unbalanced ¼” instrument input
1 balanced XLR mic input
1 unbalanced ¼” line output
1 balanced XLR line output

Physical

Compact 1/3U rack-mount chassis
Technical Specifications

Mic Input

• Connector Type XLR, female, balanced
• EIN -131 dB, 20 kHz BW, max gain, Rs=40Ω, A-wtd -128 dB, 20 kHz BW, max gain, Rs=40Ω, unwtd
• Frequency Response 20 Hz – 20 kHz, -0.3 dB, +4 dBu, unity gain 5 Hz - 120 kHz, -3 dB, +4 dBu, unity gain
• THD+N 0.01%, -10 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd
• Dynamic Range 115 dB, 1 kHz, unity gain, 20 kHz BW, A-wtd 107 dB, 1kHz, unity gain, 20 kHz BW, unwtd
• Input Impedance 1.3 kΩ
• Phantom Power +48 VDC, 10 mA

Instrument Input

• Connector Type ¼” TS, female, unbalanced
• Input Impedance 1 MΩ

Analog Output

• Connector Types XLR, male, balanced ¼” TS, female, unbalanced
• Maximum Output +20 dBu
• Output Impedance 51Ω

Tube Stage

• Type 12AX7
Power

• External Power Adapter +12 VDC, 1A, center-pin positive
• PSU Barrel Dimensions 5.5 mm O.D., 2.1 mm I.D., 9.5 mm length

Physical

▪ Dimensions 1/3U rack-mountable (screw-mount to standard rack tray, not included)
▪ Height 1.75” (44.45 mm)
▪ Depth 5.5” (139.7 mm)
▪ Width 5.5” (139.7 mm)
▪ Weight 5 lb. (2.27 kg)
▪ External 12 VDC, 1A power supply
