PreSonus Temblor T10

Tight, clean, responsive bass.

The Temblor T10’s glass-composite low-frequency driver delivers tight and responsive bass, thanks to its lightweight and rigid cone. This design also provides lower distortion than other materials, ensuring that the sub-bass reproduction in your monitoring system is as coherent and clear as your full-range monitors.

A perfect fit with your full-range monitors.

Temblor-series subwoofers make integrating a subwoofer into your monitoring setup easy so you can create the flattest possible response. The Temblor T10 provides a continuously variable lowpass filter (50 Hz to 130 Hz), allowing you to create a seamless crossover transition between your full-range studio monitors and subwoofer for the most accurate listening environment possible.

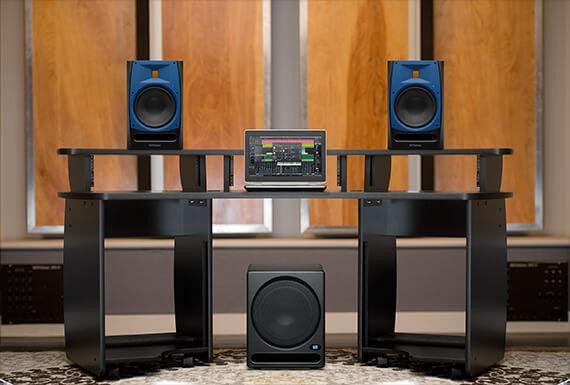

The central hub of your monitoring setup.

Temblor T10 subwoofers provide the connections and controls necessary to act as the central hub for a basic monitoring setup. A switchable highpass filter on the full-range outputs helps to avoid frequency cancellation and reinforcement in the subwoofer’s upper range. A polarity invert ensures your system is in phase.

The Temblor T10 also features a momentary footswitch (included), making it easy to compare your mix with or without sub-bass frequencies and ensure it will sound good on a wide variety of systems.

Features

Main components

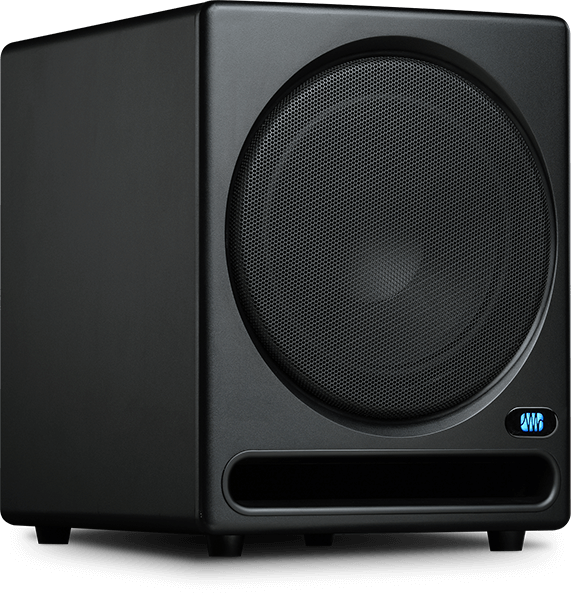

• 10-inch, front-firing, glass-composite low-frequency transducer
• Front-firing, bass-reflex acoustic port

Controls and filters

• Input gain control (-30 dB to +6 dB, continuously variable)
• Continuously variable lowpass filter (50 Hz to 130 Hz)
• Built-in crossover
• Switchable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Temblor outputs to the main monitors
• Momentary footswitch (included) bypasses the subwoofer, highpass filter, and Sub Out
• Polarity invert
• Ground-lift switch

Power and safety

• 250 watt, Class AB amplification
• Internal damping and heat sink
• Integrated rubber feet for stable placement

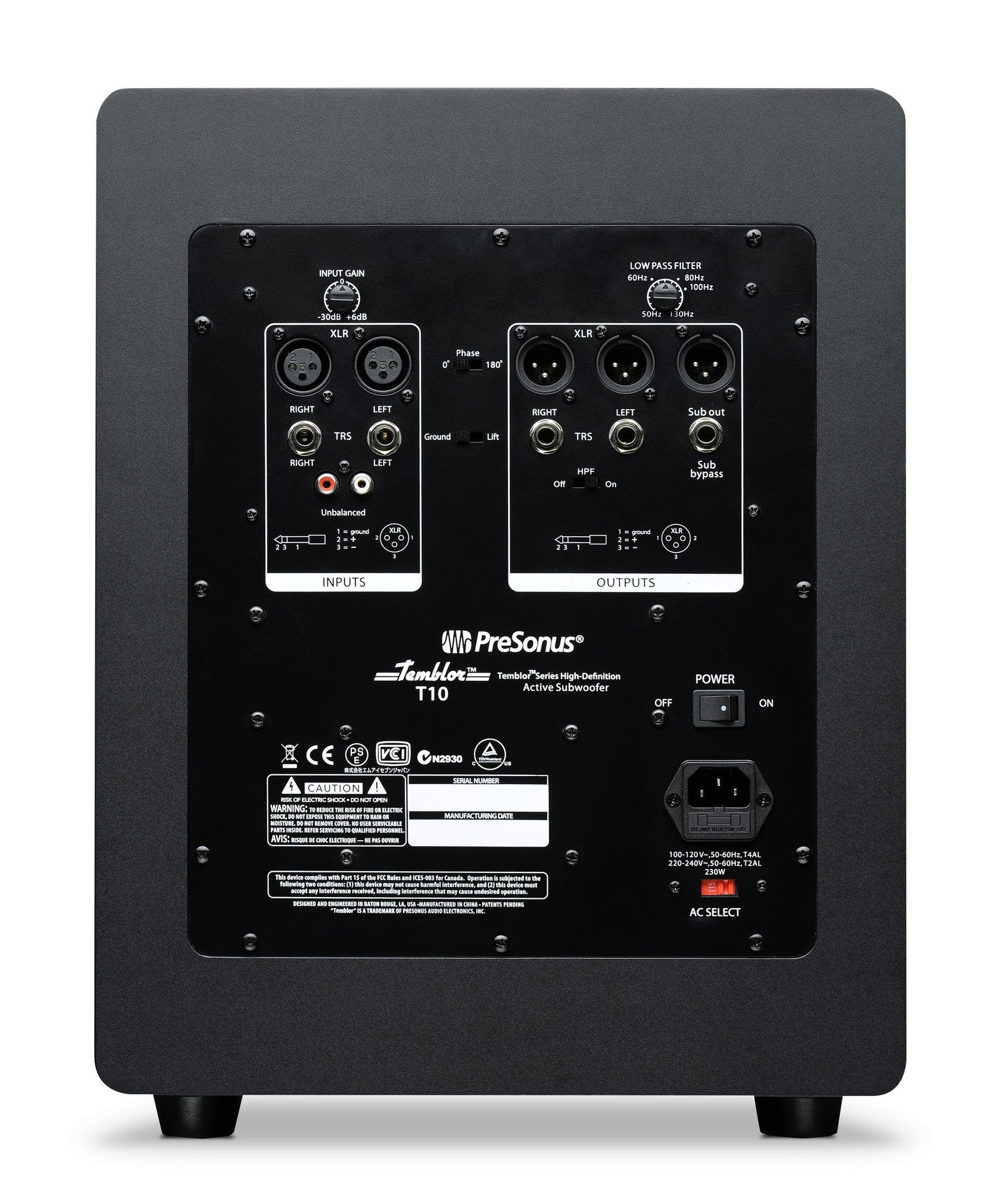

Inputs and outputs

• Left and right, balanced XLR and ¼” TRS and unbalanced RCA main inputs
• Left and right balanced XLR and ¼” TRS outputs
• XLR subwoofer output for connecting a second Temblor^® T10

  Technical Specifications

Inputs
• 2- Balanced XLR
• 2- Balanced ¼” TRS
• 2- Unbalanced RCA

Outputs
• 2- Balanced XLR (full range with 80 Hz HPF option)
• 2- Balanced ¼” TRS (full range with 80 Hz HPF option)
• 1- Balanced XLR (Sub Out)

Performance
• Frequency Response 20 Hz – 200 Hz
• Low Pass Filter Frequency 50 – 130 Hz (variable)
• Signal-to-Noise Ratio >98 dB (A weighted)
• THD 0.019% @ power <160W
• Amplifier Power 250W peak, 170W RMS
• Power Consumption 230W
• Amplifier Type Class AB
• Peak SPL at 1m 113 dB
• Woofer 10” glass-composite, front-firing
• Acoustic Port Front-firing bass reflex

User Controls

• Input Gain Range -30 to +6 dB
• Polarity Switch 0° or 180°
• Low Pass Filter Control 50 Hz to 130 Hz
• Ground Lift Switch On/Off
• High Pass Filter Switch On/Off
• Bypass Footswitch On/Off

Protection

• RF interference
• Output-current limiting
• Over-temperature
• Turn-on/off transient
• Subsonic filter
• External mains fuse

Power
• 100-120V ~50/60 Hz or 220-240V ~50/60 Hz

Cabinet
• Vinyl-laminated MDF

Physical
• Width 12.6” (320 mm)
• Depth 15.75” (400 mm)
• Height 15.75” (400 mm)
• Weight 39.46 lbs (17.9 kg)
