Main Features
The DiGiGrid MGO interface gives you the ability to connect any optical MADI-enabled device to Waves SoundGrid.
Optical MADI-to-SoundGrid Interface
LC connectors
Up to 128 channels
Record to two computers simultaneously
Super low-latency: 0.8 milliseconds
Connect with one Ethernet cable (Cat 5e/Cat 6)
Run hundreds of real-time plugins
Optional single-mode transceiver available
ASIO & Core Audio compliant
With a DiGiGrid MGR MADI-to-SoundGrid interface, high channel count recording and low latency processing is only an Ethernet cable away.
Expanded Details
- Setup
- Hardware
DiGiGrid MGO:
In its most basic mode, connect the MGO straight to your laptop or desktop: You can now record up to 128 channels through your computer’s 1GB Ethernet port, with simultaneous playback of 128 channels.
Add a SoundGrid DSP server and SWI plus Waves MultiRack SoundGrid host application, and now any MADI-compatible live or broadcast console has instant access to real-time low-latency processing.
Does your application demand a higher level of audio quality? A simple configuration change switches the unit over to 96kHz, with 64 channels of recording and 64 channels of simultaneous playback.
And if longer distance optical fiber cable runs are required, simply upgrade either or both of the MGO’s standard multimode transceivers to optional single mode transceivers.
Specifications

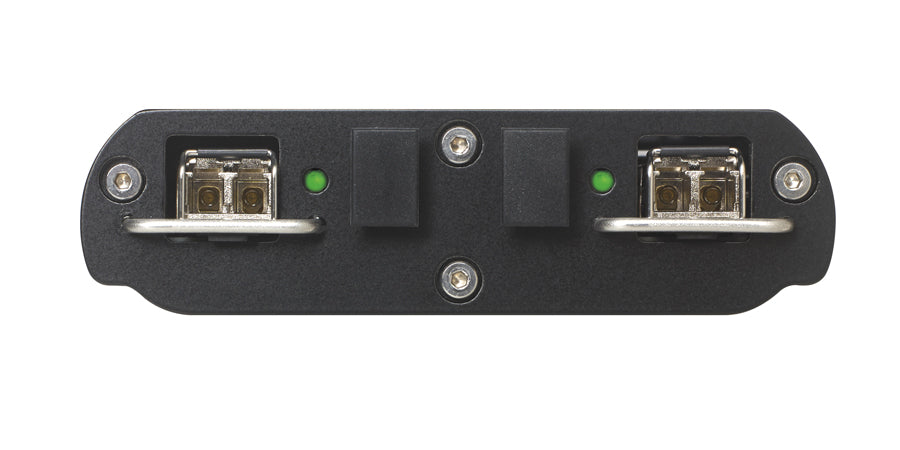

- MADI Optical I/O (SFP)
- Supported sample rates: 44.1, 48, 88.2, 96 kHz
- 112/128 channel I/O @ 48kHz
- 56/64 channel I/O @ 96kHz
- 56 and 64 channel mode support
- Double wire (48k frame) and single wire (96k frame) @ 96kHz support
- Clock synchronization via Word Clock input, MADI (port A), SoundGrid (Sync over Ethernet), Internal
- 1 SoundGrid RJ45 Ethernet port
- Reset switch
- DiGiCo Stage Rack channel 57 support
Weight and Dimensions
| Height | Width | Depth | Weight |
| 148.2mm | 106mm | 29mm | 0.6Kg |
Software
The IOX installer includes the relevant drivers and software for your unit: the SoundGrid ASIO/Core Audio driver, the SoundGrid Studio Application, the eMotion ST mixer, StudioRack, and the IOX Control Panel.
- SoundGrid Studio System Software
The SoundGrid Studio System is the next generation of sound technology. It is a real-time processing and networking platform designed to bring your studio up to light speed. It allows your DAW to offload its plugin processing to a SoundGrid DSP server and enables your devices to communicate with one another and with the devices of the people you work with. The SoundGrid Studio System integrates seamlessly with all DAWs and DiGiGrid (or other SoundGrid-compatible) I/Os, providing endless possibilities for setups of every size—from a single DAW with one DiGiGrid I/O, to an entire network of host computers, I/Os, and SoundGrid DSP servers.
The SoundGrid Studio System Gives You the Power to Do More
- Real-Time Processing – Run hundreds of plugins simultaneously.
- Low-Latency Monitoring – Track and rehearse with full-on plugins in near-zero latency.
- Networking – Connect everything and everyone through a centralized hub.
- Seamless Integration – Connect multiple DAWs using the SoundGrid ASIO/Core Audio driver.
- Open Architecture – Compliant with SoundGrid-compatible Waves and third-party plugins.
SoundGrid Studio System Software Components

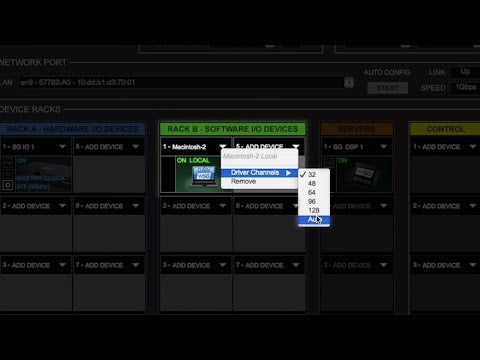

- SoundGrid Studio Application – For managing the SoundGrid network on your host computer.
- eMotion ST Mixer – Low-latency monitoring for tracking and rehearsing.
- StudioRack – For running plugin chains, saving and loading their presets, and offloading their processing to a SoundGrid DSP server.
- SoundGrid ASIO/Core Audio – Connects any DAW to the SoundGrid network as a software I/O.
- MGO Control Panel
- Clock settings: source, sample rate, type, status
- SMUX and Hi-Speed modes available for 96/88.2 kHz operation
- 56/64 channel operation modes
- Save and load presets of unit settings
- Save your settings along with your Waves and SoundGrid host application sessions
