DSPRO StageGrid 1000



DSPRO StageGrid 1000 is a compact I/O device for eMotion LV1 live mixing systems. Use this versatile unit close to your mixing console to add more inputs and outputs at FOH or monitors, or on stage to add more inputs and outputs for stage performers.

With digitally controlled 8 mic/line ins, 4 balanced analog outputs, and an AES/EBU stereo I/O, this 1U rack unit offers the perfect balance between size and functionality, delivering exceptional, no-compromise sound quality and reliability.

The rugged, road-ready StageGrid 1000 is powered by the same proven audio interface as the larger DSPRO StageGrid 4000, making the DSPRO StageGrid family the perfect I/Os for the most demanding live mixing environments.

StageGrid 1000 is fully compatible with Waves’ SoundGrid ecosystem. It interfaces with SoundGrid hosts and network components to make up a modular, scalable audio distribution infrastructure, which can process multichannel audio at ultra-low latency using Waves’ award-winning plugins.
Less

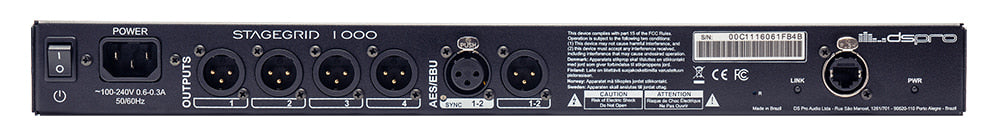

  • Compact I/O device for the eMotion LV1 live mixer
  • Ideal for use at FOH or monitors
  • 8 microphone or line inputs
  • 4 balanced analog outputs on XLR connectors
  • 1 input and 1 output stereo AES / EBU
  • Sampling rates from 44.1 kHz to 96 kHz
  • 2 headphone outputs with volume control
  • SoundGrid Ethernet connection
  • 1U rack mountable unit





  • Setups

In the setup diagram below, on-stage instruments, microphones, and headphones are connected to the StageGrid 4000 and StageGrid 1000 units, which are remotely controlled from the LV1 mixer at front-of-house.

An additional StageGrid 1000 unit is connected at FOH to provide the FOH engineer with headphone outputs and talkback microphone inputs. Incoming audio is processed on a SoundGrid Server and then outputted to stage-monitors, stage headphones, the PA system, and FOH headphones.

DSPRO SG1000 Setup

  1. Host computer running the eMotion LV1 mixer
  2. DSPRO StageGrid 1000 I/O unit
  3. SoundGrid Server (add a second server for processing redundancy)
  4. DS Pro StageGrid 4000 stagebox
  5. SoundGrid-qualified network switch



  • Tech Specs

General



  • 8 Analog mic/line Inputs
  • 4 Analog line outputs
  • 1 Stereo AES / EBU Digital input
  • 1 Stereo AES / EBU Digital output
  • Configurable Sample Rate of 44.1, 48, 88.2 and 96kHz
  • Two headphone outputs
  • A SoundGrid Ethernet port







Analog Inputs



  • Impedance: 2.86 kOhms
  • Gain range: -4 dB to 60 dB
  • Max input level: 28 dBu (-4 dB gain)
  • Dynamic range: 115 dB (-60 dBFS, 20 dB gain, 1 kHz, A-weighted)
  • THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)
  • Equivalent input noise: -128 dBu (60 dB gain, A-weighted, 150 ohms)
  • Frequency response: +/- 0.1 dB (20 Hz to 40 kHz at 96 kHz sampling rate)
  • Phase Shift: <10° at 20 Khz



Analog Outputs



  • Output impedance: 50 ohms
  • Max output Level (0dBFS): 24 dBu
  • Dynamic range: 115 dB (-60 dBFS, 1 kHz, A-weighted)
  • THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)
  • Frequency response: +/- 0.1 dB (20 to 40 kHz at 96 kHz) Phase shift: <5° at 20 Khz



AES/EBU IN/OUT



  • Standard: AES3 (2009)
  • Sample rates: 44.1, 48, 88.2 and 96 kHz
  • Impedance: 110 ohms



Headphones



  • Output Power: 150 mW per channel on 16 ohms
  • Dynamic range: 100 dB



SoundGrid



  • Interface: Gigabit Ethernet
  • Connector: Neutrik EtherCON



Power supply



  • Voltage: 110 or 240 VAC
  • Frequency: 50 Hz or 60 Hz Power: 60 W



Environmental specifications



  • Operating temperature: 0°C to 40°C
  • Relative humidity: Up to 90% non-condensing



Dimensions



  • Height: 44 mm / 1.75 in (1RU)
  • Width: 430 mm / 19.92 in (for 19” rack)
  • Depth: 300 mm / 11.81 in (not including connectors)
  • Weight: 2.89 Kg



SpecSheet
