Add Waves’ Real-Time Processing to Dante™ Networks

features

Bring Waves' powerful, award-winning plugins into your Dante network with the rack-mountable WSG Bridge. Fluent in SoundGrid and Dante, WSG Bridge bidirectionally routes up to 64 channels between Dante and SoundGrid networks for processing, audio interfacing, and much more.

In addition, dedicating a Waves SoundGrid Server to running Waves and 3rd party SoundGrid plugins adds ultra-low latency processing capabilities for up to 64 channels of your Dante network.

  • Bring the award-winning sound of Waves plugins into Dante networks
  • 64 channels of bidirectional audio between Dante and SoundGrid
  • Port for redundant power supply (optional, purchase separately)
  • Supports sample rates from 44.1 kHz to 96 kHz
  • Rugged, 1U rack-mountable enclosure
  • Clock source: SoundGrid/Dante, and synchronization over Ethernet

Support

System I/O

Latency

Typical Dante to WSG or WSG to Dante Latency:*
0.787ms @ 44.1kHz
0.778ms @ 48.0kHz
0.580ms @ 88.2kHz
0.520ms @ 96.0kHz

*For round-trip time, latency is exactly double
**Does not include any A/D or D/A conversion time or plugin processing time

Clock Source

A: Input “A” as clock master (Dante)
B: Input “B” as clock master (WSG)
EXT: Future external clock input (optional future external word-clock I/O card)

Sampling Rate

44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

USB Port

USB 2.0 (for firmware updates and future connectivity)

Card Slots

Each slot can accept an analog or digital input card, output card, or 8-port Mixer network card

HBUS Input

8-pin RJ45 jack (for future expansion)

HBUS Output

8-pin RJ45 jack (for future expansion)

Waves SoundGrid Card

Audio Inputs

64 (8-pin RJ45 jack 1000BaseT Ethernet for WSG audio network)

Audio Outputs

64 (8-pin RJ45 jack 1000BaseT Ethernet for WSG audio network)

Sampling Rates (Supported)

44.1kHz, 48kHz, 88.2kHz, 96kHz

Dante Card

Audio Inputs

64 @ 44.1kHz or 48kHz; 32 @ 88.2kHz or 96kHz (8-pin RJ45 jack 100BaseT or 1000BaseT Ethernet for Dante audio network)

Audio Outputs

64 @ 44.1kHz or 48kHz; 32 @ 88.2kHz or 96kHz

(8-pin RJ45 jack 100BaseT or 1000BaseT Ethernet for Dante audio network)

Sampling Rates (Supported)

44.1kHz, 48kHz, 88.2kHz, 96kHz

Physical

Dimensions

1.75” (44.5 mm) H x 19” (483 mm) W x 8.5” (216 mm) D

Unit Weight

6.3 lb. (2.8 kg)

Mounting

Standard rack mount, 1 RU

Power

Power Requirements

48 VDC, 400mA Main (primary power supply)
48 VDC, 400mA Secondary (redundant power supply)

External Power Supply Requirements

Input Voltage: 100VAC to 240VAC 50/60Hz

Setups

Adding real-time SoundGrid processing to a Dante network

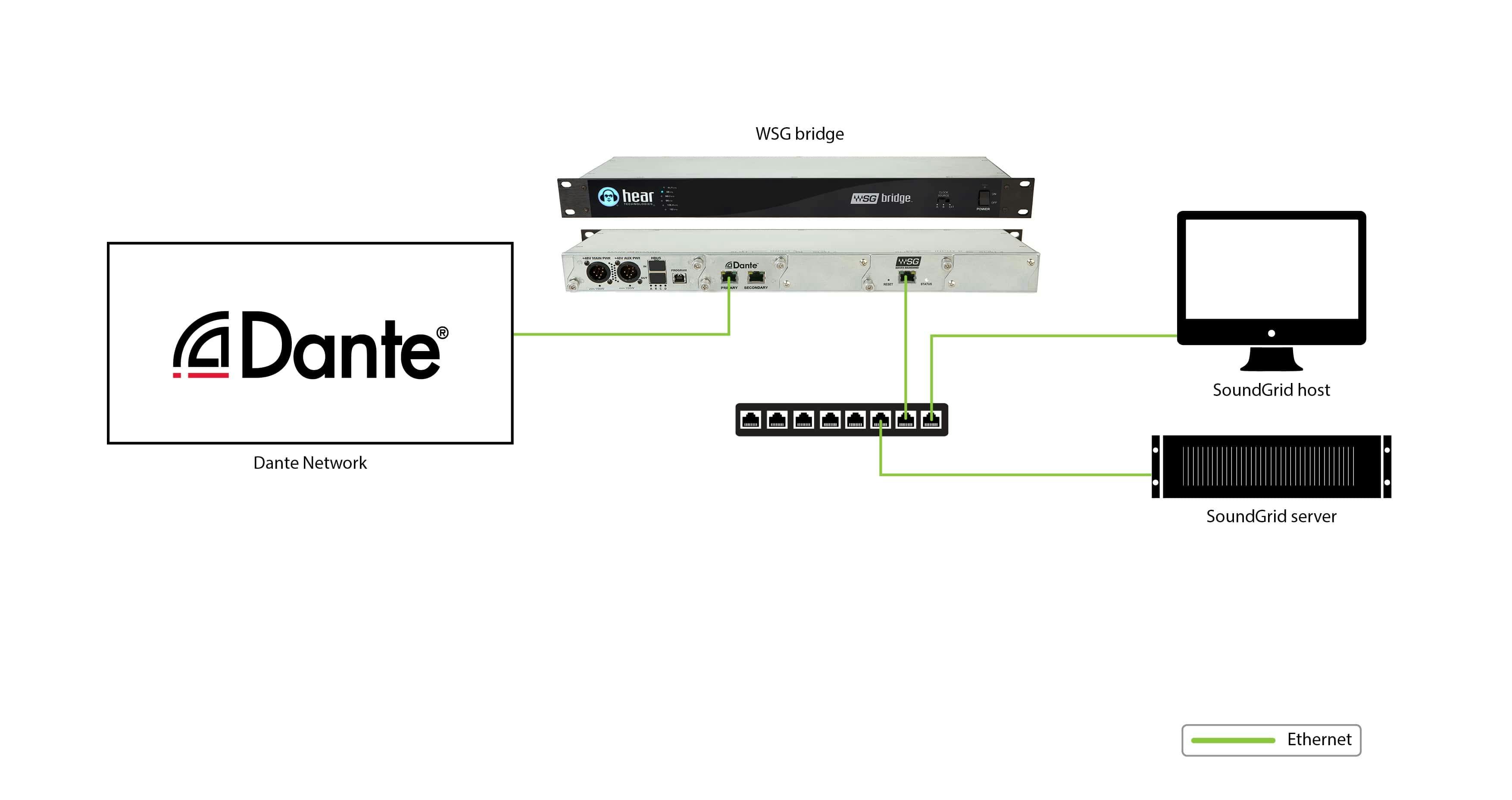

WSG Bridge Impact Combo for Dante

In this setup, audio from a Dante network is routed to the WSG Bridge. The same audio is then routed to the SoundGrid network to be processed through plugins by the SoundGrid server. The processed audio can be routed back to anywhere on the Dante network.


What you need

  1. Hear Technologies WSG Bridge – Dante
  2. SoundGrid host application such as MultiRack SoundGrid
  3. Windows or Mac computer (see system requirements)
  4. SoundGrid DSP server handling plugin processing
  5. SoundGrid-compatible plugins and bundles
  6. SoundGrid-qualified network switch to connect SoundGrid network components
  7. CAT5e/6/7 cables to connect the above components
